IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time.
Call the office for availability prior to placing your order.

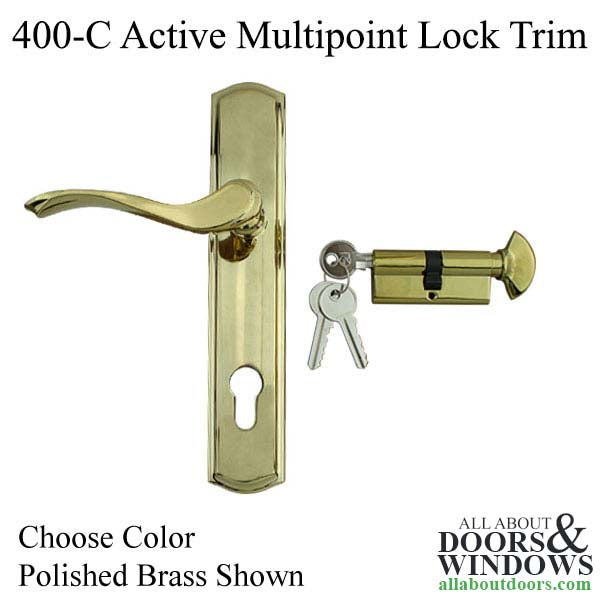

400-C Series multipoint lock trim in polished brass with a Euro cylinder.
Will work with many multipoint locks by Amesbury, as well as most multipoint lock brands.
Handles can be used in the traditional American orientation with the thumbturn above the handle OR the inverted European style.
Easily rekeyed.
Simple installation.
Lever: 400
Plate: C
Color: Satin Nickel
Handing: Left Hand shown (see HANDING INFO below)

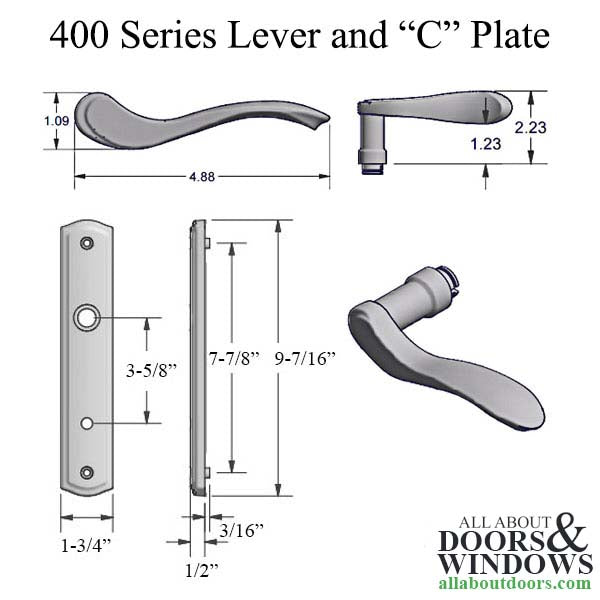

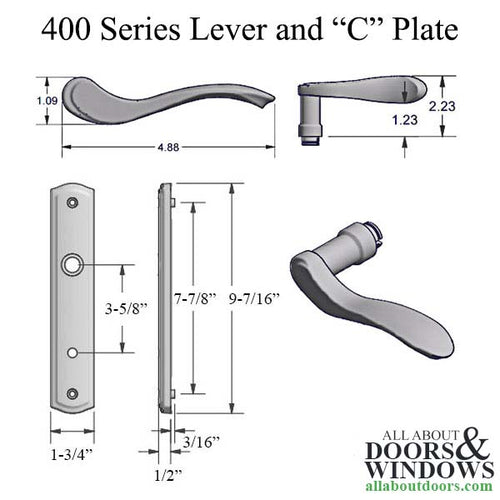

Measurements:
Handle center to cylinder center: 3-5/8 inches
Screw hole centers: 7-7/8 inches
Plate length: 9-7/16 inches
Plate width: 1-3/4 inch
Plate depth: 1/2 inch
HANDING INFO
Handing is determined from the exterior and by which side the hinges are found.
The lever points towards the hinges.
Hinges on left, left hand trim needed.
Hinges on right, right hand trim needed.

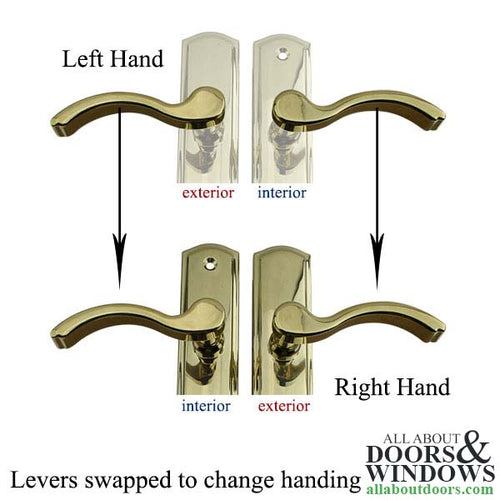

Change Handing: SWAP LEVERS from their initial plates to the opposite plates. (image 3)
1). Remove lever form exterior backplate.
2). Remove lever from interior backplate.
3). Install levers on the opposite backplate they came from.
Please see image 3 for a visual reference.
Change Handle Design: SWAP AND ROTATE LEVERS if (for aesthetic reasons) you prefer the lever to terminate in an upwards curve as opposed to the as-shipped downwards curve :
1). Remove both levers from each backplate
2). ROTATE THE LEVERS so the tips point in the opposite direction they were found in. (image 4)
3). Install both levers on the opposite plate they came from.
Please see image 4 for a visual reference
This will still be the same handing (left hand).
