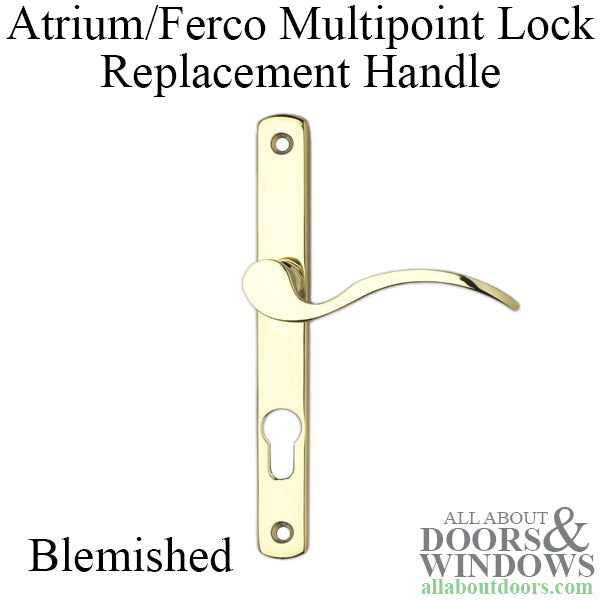

This item is considered blemished and may include but is not limited to slight scuffs, scratches and/or missing components such as screws.
Blemished items are priced accordingly and are sold as is.
No returns, refunds or exchanges.

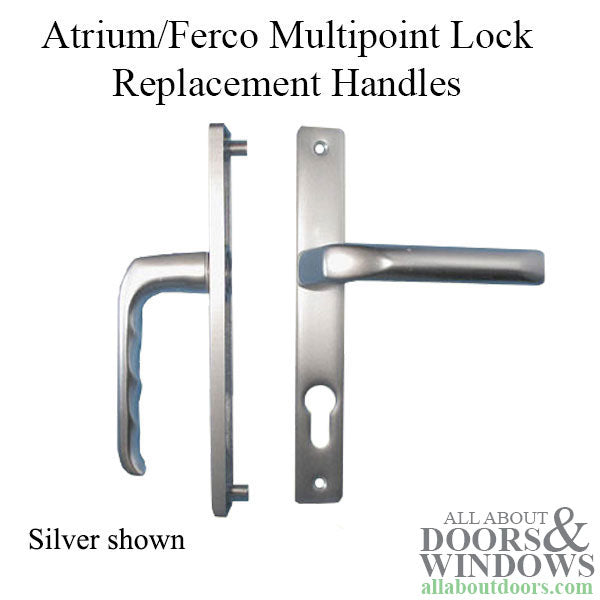

SPECIAL SIZE: Atrium Door lock hardware, Old Style Ferco 528 Multi-Point Lock replacement handles; Aluminum construction.
Specially sized for Atrium swing door using the Ferco 528 lock hardware.
This is a special size.
The Ferco 528 had a special Handle to cylinder spacing of 2-3/4" (70mm), Most locks have a 3-5/8 (92 mm) spacing.
The Old Style 528 used a 5/16 inch (8mm) diameter spindle., the replacement handle uses 1/4 inch (7mm) spindle
If your door lock is the Old Style Atrium Ferco 528 Compare measurements to be sure it will work
Note you may need part number E-91440-00-0-0 to convert the spindle from 7mm to 8mm in your lock hub.

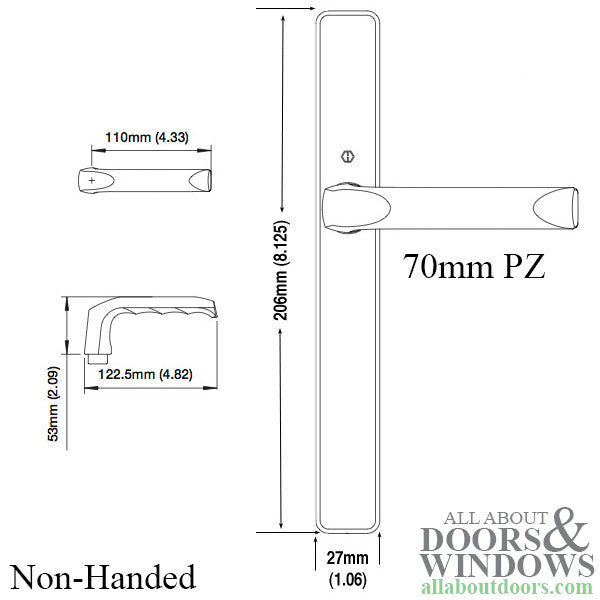

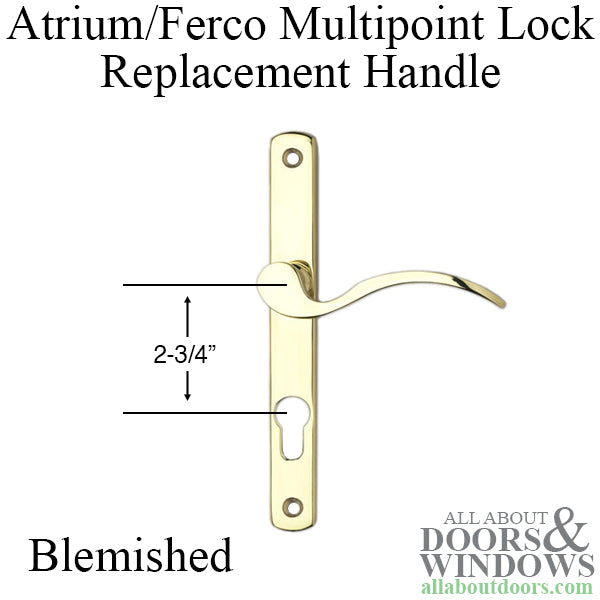

Handle Spacing: 2-3/4 inches (70 mm) center of handle to center of lock cylinder.
Spindle: 9/32 (7 mm) square (not included) See part # 9-26874-56-0-1
Screw Holes: 7-7/8 inch; stud posts/screws hole - center to center
Screws: M5 x 50mm (not included) See part # 40171
Plate Width: 1.06 inches (27mm)
Plate Length: 8.125 inches (206mm)
Plate Thickness: 5/16 inch (8mm)
Material: Aluminum
Available Colors:
Gold
Installation screws spaced at 7-1/8 inch.
Uses M5 x 0.7 x 50 mm metric screw for 1-3/4 inch (45 mm) thick door; screws not Included.
Keyed Cylinder NOT included - but can be ordered separately
Uses cylinder #413232030
Priced and sold as inside and outside trim, as shown
Article:
General Information on Atrium Doors: Guide to Atrium Doors
