This item is considered blemished and may include but is not limited to slight scuffs, scratches and/or missing components such as screws.
Blemished items are priced accordingly and are sold as is.
No returns, refunds or exchanges.

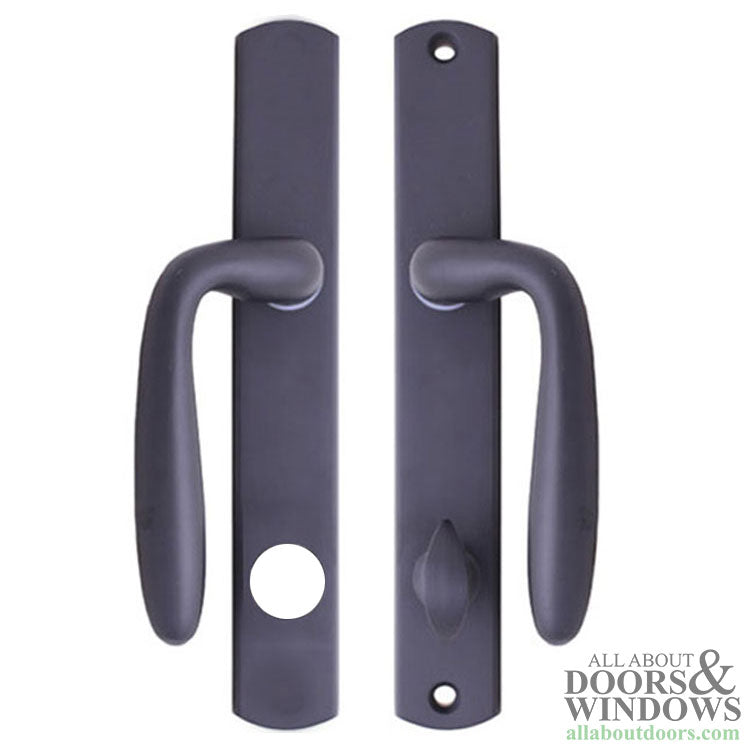

Botticelli Keyed Entry for Winkhaus Sliding Door Hardware Trim

Winkhaus Botticelli sliding patio door handle trim with Keyed function.

Keyed: Yes, Full cylinder with 2 keys
Function: Entry, Thumb turn inside,  key outside
Style: Botticelli

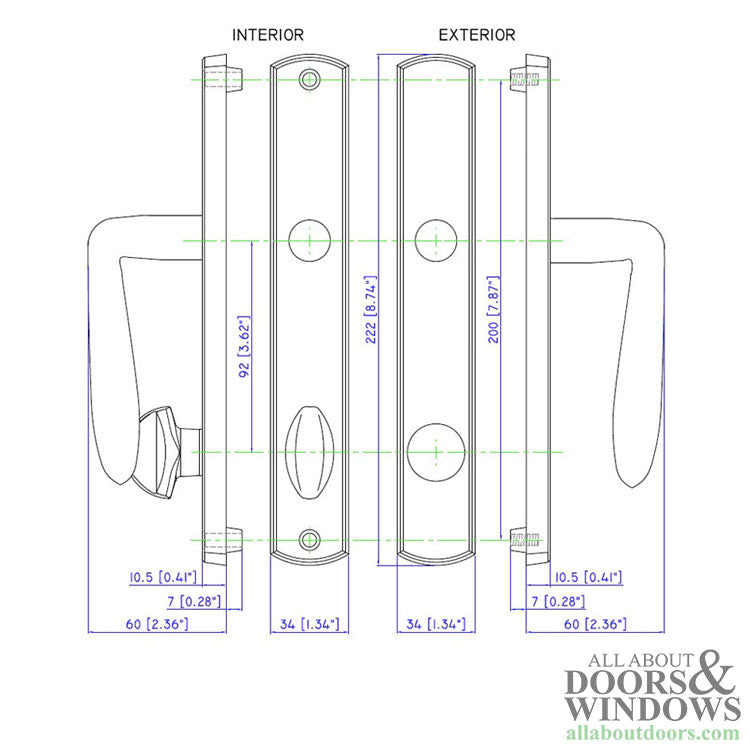

Mounting screw holes: 7-7/8 inch
Handing: Yes, can be rehanded by removing the clip and changing levers.
NOTE: The use of external ring plies to remove clip makes it easy.

Door Thickness Options:
1-3/4 inch (45mm)
2-1/4" (57mm)

Colors / Finish Options: Oil Rubbed Brass, PVD Bronze, Flat Black
Antique Brass, PVD Bright Brass, PVD Satin Nickel

Note: The Winkhaus Slider Door Lock will only function with the Winkhaus 90° cylinder.

3 Functions:
1. Keyed Entry
2. Non-Keyed Patio, Thumb turn inside, no key outside
3. Inactive / Dummy Pull

Related Winkhaus Hardware:
15122 - Mortise Lock, 2 hook  28 mm Backset
413020360 - Keyed Cylinder, 1-3/4"  thick door
413530360 - Keyed Cylinder, 2-1/4"  thick door
