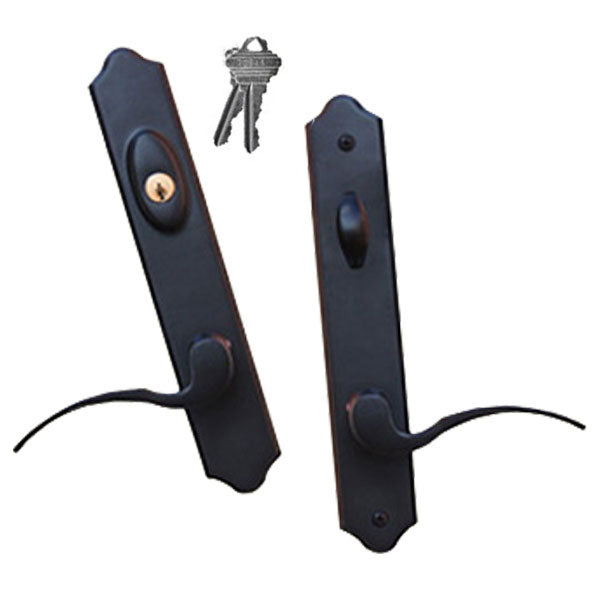

True Elegance 8" Arch Active Keyed Handle Hardware Hinged Door

Part Number:395001
COLOR: - Oil Rubbed Bronze
Please note, this product has been discontinued.

Ashland True Elegance 8 Inch Non-Handed Active Keyed Handle Hardware for Active Hinged Door.
This Handle Set Will work with Ashland, Milgard, Marvin, Jeldwen, Caradco, Cantera, Delta, Pozzi, PGT and others with the same configuration.

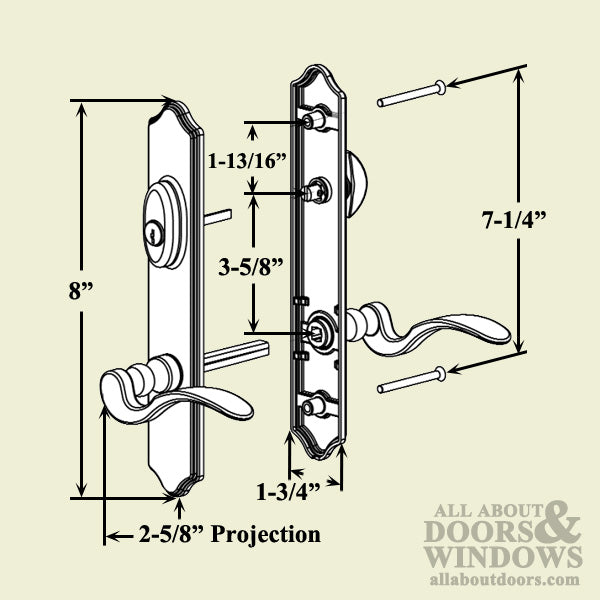

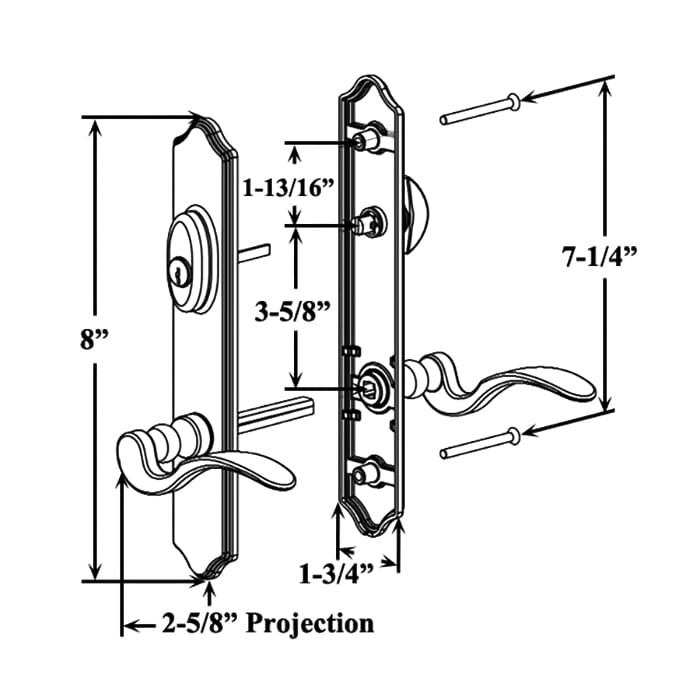

Plate Height: 8-1/8 Inch
Plate Width: 1-21/32 Inch
Screw Hole Center: 7-1/4 Inch

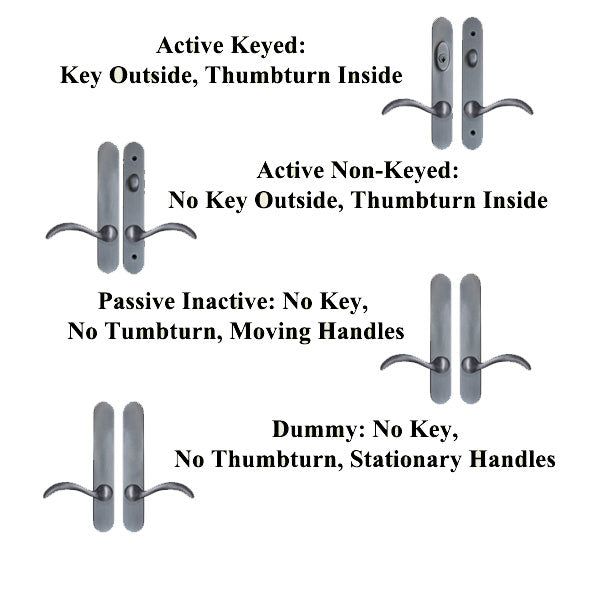

Function: Active Keyed with Thumbturn
Door Configuration: Exterior Keyed, Interior Thumbturn
Door Thickness: Standard 1-3/4 Inch
Handing: Non-Handed fits Left and Right Handed Doors
Cylinder: American 5 Pin with Flat Tail Piece
Keyway: Schlage Rekeyable with 2 Keys
Plate Style: Arch Top
Handle Style: Transitional Curved Levers
Finish: Oil Rubbed Bronze

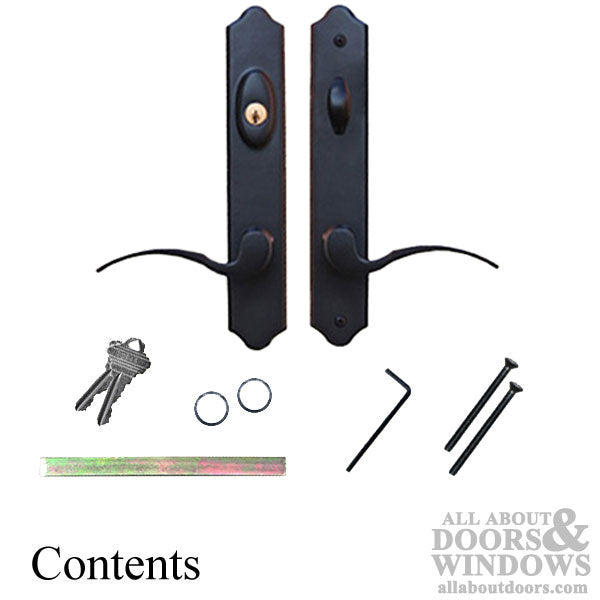

Contents: 1 Inside Plate, 1 Outside Plate, 2 Handles, 1 Spindle, 1 Hex Wrench, 2 Keys, Installation Screws



8" backplate discontinued and no longer being produced, may be replace with the 10" or 12" backplate handle sets with same screw hole pattern.
