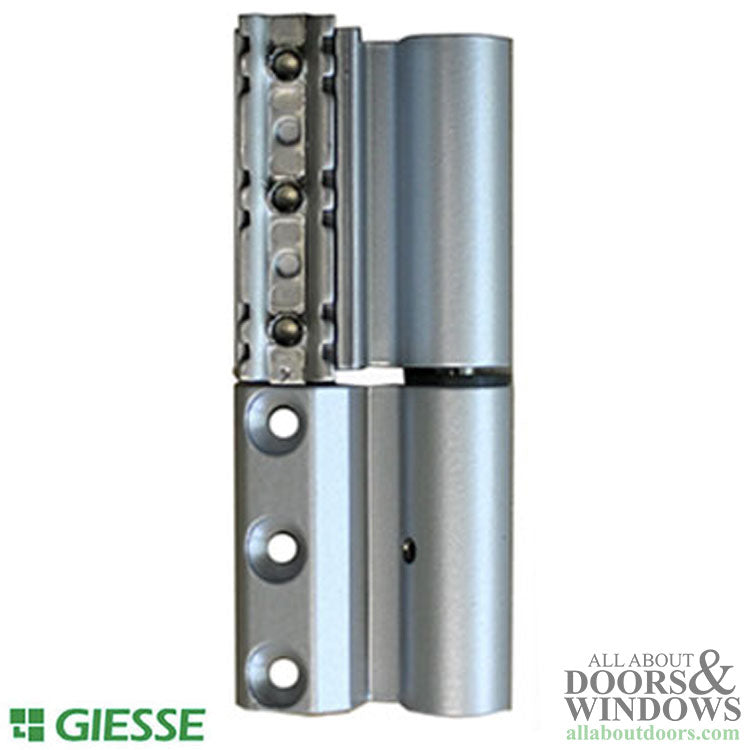

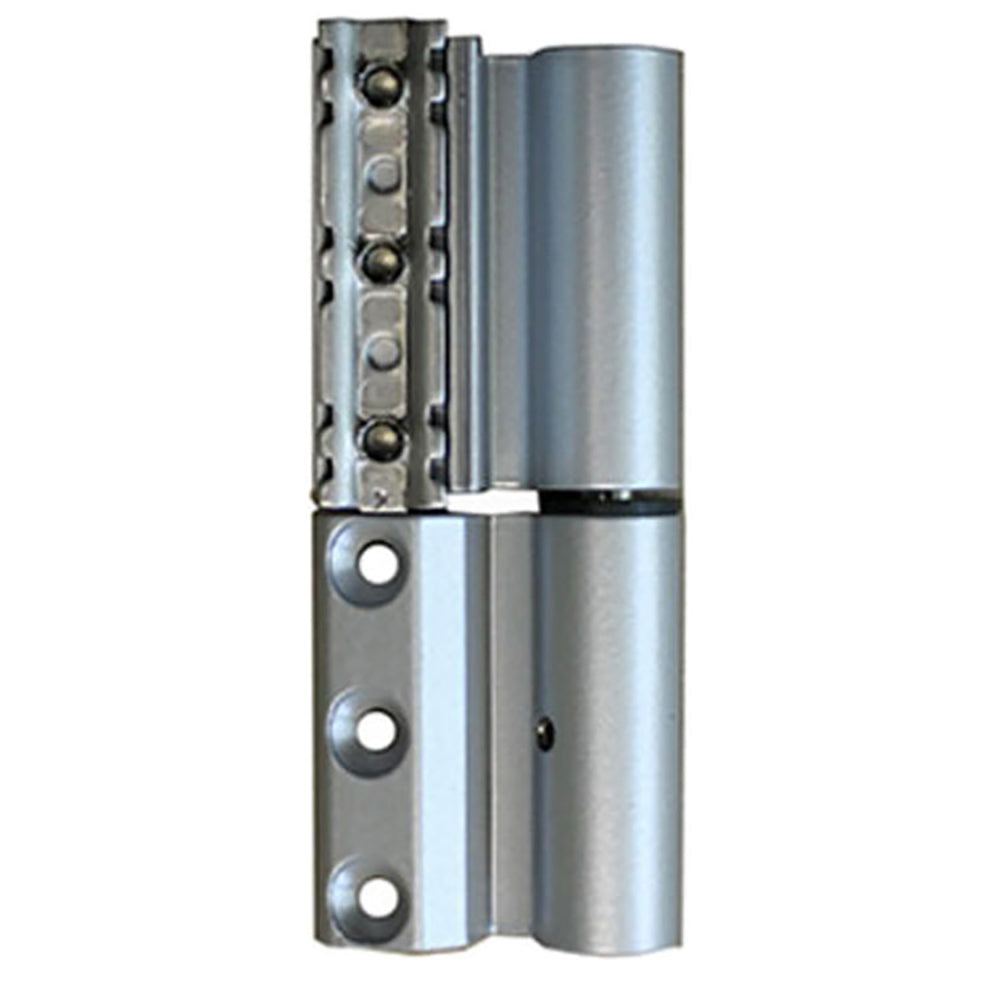

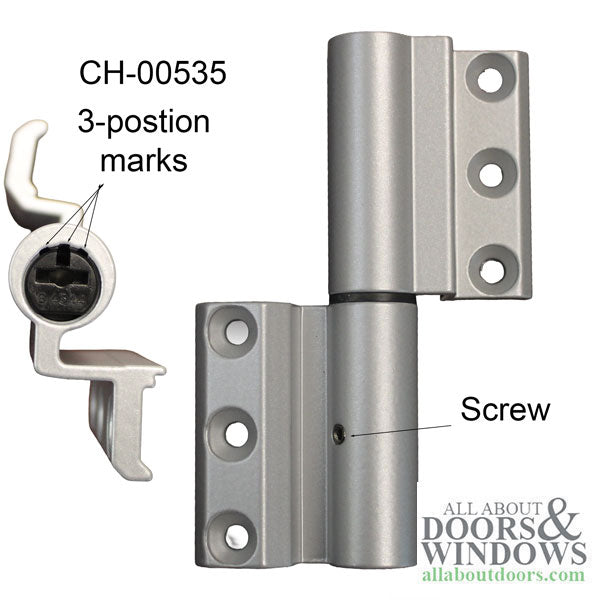

Giesse Two-handed hinge for aluminum windows and Terrace / Balcony doors with central gasket seal

Application: Aluminum framed doors and windows

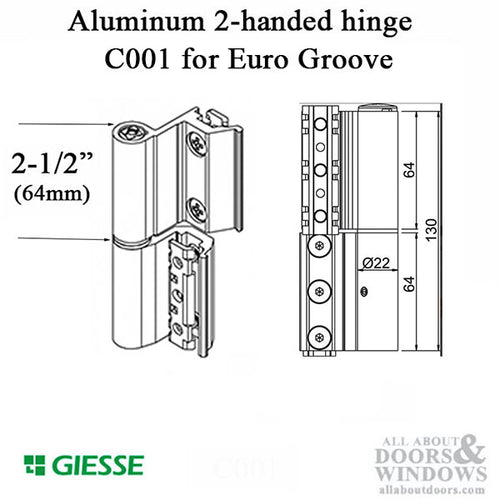

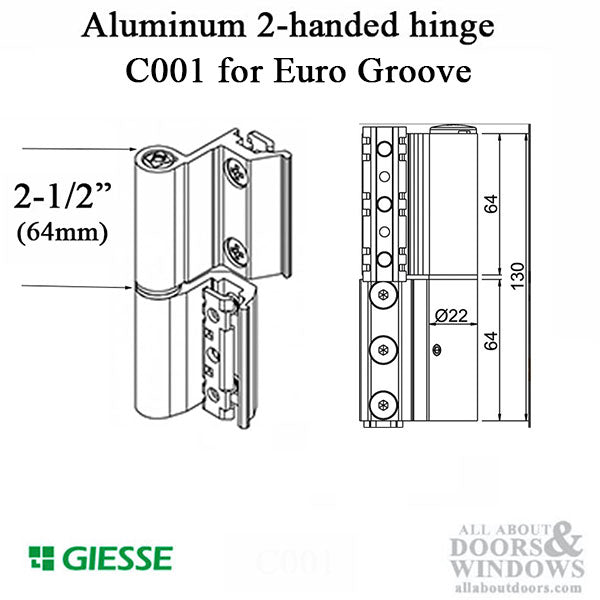

Overall Height: 5-1/8 inch (130mm) 5.118

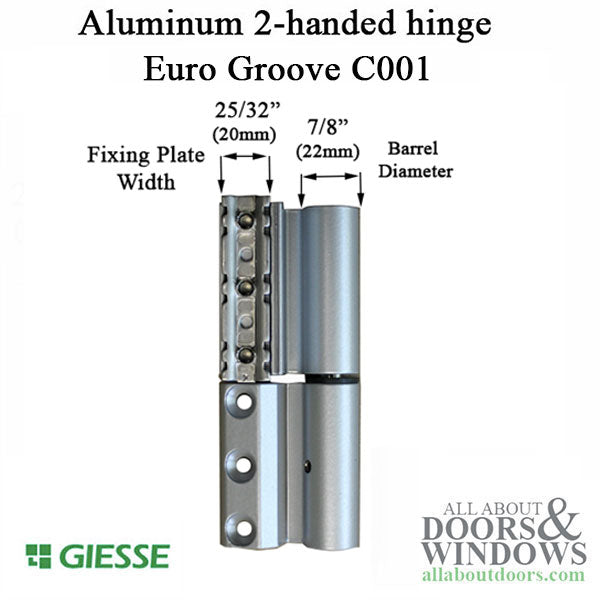

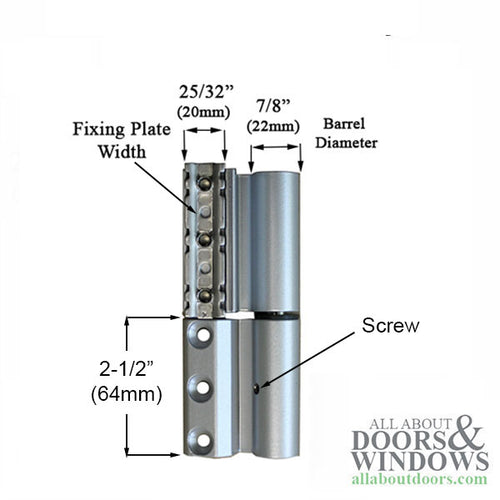

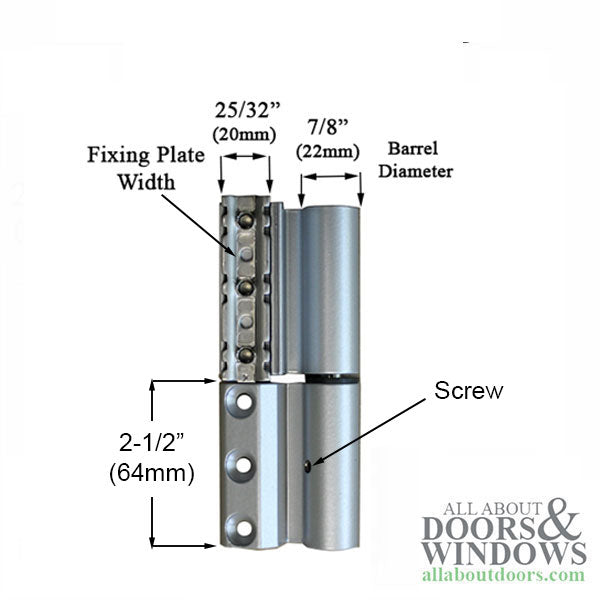

Barrel Diameter: 7/8 inch
Fixing Plate Width: 11/16 inch
Fixing Plate Length: 2-3/4 inch (70mm)
Material: Extruded Aluminum, stainless steel fixing plates, pins and screws, Polyamide bushing
Hinge Color: Silver

Markings: 84344 on plastic cap

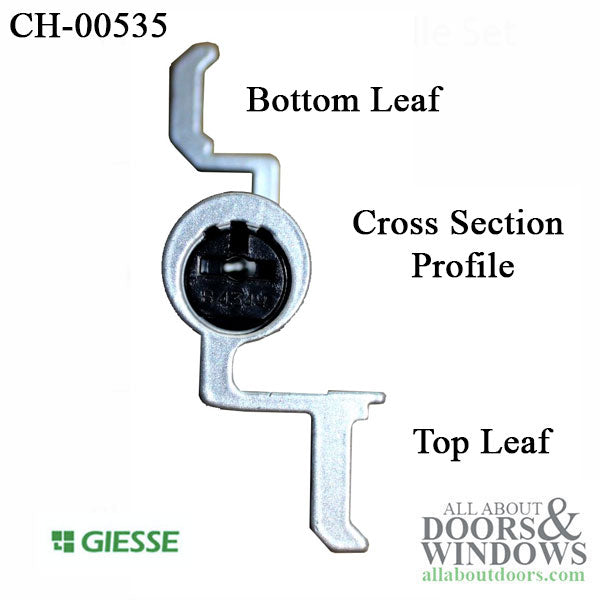

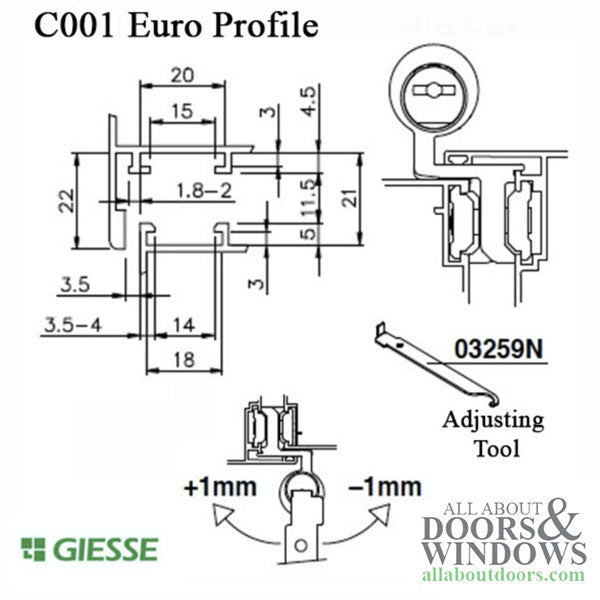

NOTE: Clamp widths and shapes of hinges vary, ( over a dozen profiles) please verify all images and hinge measurements

Additional Information: Technical Features
* Supplied preassembled to enable fast installation and faultless positioning of the hinge on already assembled fixtures.
* The special shape of fixing plate fitted to the sash (Giesse patent RAPID system) guarantees the firmest possible attachment of the hinge to the profile. The FLASH BASE hinge is fitted extremely quickly to the sash and frame, even when the fixture has already been assembled.
* The particular geometry of the hinge and of the plate enables swift and simple application to the already assembled fixture, and faultless positioning of the hinge when fixing the screws.
