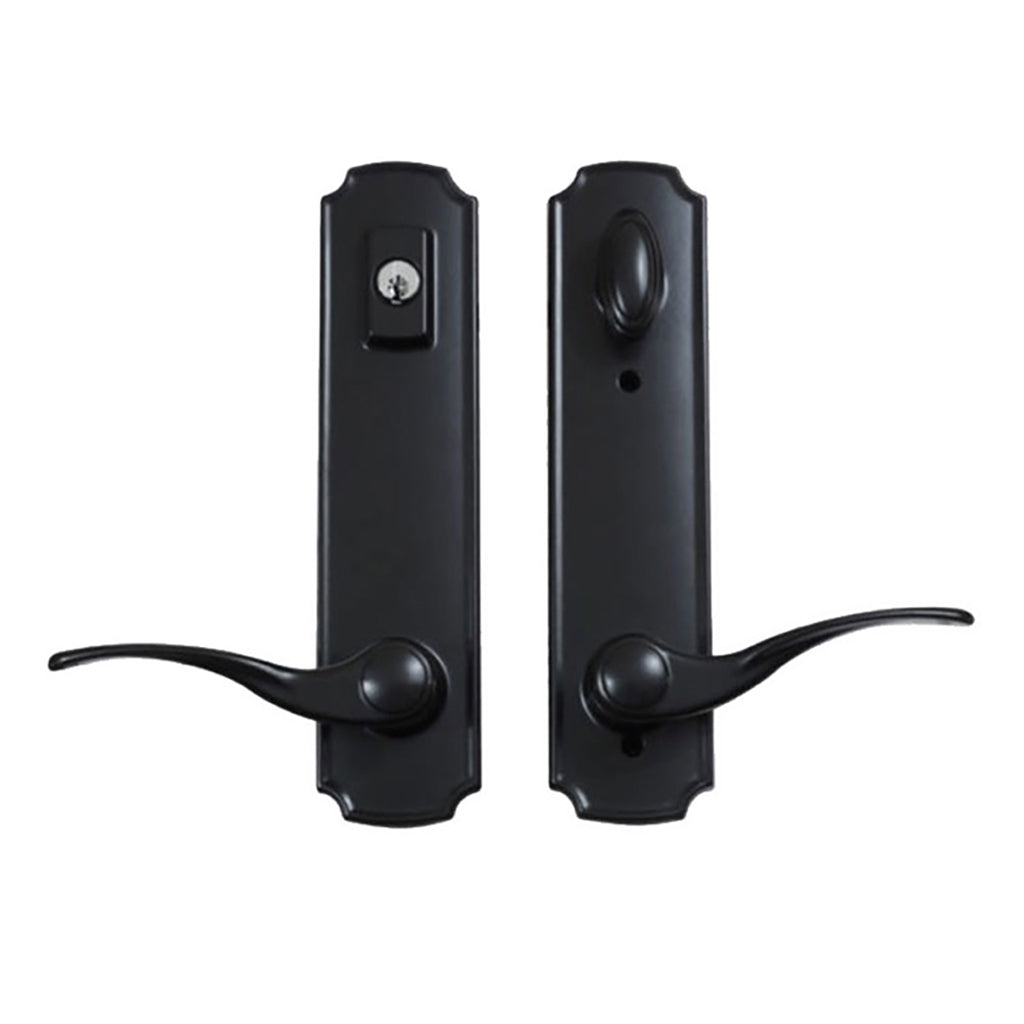

Pella Eclipse Handleset with Special Kwikset Smart key cylinder for Trilennium Multipoint Lock.

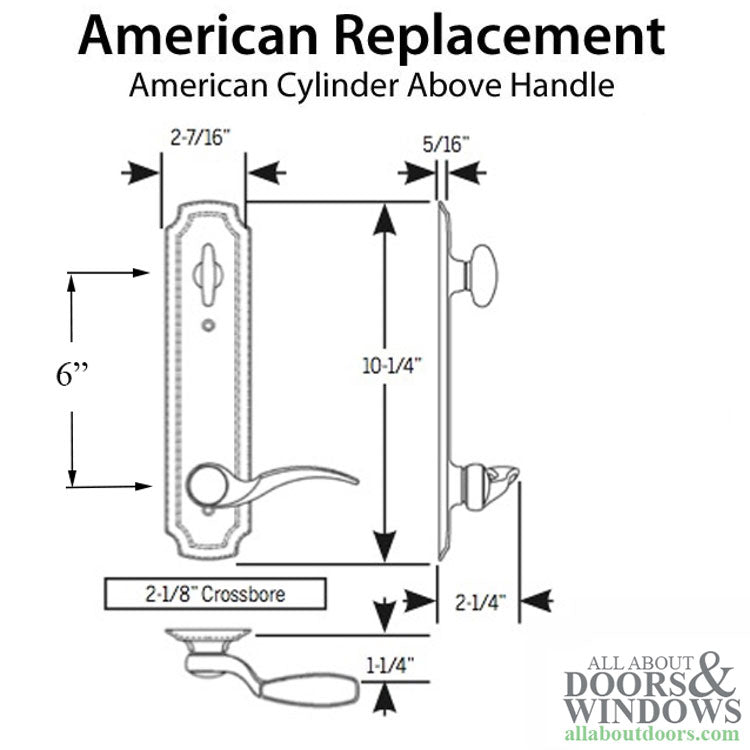

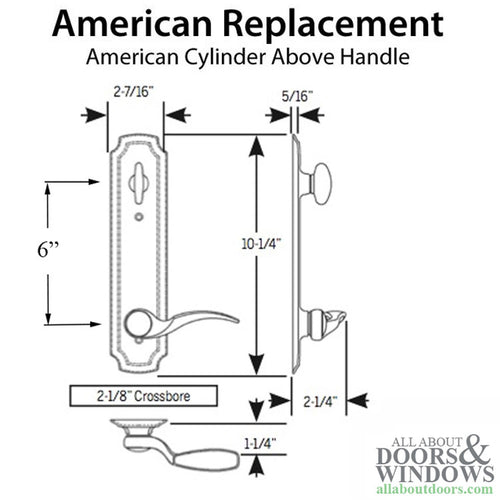

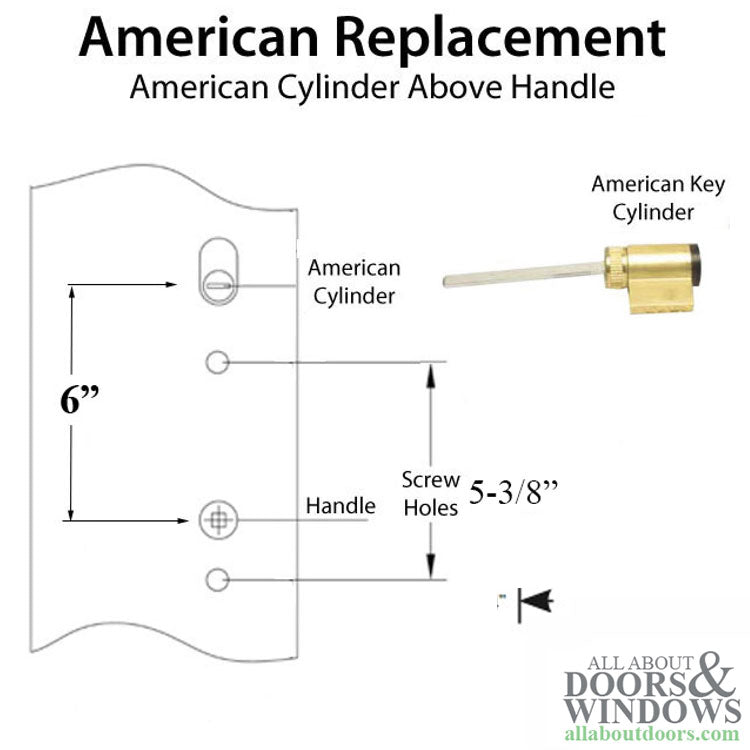

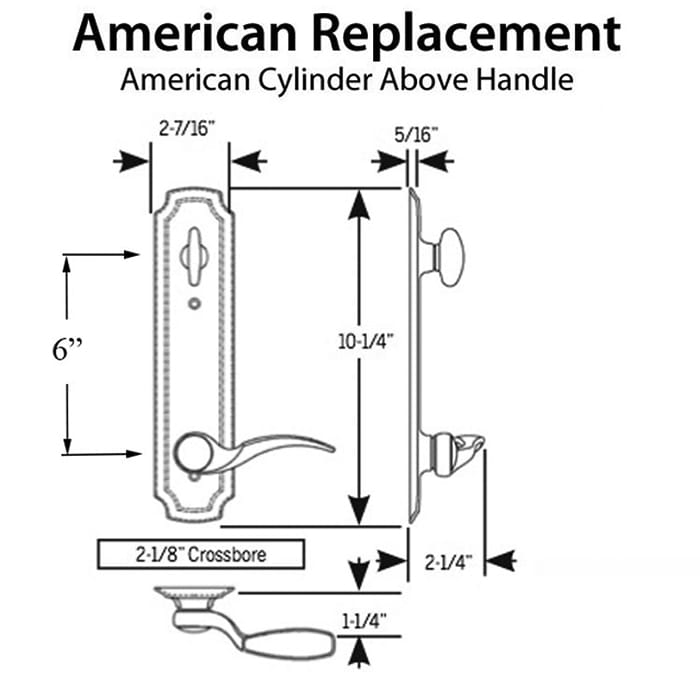

Handle to Cylinder Spacing: 6 inch (152.4mm)
Door Thickness: 1-3/4 inch (45mm)
Escutcheon Plate Width: 2-7/16 inch (61.9mm)
Escutcheon Plate Length: 10 inch (254mm)
Keyway: Kwikset, Smart Key
Color Options:
Satin Nickel
Victorian Bronze
SmartKey Security™ gives you one-key convenience - Re-key your locks yourself so all your doors share one key.
NOTE:
Standard bore on most W&F or Endura Trilennium hardware is 1-11/16 inch. Some doors use a 2-1/8 inch bore. Most Multipoint lock handle sets are only 2 inches wide and will not cover the larger holes.
For doors with a 2-1/8 inch Cross Bore use Pinnacle, Eclipse & Grip Hardware
For doors with a 1-11/16 inch Cross Bore use Emtek & Horizon hardware
Handle to Cylinder Spacing: 6 inch (152.4mm)
Door Thickness: 1-3/4 inch (45mm)
Escutcheon Plate Width: 2-7/16 inch (61.9mm)
Escutcheon Plate Length: 10 inch (254mm)
Keyway: Kwikset, Smart Key
Color Options:
Satin Nickel
Victorian Bronze
SmartKey Security™ gives you one-key convenience - Re-key your locks yourself so all your doors share one key.
NOTE:
Standard bore on most W&F or Endura Trilennium hardware is 1-11/16 inch. Some doors use a 2-1/8 inch bore. Most Multipoint lock handle sets are only 2 inches wide and will not cover the larger holes.
For doors with a 2-1/8 inch Cross Bore use Pinnacle, Eclipse & Grip Hardware
For doors with a 1-11/16 inch Cross Bore use Emtek & Horizon hardware
