Discontinued - Mortise Lock, 45 Degree Slot, Arcadia Sliding Glass Door
Use the arrows or swipe left to view all images for this product
This part has been discontinued; replace with 15142

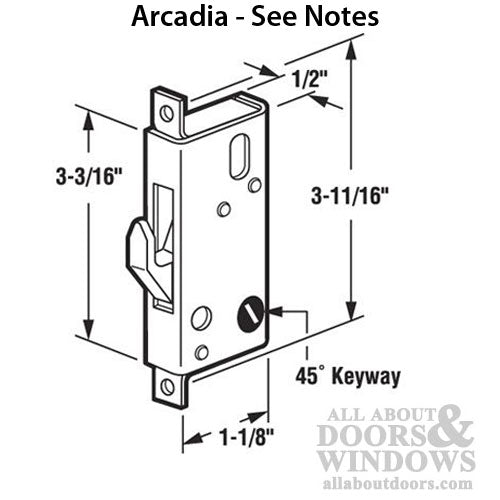

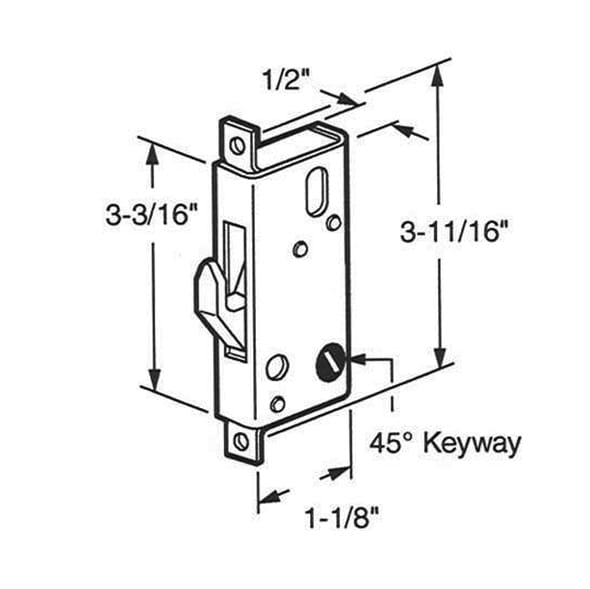

Mortise Lock for Sliding Patio Glass Door
This Lock requires a Mortise installation
The lock housing is constructed out of Steel
The hook is Diecast
Markings: PAT 2701156 / 2701157
Faceplate: Square ends
Hole Center: 3-11/16-inch
Keyway: 45 Degree Slot, when locked
This design is used by door manufacturers such as Arcadia and Saurenman
Mortise Lock for Sliding Patio Glass Door
This Lock requires a Mortise installation
The lock housing is constructed out of Steel
The hook is Diecast
Markings: PAT 2701156 / 2701157
Faceplate: Square ends
Hole Center: 3-11/16-inch
Keyway: 45 Degree Slot, when locked
This design is used by door manufacturers such as Arcadia and Saurenman
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2011
SlideCo: 15187
