Discontinued - Mortise Lock, 45 Slot, Arcadia Sliding Glass Door
Part Number: 15112This part has been discontinued; replace with 15142
Mortise Lock for Sliding Patio Glass Door
This Lock requires a Mortise installation
The lock housing is constructed out of Steel
The hook is Diecast
Markings: PAT 2701156 / 2701157
Faceplate: Square ends

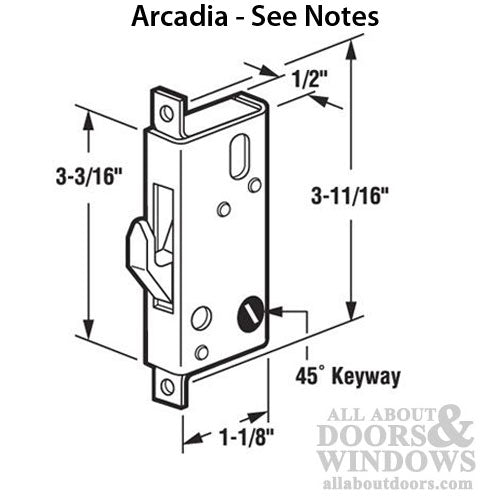

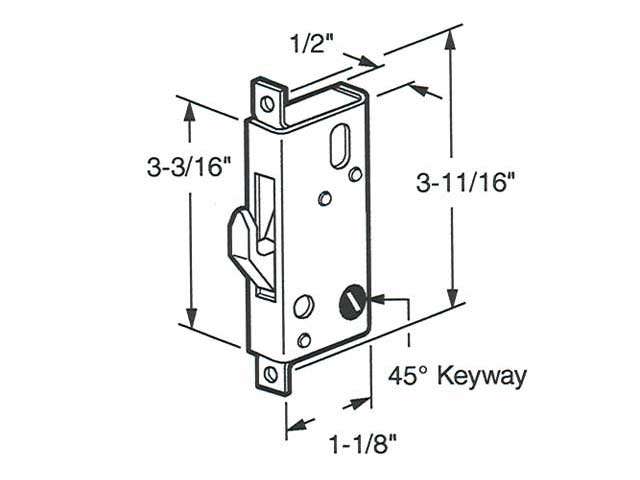

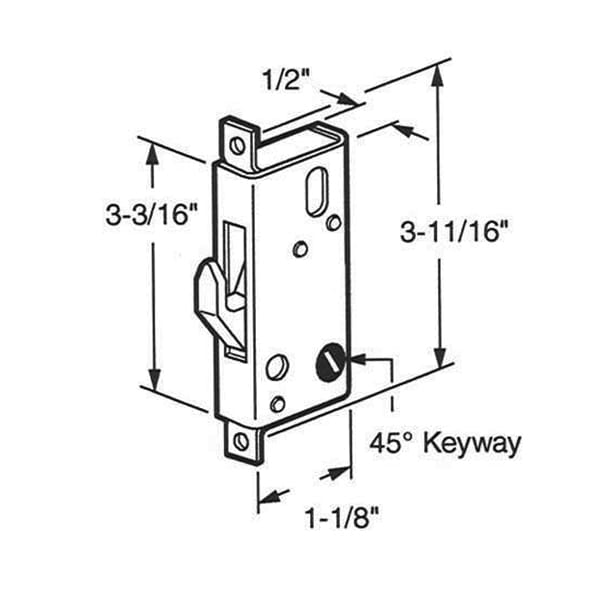

Hole Center: 3-11/16-inch
Keyway: 45 Degree Slot, when locked
This design is used by door manufacturers such as Arcadia and Saurenman
Mortise Lock for Sliding Patio Glass Door
This Lock requires a Mortise installation
The lock housing is constructed out of Steel
The hook is Diecast
Markings: PAT 2701156 / 2701157
Faceplate: Square ends
Hole Center: 3-11/16-inch
Keyway: 45 Degree Slot, when locked
This design is used by door manufacturers such as Arcadia and Saurenman
