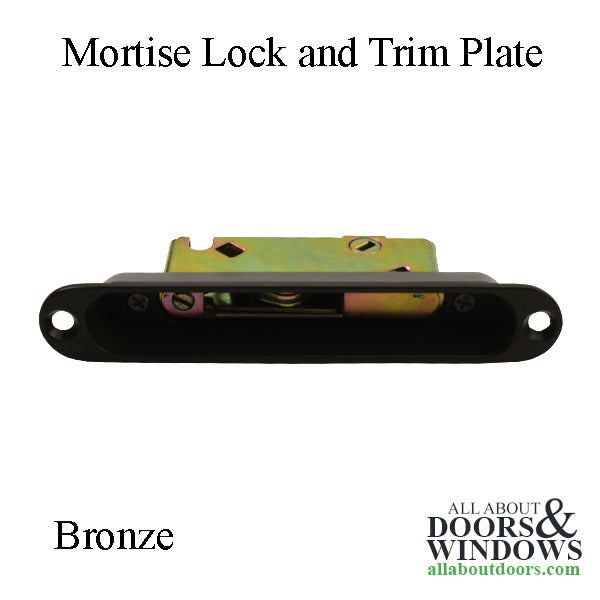

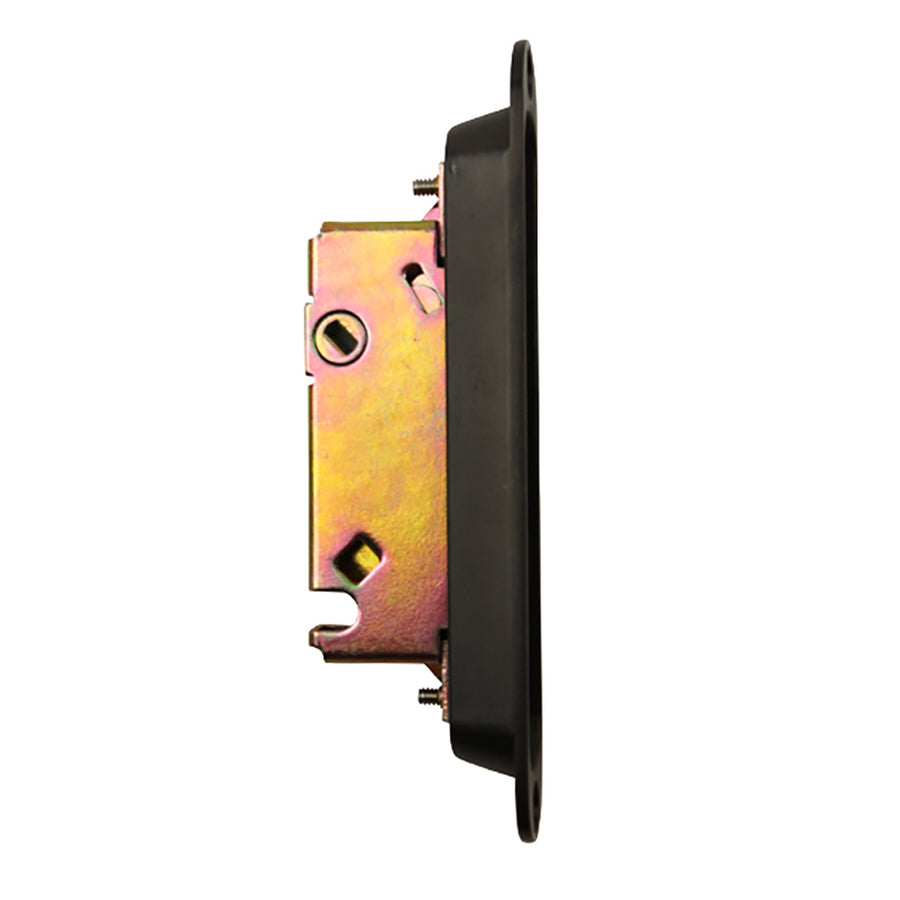

Mortise Lock and Trim Plate with 45 Degree Slot for Sliding Glass Door Bronze
Use the arrows or swipe left to view all images for this product
Mortise Lock and Trim Plate with 45 Degree Slot for Sliding Glass Door Bronze
Part Number: $78.75Single point mortise lock and trim plate with 45 degree slot for sliding glass door in 2 colors.
Face Plate Width: 1 Inch
Face Plate Length: 5-3/4 Inch
Hole Center: 5-1/4 Inch
Lock Length: 3-3/16 Inch
Lock Width: 1-1/8 Inch
Backset: 1-5/16 Inch
Keyway: 45 Degree Slot
Face Plate Depth: 1/2"
Finishes: 2 Colors
Available Colors:
Bronze
Polished Chrome
Contents: One mortise lock, one face plate, two installation screws.
Priced and sold each.
Face Plate Width: 1 Inch
Face Plate Length: 5-3/4 Inch
Hole Center: 5-1/4 Inch
Lock Length: 3-3/16 Inch
Lock Width: 1-1/8 Inch
Backset: 1-5/16 Inch
Keyway: 45 Degree Slot
Face Plate Depth: 1/2"
Finishes: 2 Colors
Available Colors:
Bronze
Polished Chrome
Contents: One mortise lock, one face plate, two installation screws.
Priced and sold each.
Single point mortise lock and trim plate with 45 degree slot for sliding glass door in 2 colors.
Face Plate Width: 1 InchFace Plate Length: 5-3/4 InchHole Center: 5-1/4 InchLock Length: 3-3/16 InchLock Width: 1-1/8 InchBackset: 1-5/16 InchKeyway: 45 Degree SlotFace Plate Depth: 1/2"Finishes: 2 Colors
Available Colors:BronzePolished Chrome
Contents: One mortise lock, one face plate, two installation screws.Priced and sold each.
