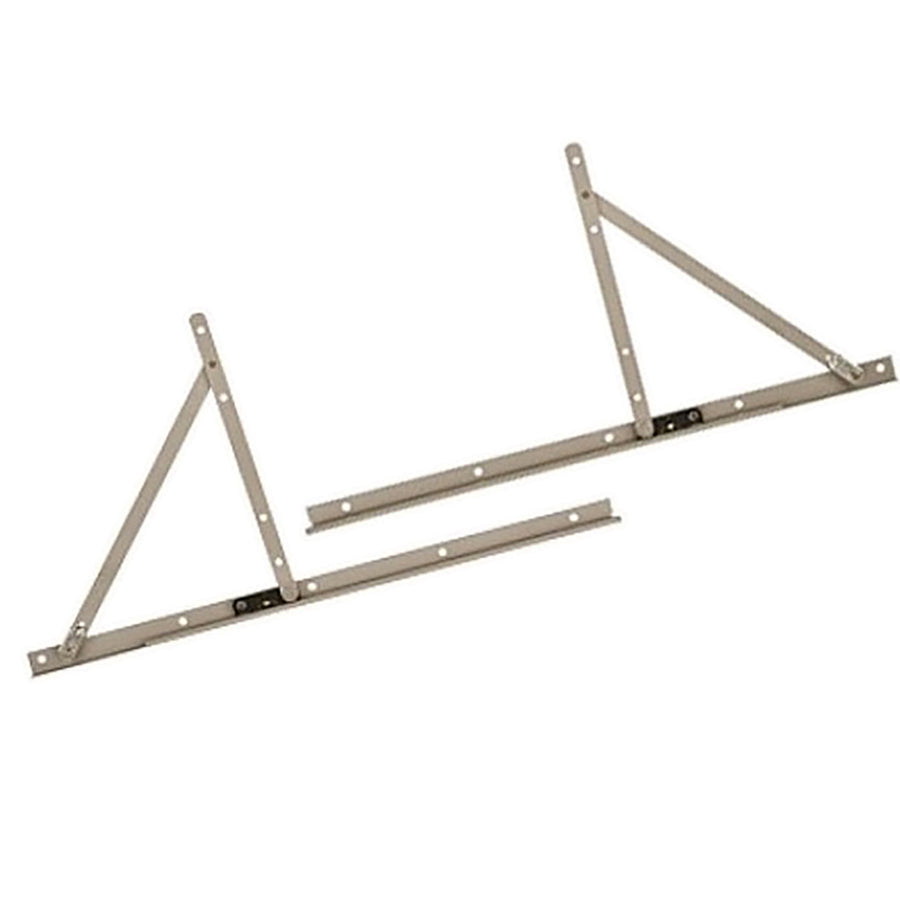

Truth 13.15 Awning Window Hinge and Track, Pairs 18" - E-Gard® Steel
Use the arrows or swipe left to view all images for this product
Truth 13.15 Awning Window Hinge and Track, Pairs 18" - E-Gard® Steel
Part Number: $41.55Application: Concealed Awning Hinge

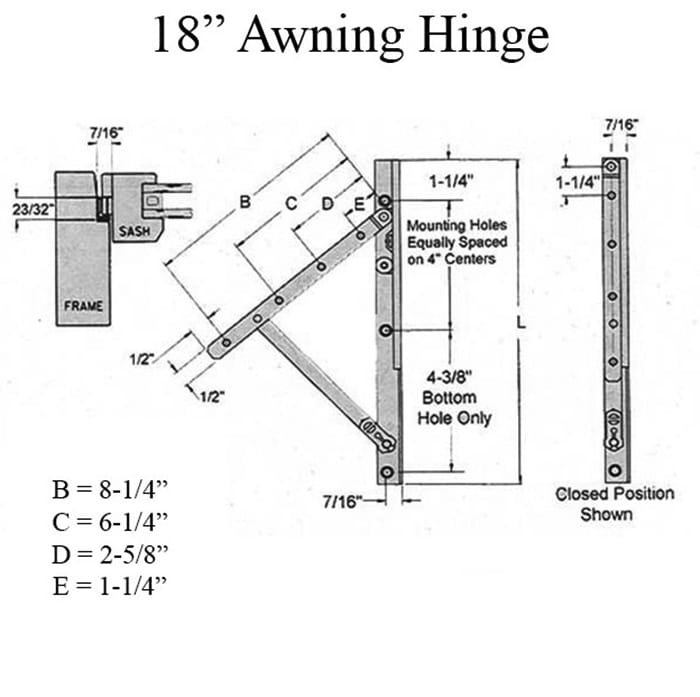

Track Length: 18 inches
Sash heights: 19 - 26 inches
Sash weight: up to 38 lbs.
Hinge Arm Material: Steel, E-GardA(R) corrosion resistant finish
Hinge arm Length: long 10 inch and short 8-3/4 inch with plastic shoe
Track Material: Stainless Steel
Sold in Pairs - 1 Left and 1 Right hand hinge
Markings: 301332A

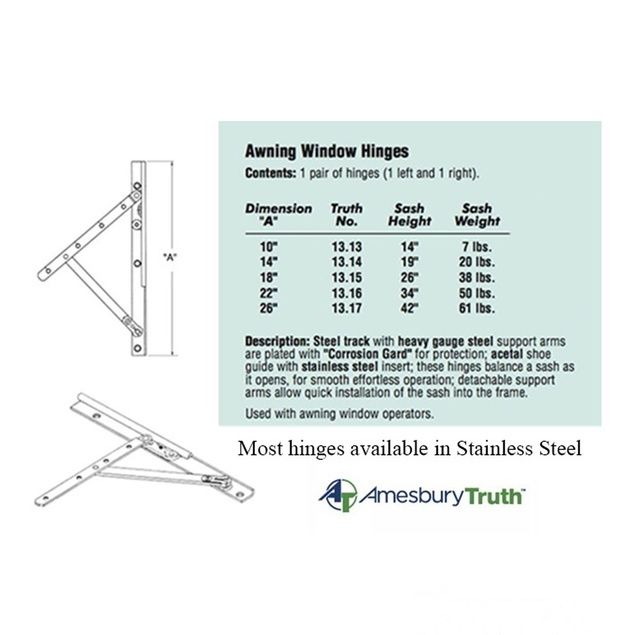

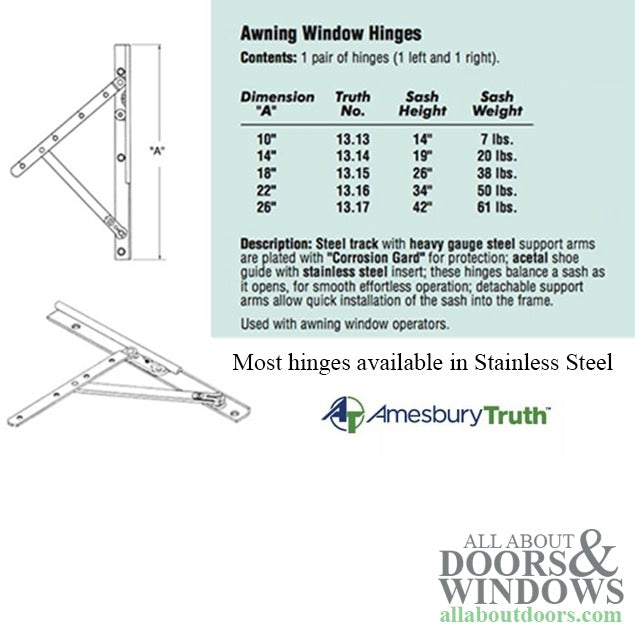

Related Truth Awning Hinges:
13.13-AWN-KIT-EG 10 inch E-Gard Steel
13.43-AWN-KIT-SS 10 inch Stainless Steel
13.14-AWN-KIT-EG 14 inch E-Gard Steel
13.44-AWN-KIT-SS 14 inch Stainless Steel
13.15-AWN-KIT-EG 18 inch E-Gard Steel
13.42-AWN-KIT-SS 18 inch Stainless Steel
13.16-AWN-KIT-EG 22 inch E-Gard Steel
13.45-AWN-KIT-SS 22 inch Stainless Steel
13.17-AWN-KIT-EG 26 inch E-Gard Steel
Additional Information:
Truth Hardware awning and casement window hinges are handed and come packed one left and one right per package.
The window hinges have an E-GardA(R) bottom track with two E-GardA(R) support arms and a plastic acetal slide shoe. The support arm has a brass snap stud for ease of installation or removal of the window sash.
The Truth Hardware awning window hinges are used by many window manufacturers.
Recommended Screws: Wood #7 x 3/4 inch Phillips flat head sheet metal screws to match track material.
Recommended Screws: PVC #7 x 3/4 inch Phillips flat head, Undercut sheet metal screws to match track material. Actual screw size may vary depending on application and window material.
Amesbury Truth 13.15 Concealed awning window hinge, 18 inch track, pair
Application: Concealed Awning Hinge
Track Length: 18 inches
Sash heights: 19 - 26 inches
Sash weight: up to 38 lbs.
Hinge Arm Material: Steel, E-Gard® corrosion resistant finish
Hinge arm Length: long 10 inch and short 8-3/4 inch with plastic shoe
Track Material: Stainless Steel
Sold in Pairs - 1 Left and 1 Right hand hinge
Markings: 301332A
Related Truth Awning Hinges:
13.13-AWN-KIT-EG 10 inch E-Gard Steel
13.43-AWN-KIT-SS 10 inch Stainless Steel
13.14-AWN-KIT-EG 14 inch E-Gard Steel
13.44-AWN-KIT-SS 14 inch Stainless Steel
13.15-AWN-KIT-EG 18 inch E-Gard Steel
13.42-AWN-KIT-SS 18 inch Stainless Steel
13.16-AWN-KIT-EG 22 inch E-Gard Steel
13.45-AWN-KIT-SS 22 inch Stainless Steel
13.17-AWN-KIT-EG 26 inch E-Gard Steel
Additional Information:
Truth Hardware awning and casement window hinges are handed and come packed one left and one right per package.
The window hinges have an E-Gard® bottom track with two E-Gard® support arms and a plastic acetal slide shoe. The support arm has a brass snap stud for ease of installation or removal of the window sash.
The Truth Hardware awning window hinges are used by many window manufacturers.
Recommended Screws: Wood #7 x 3/4 inch Phillips flat head sheet metal screws to match track material.
Recommended Screws: PVC #7 x 3/4 inch Phillips flat head, Undercut sheet metal screws to match track material. Actual screw size may vary depending on application and window material.
