Andersen 42510 Storm Door Mortise Lock case 4000 Series Only Right Hand
Use the arrows or swipe left to view all images for this product
Andersen 42510 Storm Door Mortise Lock case 4000 Series Only Right Hand
Part Number: $53.73Andersen 4000 Series Storm Door Lock case, Body Only, No Faceplate, Right Hand
Special, NO faceplate, Andersen / Emco Replacement Mortise lock used with 4000 Series Full view Quick Change Glass and screen inserts. The 4000 series storm door has a button above the handle. To replace glass the button is pushed up and the lever is lifted to a vertical position. Remove Glass or Screen panel to change
Specifications:
- Lock Application: 4000 Series Quick Change System, Full View Storm Door
- Handed: Right Handed
- Markings on Lock Case: Black nylon guide below latch, L or R on metal
- Cylinder Type: Euro Profile
- Backset: 7/8 Inch

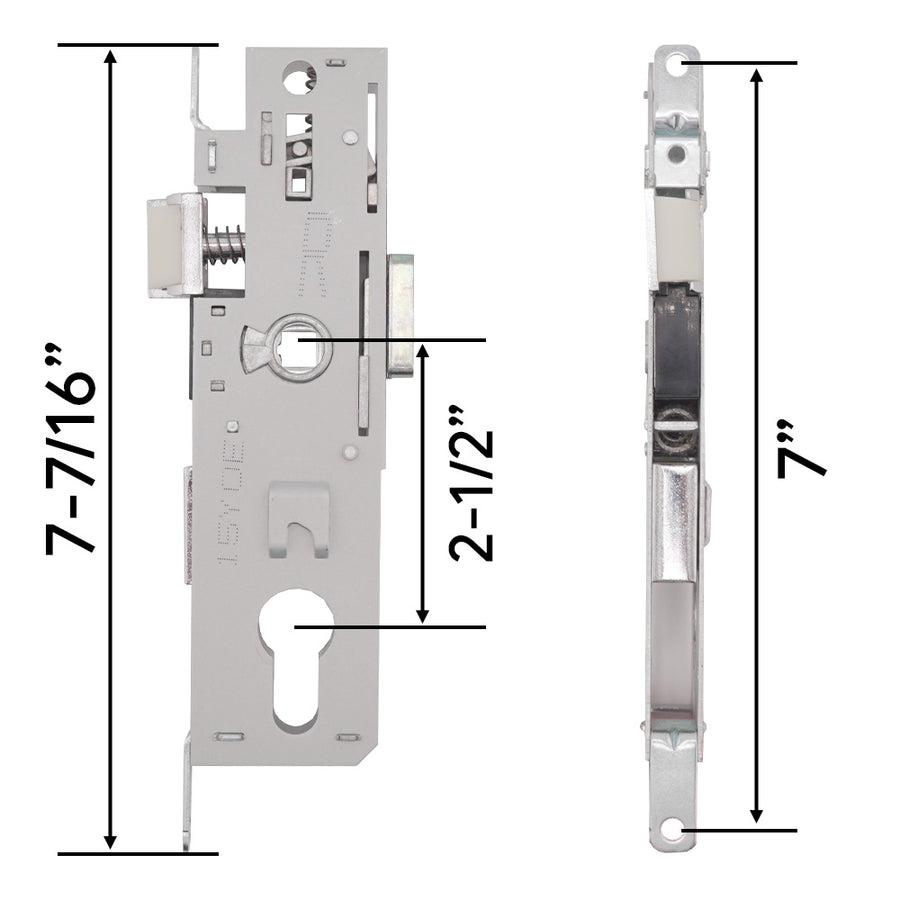

- Screw Hole Spacing: 7 Inches
- Deadbolt Throw: 1/2 Inch
- Cylinder to Handle PZ: 2-1/2 Inches
- Contents: Lock Case and Screws, No Faceplate
NOTE: Handing determined from Outside, IF handle set on the right is Right Hand, When handle set on the left is Left Hand.
Andersen 4000 Series: Uses a tool-free Quick Change System. A handle lock lets you swap panels in under a minute.
Andersen 3000 Series: Requires manually snapping plastic retainer strips in and out to switch panels.
