Andersen / Emco Single Point Mortise Lock - NOT AVAILABLE

This part has been discontinued and can be replaced with 302047 (uses the same mortise lock that this set did)

Andersen / Emco Single Point Mortise Lock - NOT AVAILABLE

It uses a Euro style profile key cylinder 302054 or 302055 (not included)

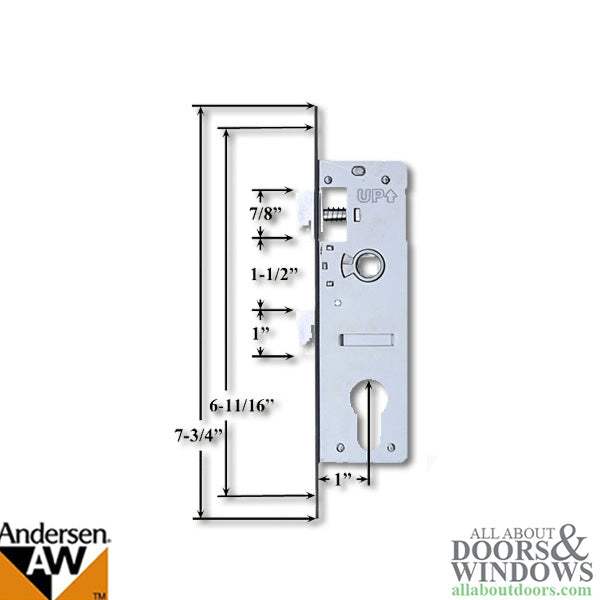

Specifications:

• Backset: 1 inch. Mortise lock body (standard is 7/8")
• Backset is measured from edge of mortise lock to center of handle

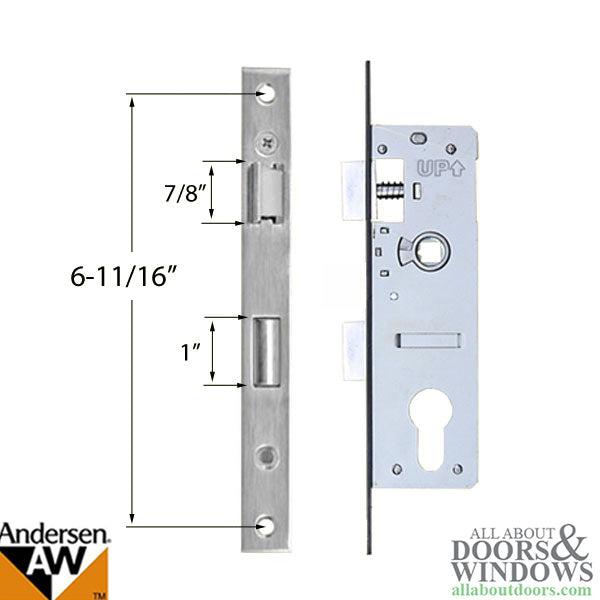

• Mounting Screw Hole Spacing: 6-11/16 Inch
• Faceplate Length: 7-3/4 Inches
• Faceplate Width: 7/8 Inches
• Door Thickness: 1-1/4 to 1-1/2 Inches
• Color(s): Polished Brass, Brushed/Satin Nickel and Oil Rubbed Bronze
• Kit Includes: 1 single point mortise lock, installation screws and/or bolts

NOTE:

• This mortise lock will only work on doors with the above measurements.
• To purchase this Mortise Lock as a complete kit, see here.
• Oil rubbed bronze finish is a "living" finish that will change with time and use. Over time, handling and frequent use create the bronze patina that is the hallmark of the oil-rubbed bronze finish.

Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
