Andersen / Emco Single Point Mortise Lock - NOT AVAILABLE

Part Number: 306200 Price: $69.38

This part has been discontinued and can be replaced with 302047 (uses the same mortise lock that this set did)

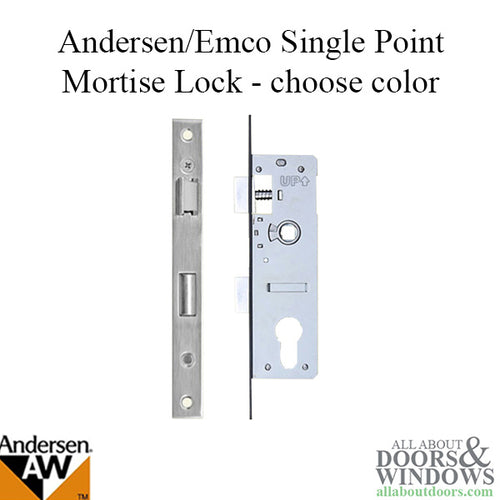

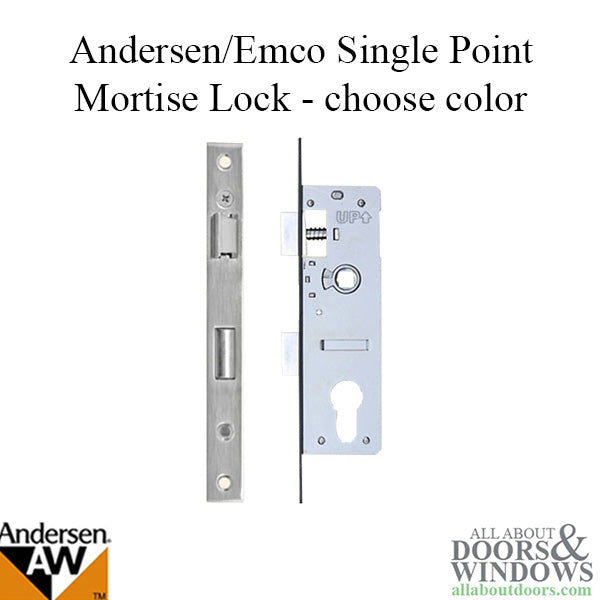

This is a Single Point Mortise Lock used on Andersen / Emco storm doors.
It uses a Euro style profile key cylinder 302054 or 302055 (not included)

Was available in 3 colors: Polished Brass, Brushed/Satin Nickel and Oil Rubbed Bronze

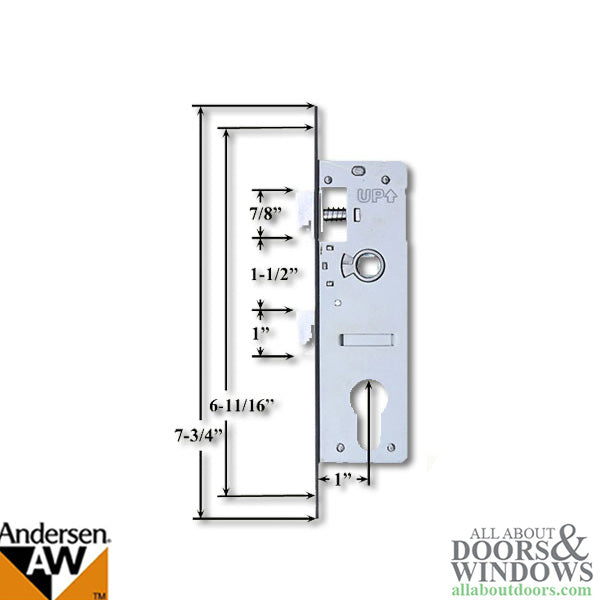

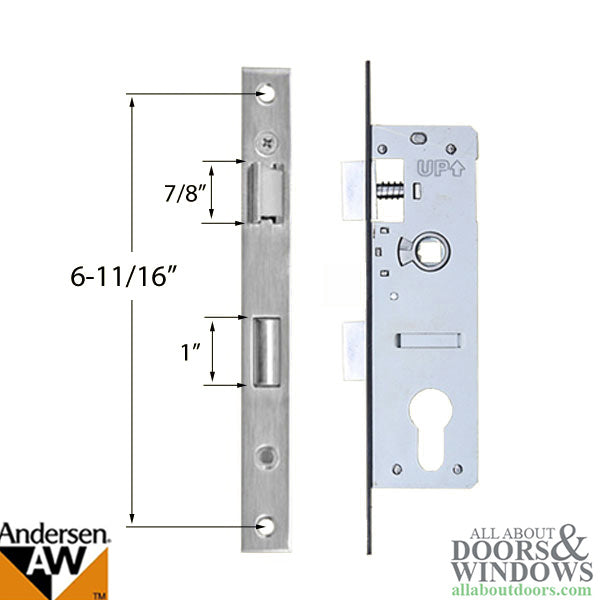

Mortise Lock Measurements:
Backset: 1 inch. Mortise lock body (standard is 7/8")
Backset is measured from edge of mortise lock to center of handle
Mounting screw holes: spaced 6-11/16 Inch
Faceplate Length: 7-3/4"
Faceplate Width: 7/8" (20mm)
Door Thickness: 1-1/4" to 1-1/2"

Kit Includes:
1 single point mortise lock
installation screws and/or bolts

This mortise lock will only work on doors with the above measurements.
To purchase this Mortise Lock as a complete kit, see here.
Oil rubbed bronze finish is a "living" finish that will change with time and use. Over time, handling and frequent use create the bronze patina that is the hallmark of the oil-rubbed bronze finish.

Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
