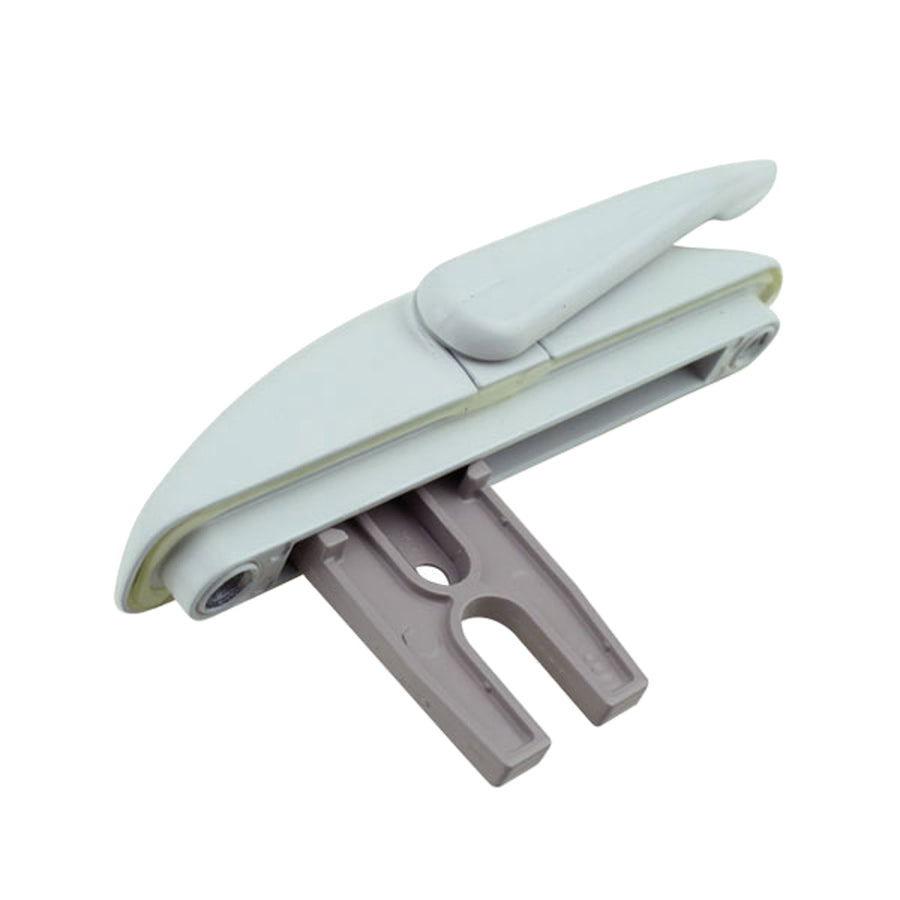

Maxim 1-5/8" Projection Multipoint Sash Lock - White

AmesburyTruth Maxim

Multipoint Casement Window Sash Lock with Gasket

The Truth Maxim locking system compliments the Maxim operator and hinge system for use in vinyl, aluminum, and fiberglass windows. This multipoint casement window sash lock is high performance for a great value.

Reversible/non-handed to help reduce inventory for commercial installers and simplify shopping for homeowners.

Specifications:

• Series:  24
• Mount Type:  Jamb
• Handing:  Non-handed
• Color:  White
• Material:  Zinc
• Size:  Medium

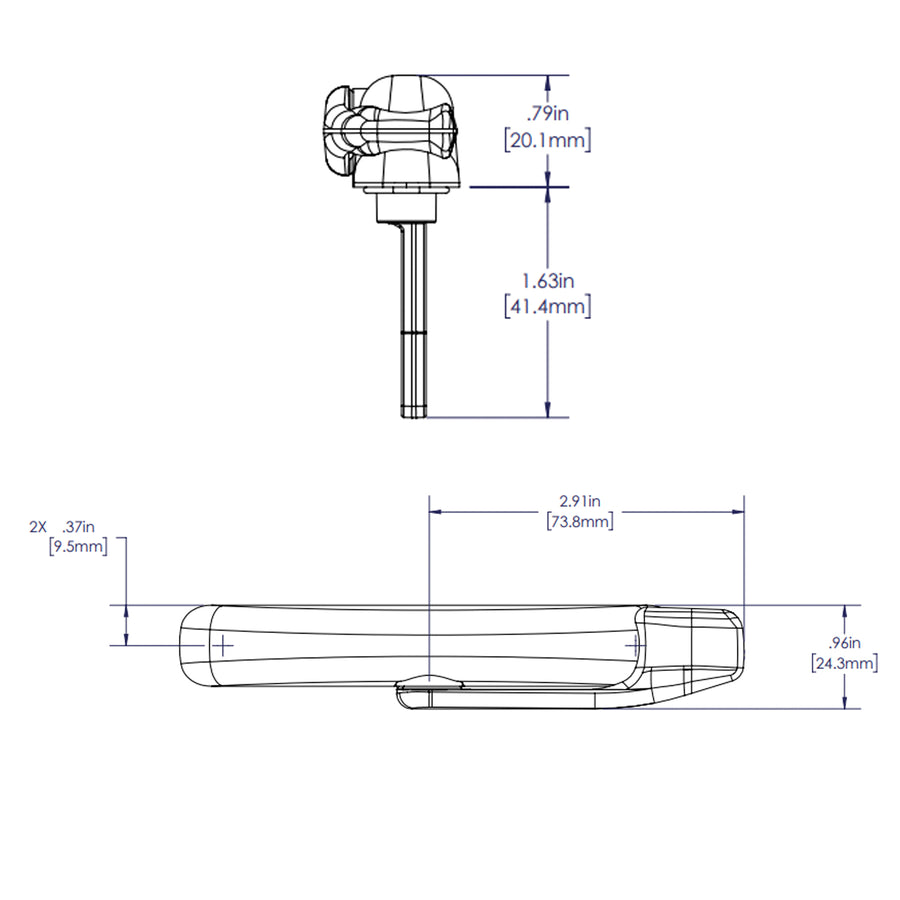

• Housing Length:  4-9/16 inches (4.61", 117.1mm)
• Housing Width:  3/4 inches (0.75", 19 mm)
• Housing Height:  13/16 inch (0.79", 20.1mm)

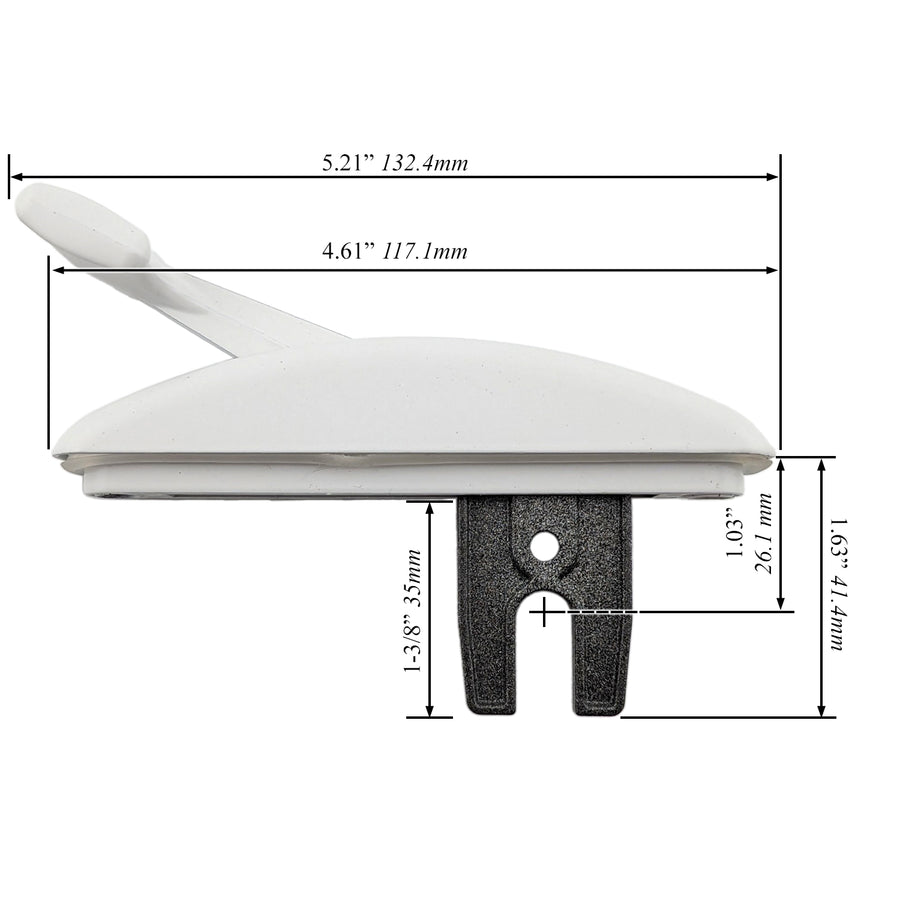

• Total Length (with handle):  5-3/16 inch (5.21", 132.4mm)
• Total Width (with handle):  15/16 inch (0.96", 24.3mm)
• Screw Hole Distance (Center-to-Center):  3-13/16 inches (3.82", 97mm)
• Projection:  1-5/8 inch from surface (1.63", 41.4mm)
• Fork Length (not including 1/4" inset lip):  1-3/8 inch (1.375", 35mm)

Related Parts:

• 556075 - Maxim Tie Bar

This lock features a "zippered locking effect" to ensure the top lock point is engaged; so that, the window can be locked without being fully closed, within 5/8" of its reach-out capability.

Priced and sold each.
