Sliding Patio Door Handle With Reverse Clamp Locking Latch Sliding Door Handle
Use the arrows or swipe left to view all images for this product
Sliding Patio Door Handle With Reverse Clamp Locking Latch Sliding Door Handle
Part Number: $132.30Sliding Patio Door Handle Set With Reverse Clamp - Black

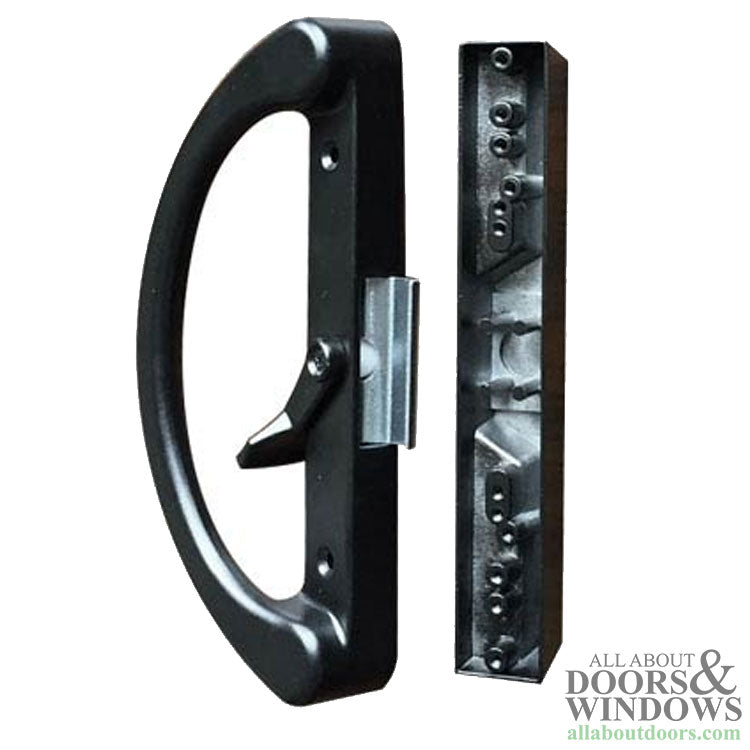

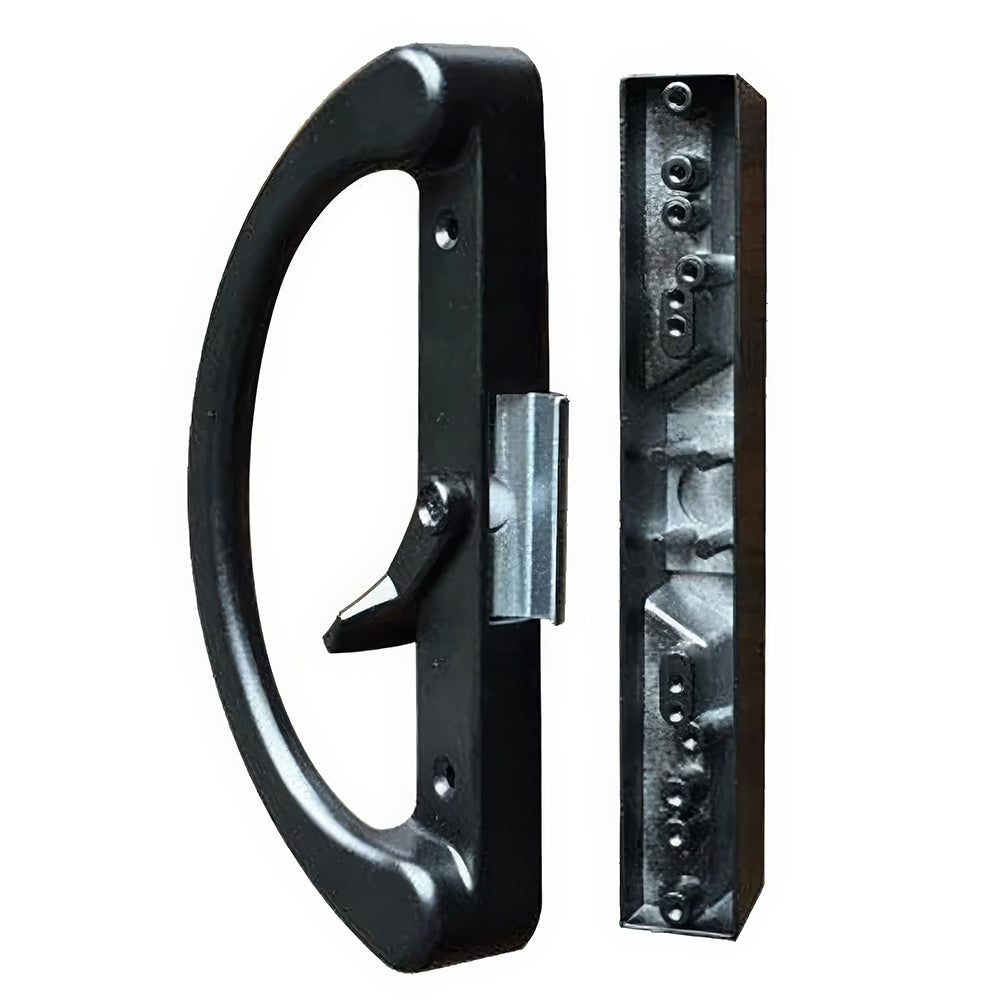

Handle set is die-cast with reverse clamp latch and 4-15/16 inch mounting hole center.

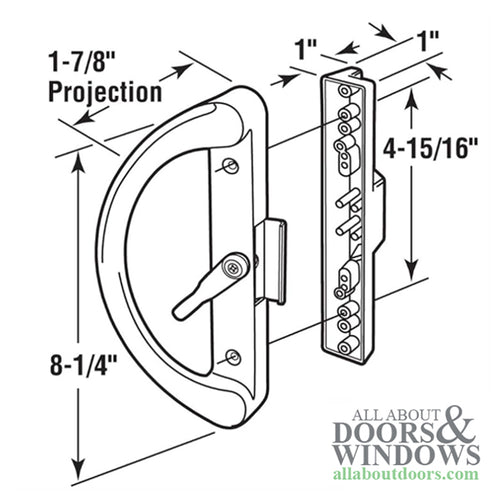

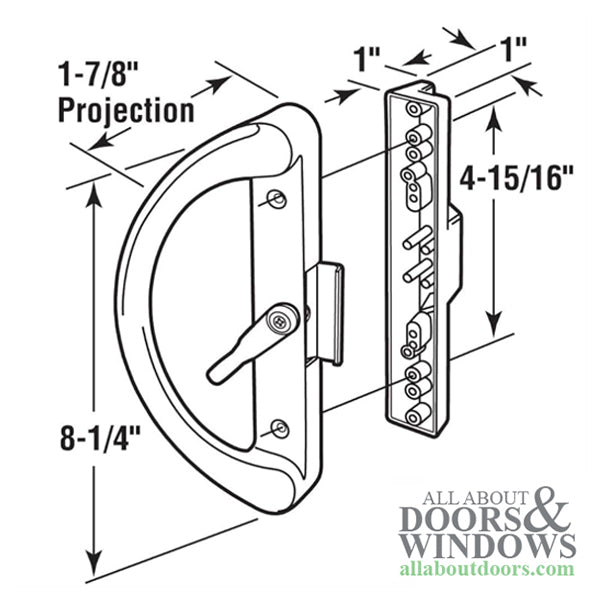

Plate Height: 8-3/16 Inch
Plate Width: 1-1/8 Inch
Plate Depth: 3/4 Inch
Hole Center: 4-15/16 Inch
Color: Black
Latch Style: Reverse Clamp
Material: Die-cast

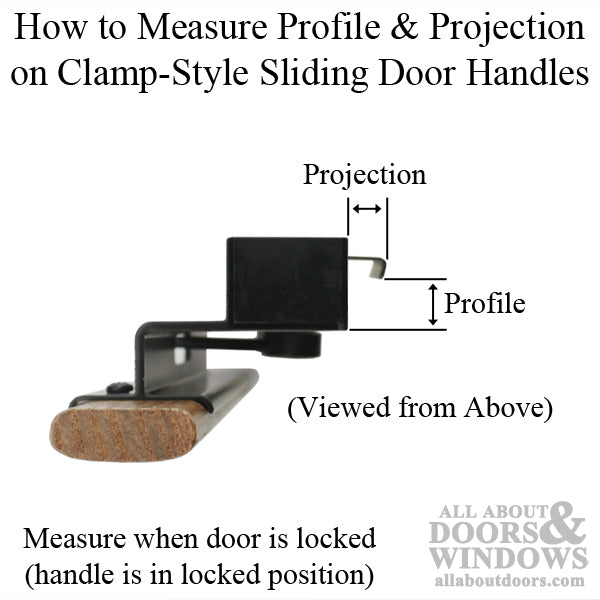

Clamp Projection: 9/16 Inch
Clamp Profile: 1/4 Inch
Contents: inside/outside pull
Priced and sold as set.
See additional information tab for manufacturer's notes.

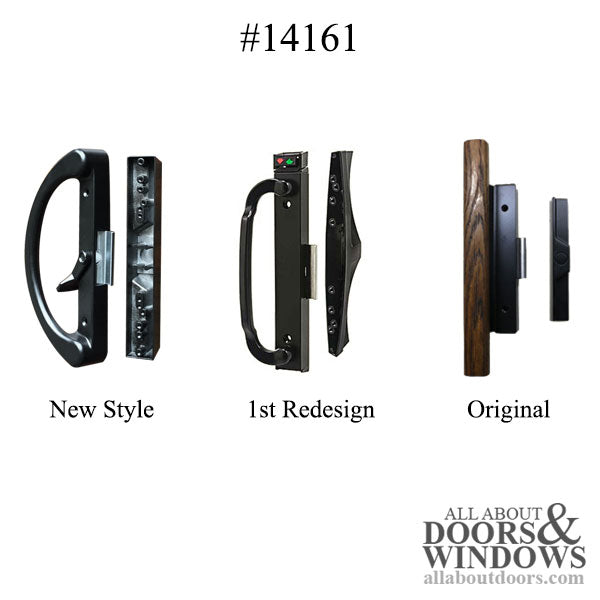

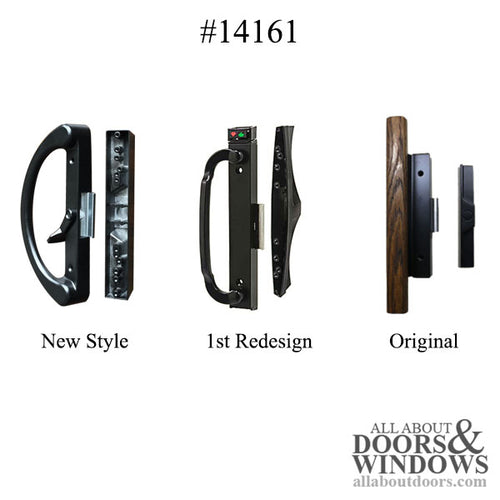

Please note: this handle set has been redesigned twice and this is the newest replacement. All other designs are discontinued and no longer available. The original had a wooden handle and the first redesign had the locking mechanism at the top of the plate (see Image 4 for reference). NOTE: Doors come in different thicknesses and screws may not be long enough for some doors. This may require reusing old screws or a visit to your local hardware store.
PLEASE NOTE: Thumbturn may be stiff or difficult to turn when you first receive it. If this is the case, please loosen slightly with a phillips screwdriver.
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: C 1238
