Privacy Spring Latch, 28° rotation 2-3/8 backset - No Faceplate
Use the arrows or swipe left to view all images for this product
Privacy Spring Latch, 28° rotation 2-3/8 backset - No Faceplate

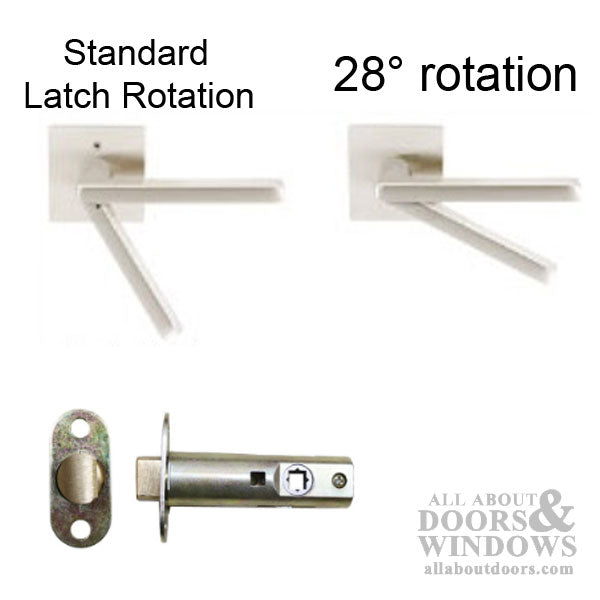

Part Number: $37.98New Style Privacy latch with 28A degrees rotation to open door.
Replacement spring latch - Non-handed - 2-3/8 inch (60mm) Backset

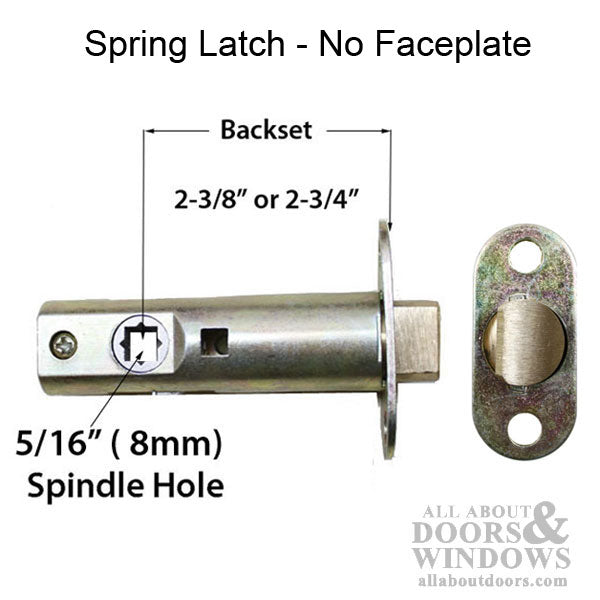

Latch Backset: 2-3/8 (60 mm)
Function: Spring latch with lockout for privacy

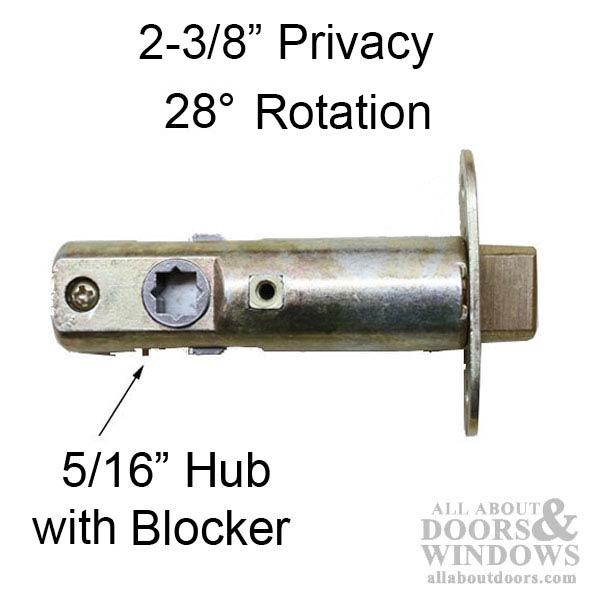

Spindle Diameter: 5/16 inch (8 mm) square hub
Door Type: Privacy, bedroom or bathroom
Faceplate Finish: Not Include, faceplate is sold separately
works with 1-3/8 or 1-3/4 inch thick doors
Non-Handed, fits left or right hand doors
Easy installation with typical screw driver
Priced and sold each.
Passage have a square hole - open through

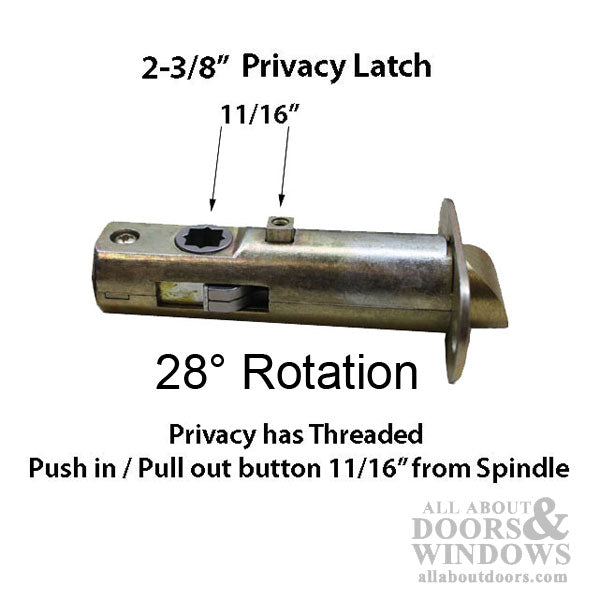

Privacy have a square hole with a plate in the middle & privacy button.
Notes:
Available Backset: 2-3/8 (60 mm) or 2-3/4 (70 mm)
When ordering faceplate, choose color and corner as radius or square.
Optional Faceplate Colors: Polished Brass, Oil Rubbed Bronze, Brushed/Satin Nickel
New Style Privacy latch with 28° rotation to open door. Replacement spring latch - Non-handed - 2-3/8 inch (60mm) Backset Latch Backset: 2-3/8 (60 mm) Function: Spring latch with lockout for privacy Spindle Diameter: 5/16 inch (8 mm) square hub Door Type: Privacy, bedroom or bathroom Faceplate Finish: Not Include, faceplate is sold separately works with 1-3/8 or 1-3/4 inch thick doors Non-Handed, fits left or right hand doors Easy installation with typical screw driver Priced and sold each.
Passage have a square hole - open through Privacy have a square hole with a plate in the middle & privacy button.
Notes: Available Backset: 2-3/8 (60 mm) or 2-3/4 (70 mm) When ordering faceplate, choose color and corner as radius or square. Optional Faceplate Colors: Polished Brass, Oil Rubbed Bronze, Brushed/Satin Nickel
