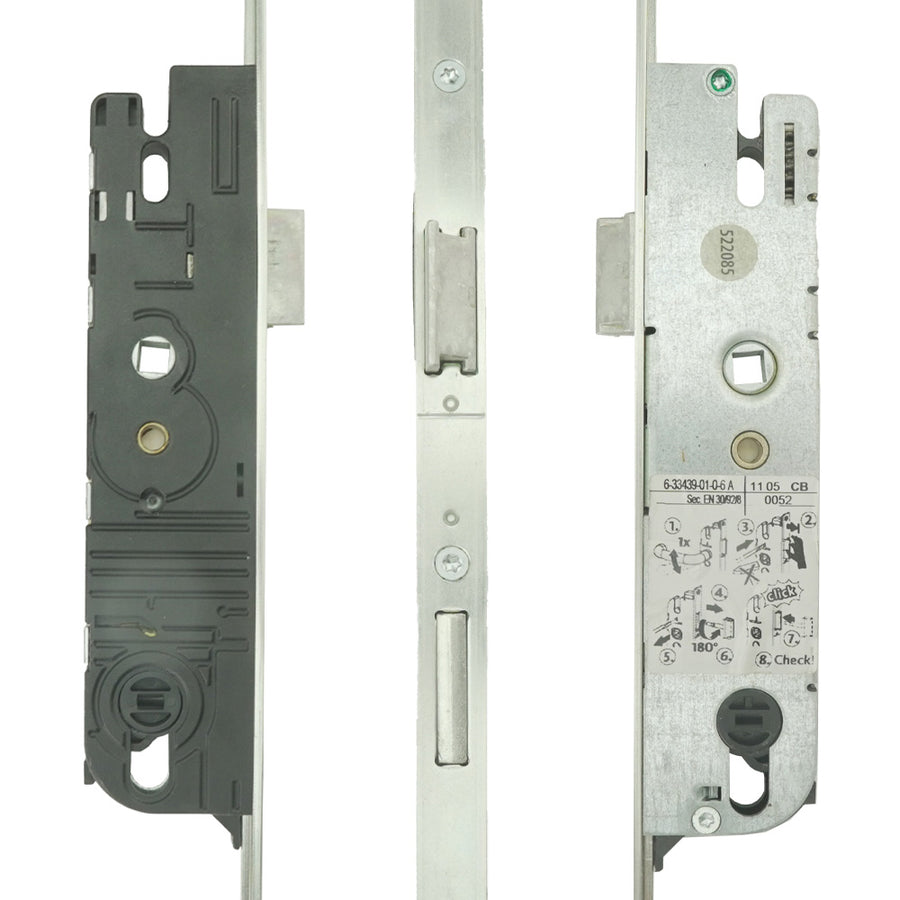

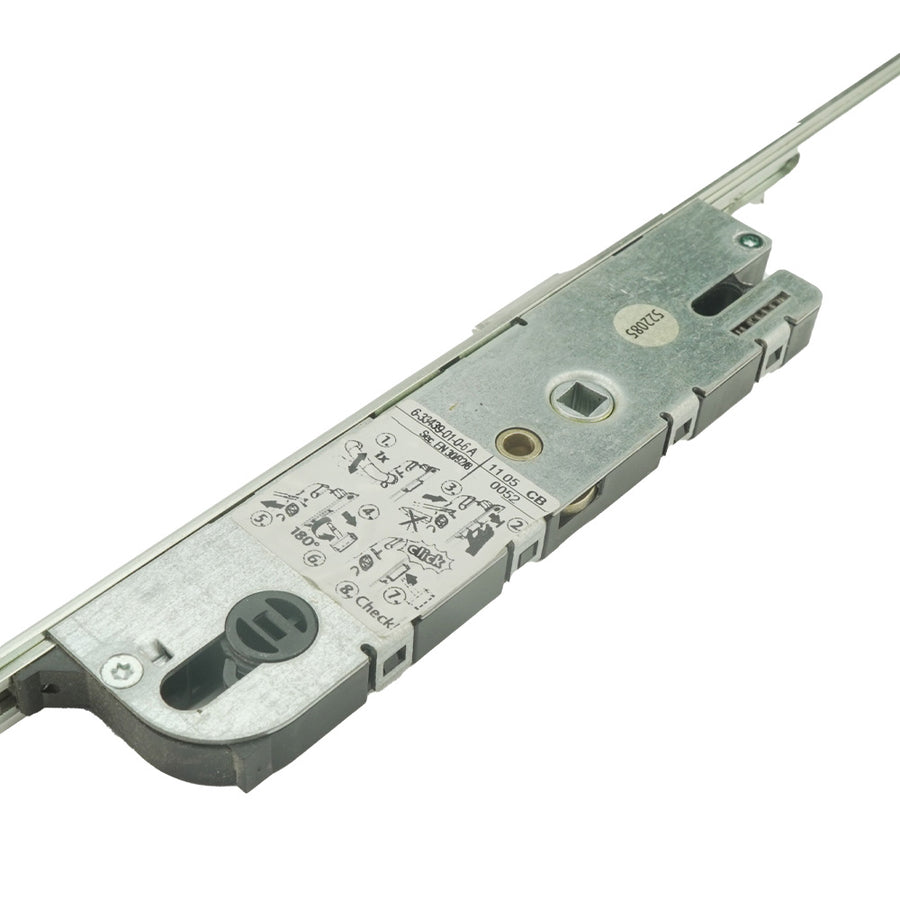

G-U Tripact Europa Active Multipoint Lock With Tongues
Part Number: $227.39 to $442.06G-U Tripact Europa Series 3 Point Locking Gear with Tongue Locks
Specifications:
- Series: Europa - Tripact Door Lock Gear
- Function: Tongue version, locks horizontally at top and bottom of door panel.
- Faceplate Width: 5/8 inch (16mm)

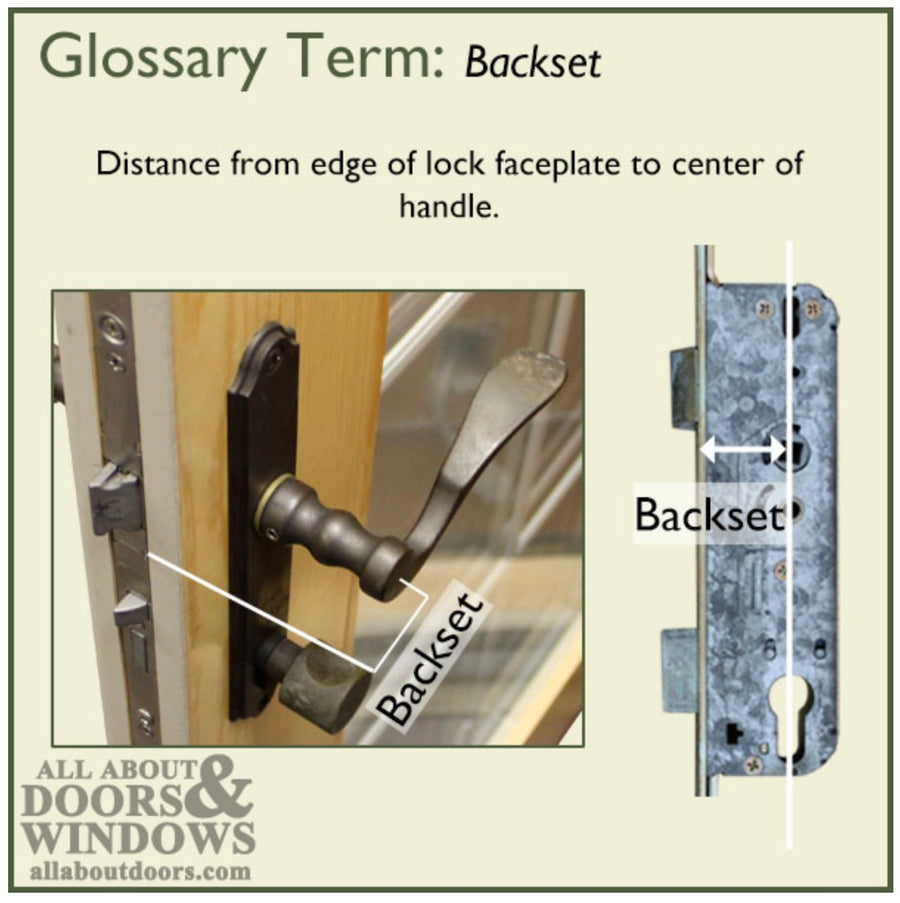

- Available Backsets: 1-3/16 in. (30mm), 1-3/8 in. (35mm), 1-9/16 in. (40mm), 1-3/4 in. (45mm), 2 in. (50mm), 2-5/32 in. (55mm)
- Handle to Cylinder Spacing (Centers): 3-5/8 inch (92mm)

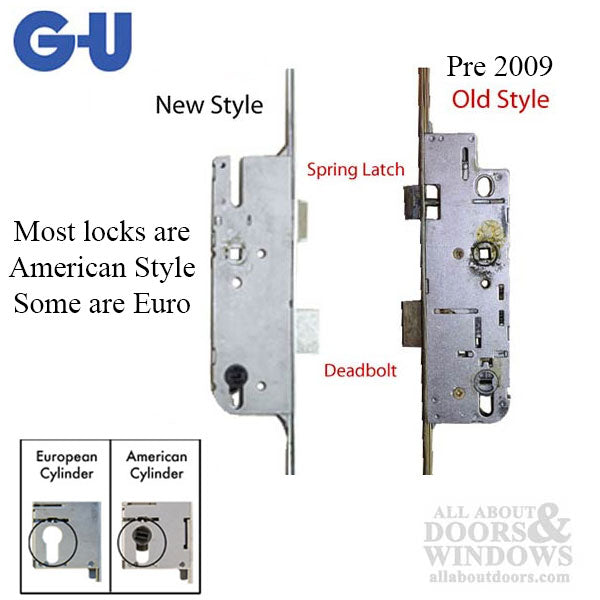

- Cylinder: US-Cylinder system with a 90 degree turn of key or thumbturn (American cylinder)
- Handle Position: Key below Handle (Europa)

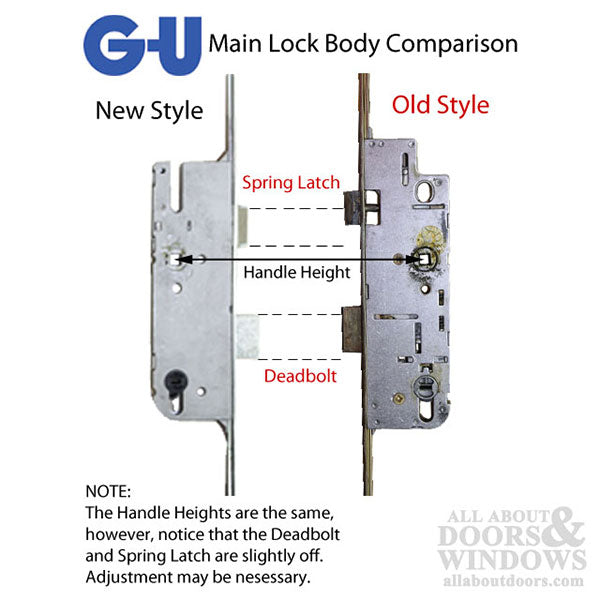

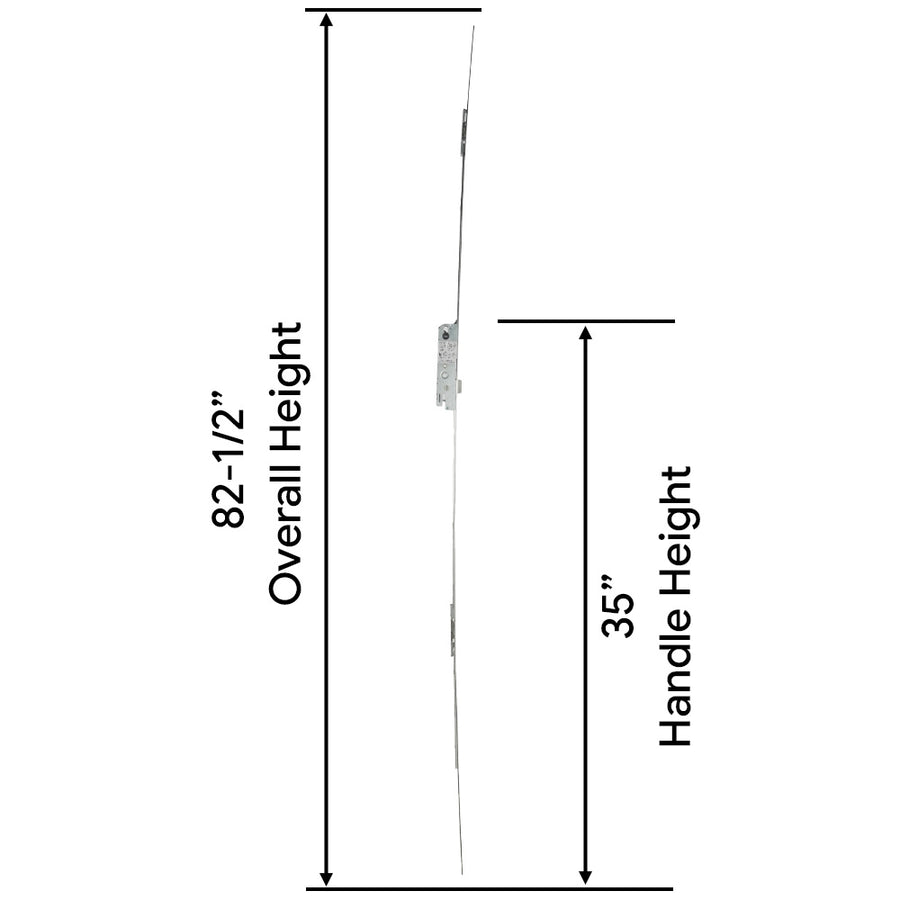

- Handle Height: Normally used with 35 inch (889mm) handle height
- Faceplate Finish: Silver ferguard or black
- Spindle Size: 8mm square
- Top Tongue Position: 23-3/16 inches (589mm) 23.18 up from handle
- Bottom Tongue Position: 23-7/8 inches (607mm) 23.87 down from handle
- Door Height: For use on doors up to 82 inches tall
- For installation screws see 6-U0050-00-0
This lock is croppable for shorter doors and can also be used with taller doors with added extensions (not included, listed below).
See additional information for related parts and features.
Related GU Parts:
500 mm Extension without Lock Point - G-16790-05-0-1 (our part 40325)
750 mm Extension w Lock Point - 6-33279-05-0-1
The Tripact 3-point locking system features heavy duty tongues for maximum security and protection against warping of the door panels.
Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder offering a variety of Schlage "C" keyway systems.
Key Features:
3-point, height adjustable, locking system
Two tongue bolts, deadbolt and latch
Extension with additional 750mm tongue is available for taller doors (6-33279-05-0-1)
Lever controlled engaging and releasing of tongues, deadbolt and latch
Locking by US-Cylinder system with a 90 degree turn of key or thumbturn
Non-handed, latch easily reversible
Heavy duty mortise construction with reinforced lever return spring system
Available in standard or black matte finish
Same hardware groove detail throughout our entire door lock program
Kit Includes:
Main lock body with tongue latches on top and bottom.
