16mm Auto Gear, 45/92, Roller @ 29.53", 1/2" D/B
Use the arrows or swipe left to view all images for this product
16mm Auto Gear, 45/92, Roller @ 29.53", 1/2" D/B
Part Number: $162.34HOPPE A/45/14/0914/R0750

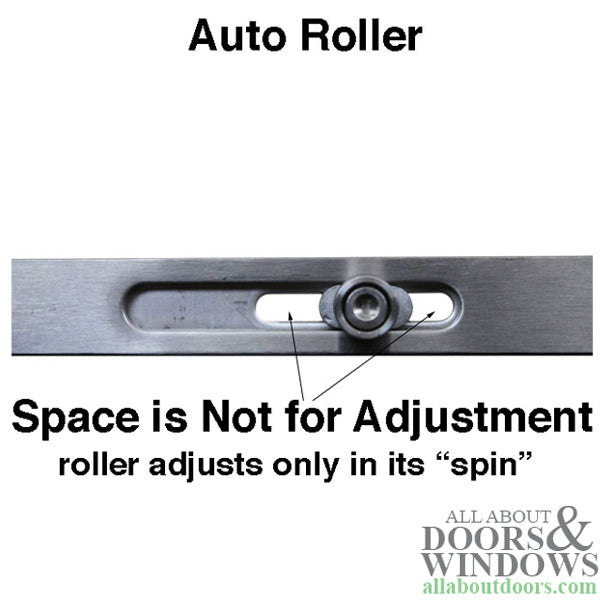

Automatic roller version bottom gear,
Function: Automatic Roller
Auto Roller Position: 6.54 inches above Handle

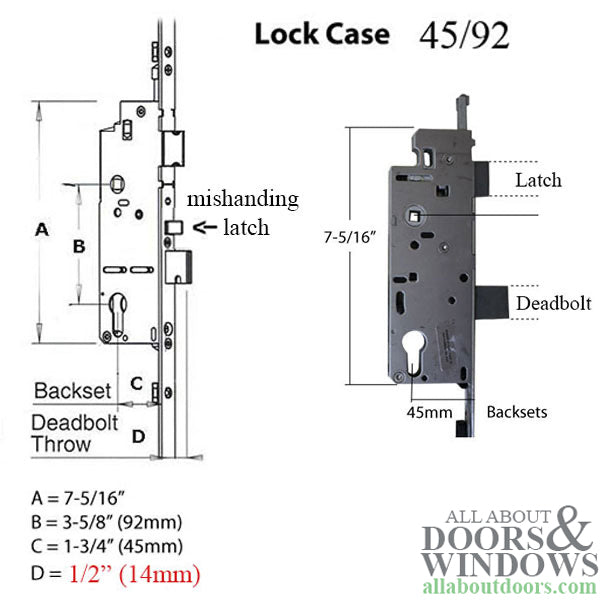

Faceplate: 5/8" (16mm),
Backset:1-3/4 (45 mm),
Deadbolt Throw: .55" (14mm);
36" handle Height,
Bottom Roller Position 29.53,
Maximum cutoff 2.36 inches
How to Operate Hoppe 3-point Automatic Lock with rollers:
To Open, Unlock door -
1. Turn Thumb turn to release lever from locked position
2. Push down on lever, this will raise locking rollers
3. Open Door
To Close, Lock Door -
1. Lift up on Lever to set roller
2. When you hear click, rollers are engaged in up position
3. Close door and rollers will automatically drop down into locked position
4. Turn thumb turn to secure rollers in locked position.
Change Handing:
1. Insert screw driver into hole behind latch ( latch may be pulled out with fingers )
2. Push latch out
3. Rotate latch
