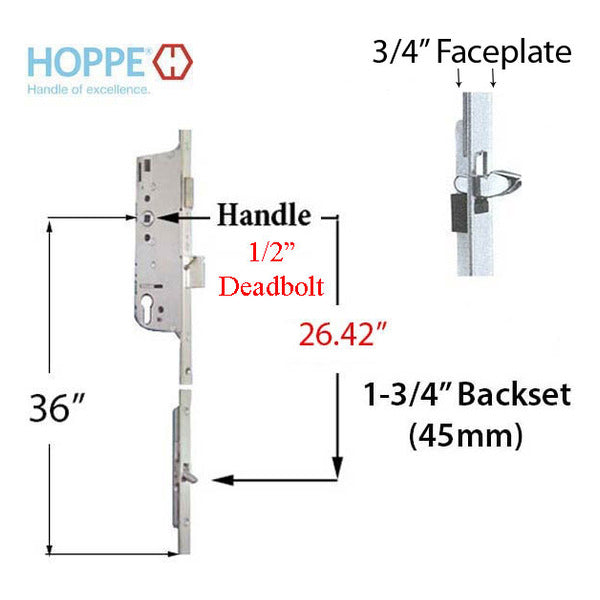

20mm Manual 45/92 Gear, Tongue at 26.42", 1/2" D/B, 36" HH
Use the arrows or swipe left to view all images for this product
20mm Manual 45/92 Gear, Tongue at 26.42", 1/2" D/B, 36" HH
Part Number: $166.66Hoppe HLS9000 20mm Manual 45/92 Gear, Tongue at 26.42", 1/2" D/B, 36" HH
Specifications:

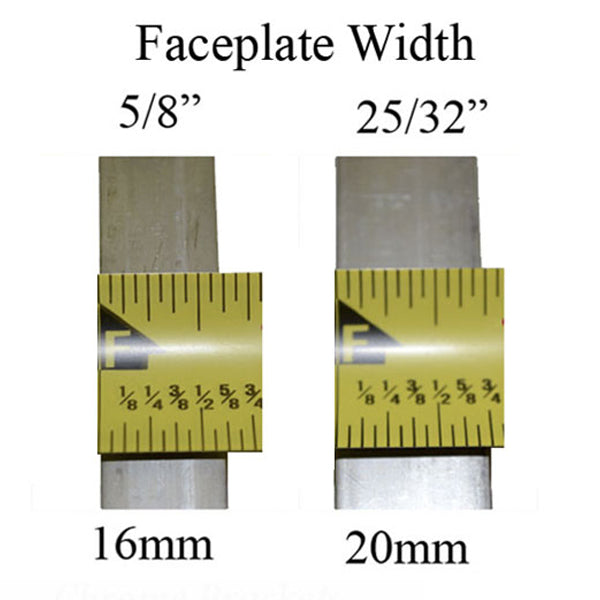

Faceplate Width: 3/4 inch (20mm) 0.787

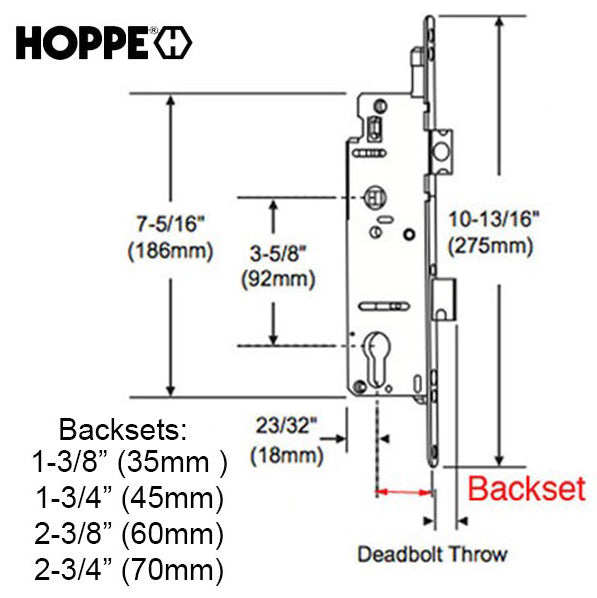

Backset: 1.77" (45mm),
Deadbolt Throw: .55" (14mm)
Handle Height: 36" (914mm),
Bottom Tongue Position: 26.42" (671mm)
Maximum Cutoff : 4.53" (115mm)
Number of Screws: 6
Includes:
As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function
To lock door, Lift handle and then turn thumbturn or Key to extend deadbolt
To unlock door, Turn Thumbturn or key and then depress lever.
Hoppe HLS9000 20mm Manual 45/92 Gear, Tongue at 26.42", 1/2" D/B, 36" HHSpecifications:
Faceplate Width: 3/4 inch (20mm) 0.787
Backset: 1.77" (45mm),
Deadbolt Throw: .55" (14mm)
Handle Height: 36" (914mm),
Bottom Tongue Position: 26.42" (671mm)
Maximum Cutoff : 4.53" (115mm)
Number of Screws: 6
Includes:
As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function
To lock door, Lift handle and then turn thumbturn or Key to extend deadbolt To unlock door, Turn Thumbturn or key and then depress lever.
