HLS7 Inactive 45/92 Custom Shootbolt - Window Mart

Hoppe HLS7 16 mm

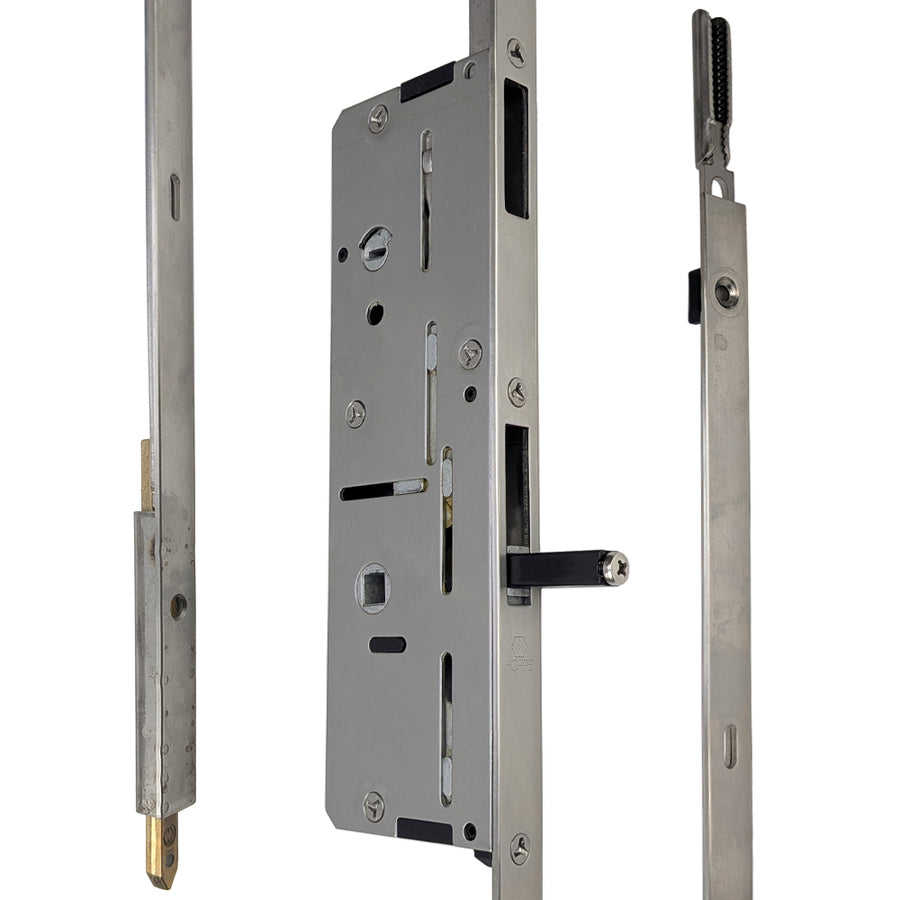

Inactive 45/92 Shootbolt Gear with Latch Blocker

This gear has a latch blocker that is 43.1mm built specifically for Window Mart that uses an astragal of 1.323"

Hoppe HSL7 Inactive / Passive Shootbolt Gear used with Double Doors.

The bottom shootbolt is attached to the gear with a 36 inch handle height.

This is the Lower Assembly only, a complete system requires a lower gear assembly and top extension. Top extensions come in 5 lengths for doors 76 to 120 inches.

This Inactive version shootbolt can be used without an astragal.

Note:  When using a door astragal, there are 4 possible choices, depending on astragal thickness - See Related Hardware Below.

• Application:  Lower Assembly
• Faceplate Width:  5/8 inch (16mm)
• Backset:  1-3/4 inch (45mm)
• PZ (Distance from center-of-handle to center-of-cylinder):  92 mm (3-5/8 inches)
• Handle Height:  36 inches (914mm)
• Shootbolt Throw:  1 inch (25.4mm)
• Number of screws:  6
• Handed:  No, fits left or right hand doors
• Handle Orientation:  Key/thumbturn above handle/lever

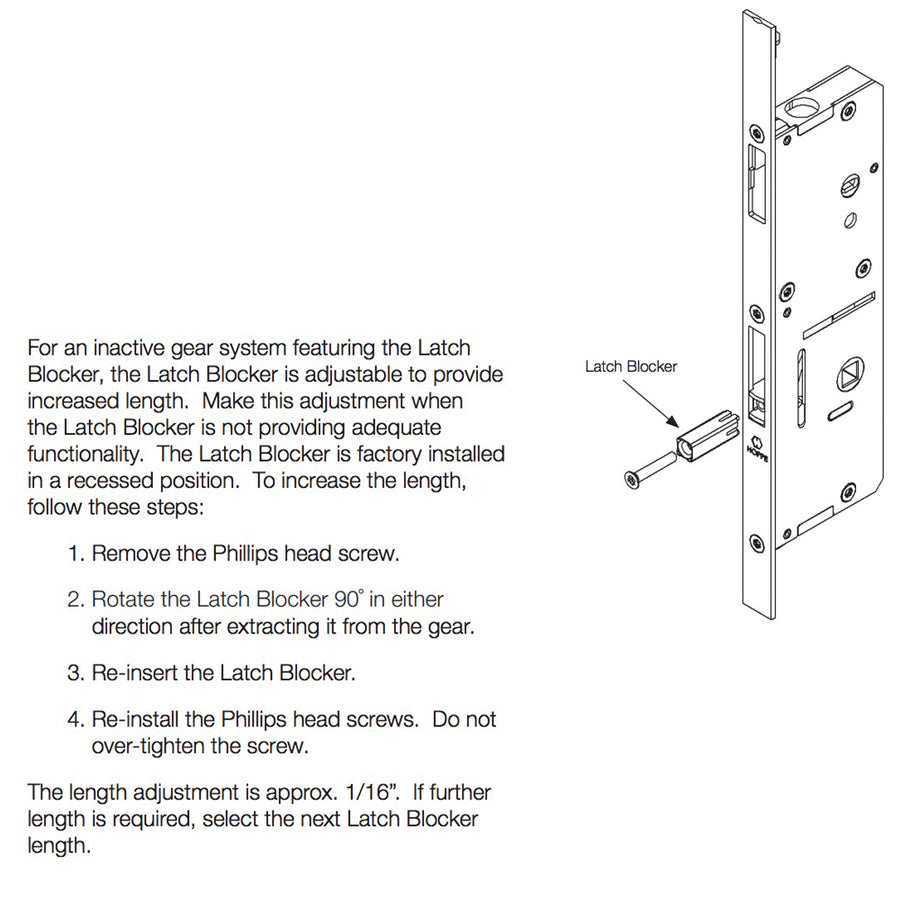

HLS®7 Series Inactive Gear Latch Blocker Instructions

The Latch Blocker is a design feature of the HLS®7 Series multipoint gear system which enables operational timing/sequencing between the active and inactive gears. The function of the Latch Blocker is to prevent the latch of the active system from engaging into the strike until the inactive system is activated. Once the inactive system is activated, the Latch Blocker moves out of the way, enabling the latch to engage into the strike. The multipoint lock mechanisms can then be activated.
