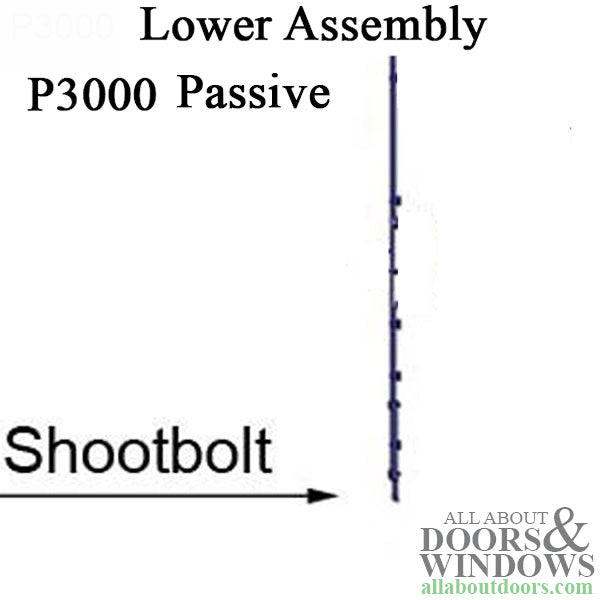

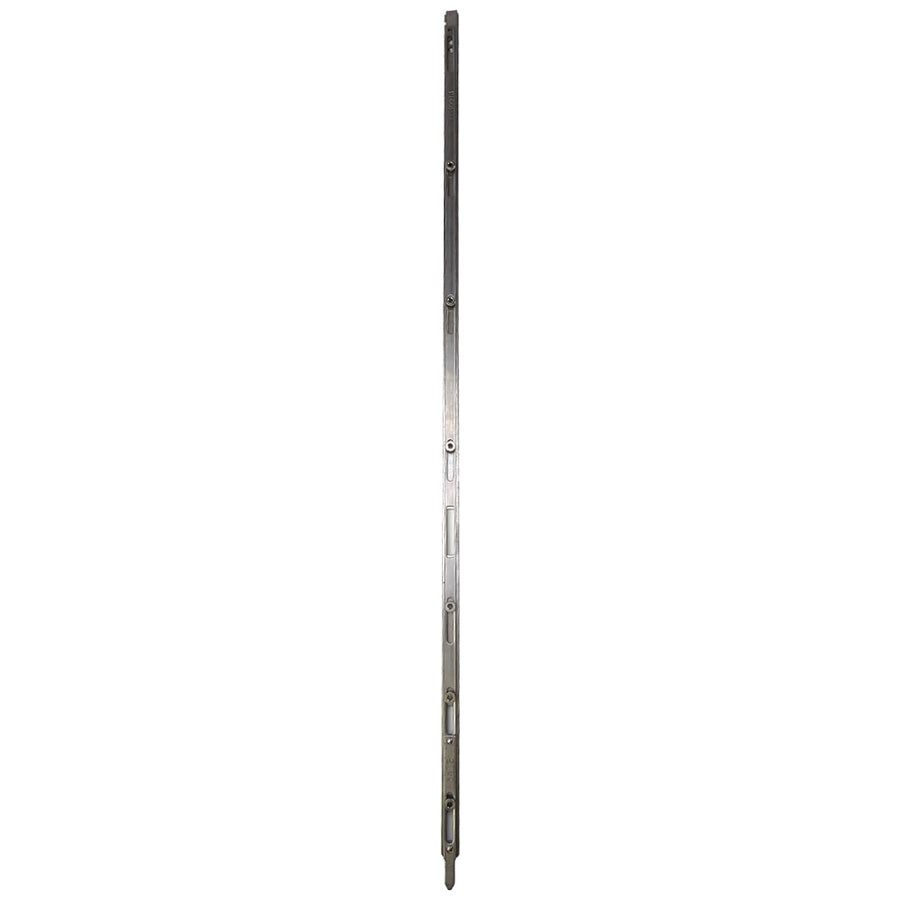

Amesbury P3000 Passive Lower Shootbolt Gear with Rhino Hook Receptacle
Use the arrows or swipe left to view all images for this product
Amesbury P3000 Passive Lower Shootbolt Gear with Rhino Hook Receptacle
Part Number: $150.80Key above handle

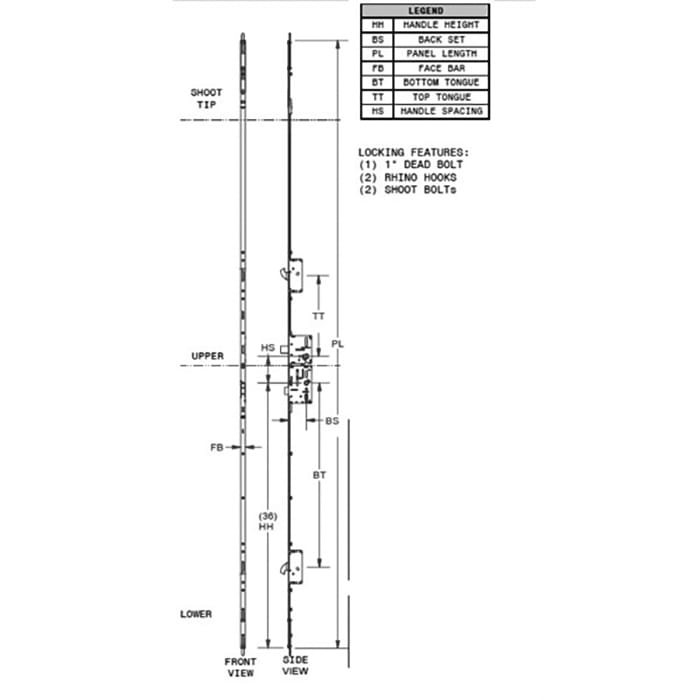

Faceplate width: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Handle Spacing: 3-5/8" (92mm)
Handle Height: 36" (914mm)
Lower Rhino Hook Receptacle: 24.87" (632mm)
This P3000 passive gear is used with multiple upper extensions depending on door panel height
Related parts
Upper (middle) extensions-
654530013UA for doors 69-82.5", Upper hook receptacle at 14.47"
654530014UA for doors 82-95.5", Upper hook receptacle at 27.47"
654530015UA for doors 95-108.5", Upper hook receptacle at 40.47"
654530016UA for doors 108-121.5", Upper hook receptacle at 53.47"
Top Shootbolt extension # 16-3468
Latch and Deadbolt Strike Plates: 3477-82
Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088
Amesbury P3000 Multipoint lock passive gear
Key above handle
Faceplate width: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Handle Spacing: 3-5/8" (92mm)
Handle Height: 36" (914mm)
Lower Rhino Hook Receptacle: 24.87" (632mm)
This P3000 passive gear is used with multiple upper extensions depending on door panel height
Related parts
Upper (middle) extensions-
654530013UA for doors 69-82.5", Upper hook receptacle at 14.47"
654530014UA for doors 82-95.5", Upper hook receptacle at 27.47"
654530015UA for doors 95-108.5", Upper hook receptacle at 40.47"
654530016UA for doors 108-121.5", Upper hook receptacle at 53.47"
Top Shootbolt extension # 16-3468
Latch and Deadbolt Strike Plates: 3477-82
Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088
