Discontinued Active or Inactive MP Lock Trim 85mm PZ, 55T/10 Euro Cylinder - Satin Nickel
Use the arrows or swipe left to view all images for this product
Discontinued Active or Inactive MP Lock Trim 85mm PZ, 55T/10 Euro Cylinder - Satin Nickel
SPECIAL SIZE - READ All INFORMATION
- Made by Mariani of Italy - Limited to existing Inventory - Special Size Trim
- Special Thickness Door Trim: Fits 2-1/4 inch doors
- Will fit other thickness with different screws, spindle or shorter Euro cylinder
Specifications:

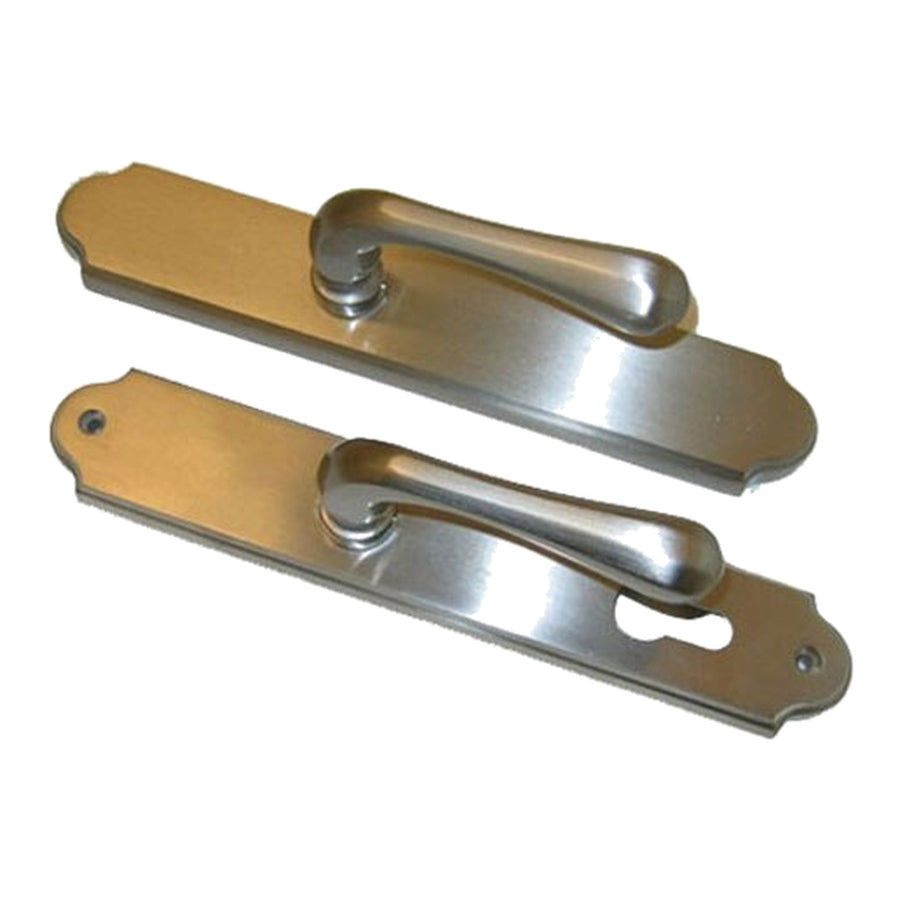

- Lever Style: Traditional / Transitional, Approx 4" length LeverA
- Color / Finish: Satin Nickel, US15

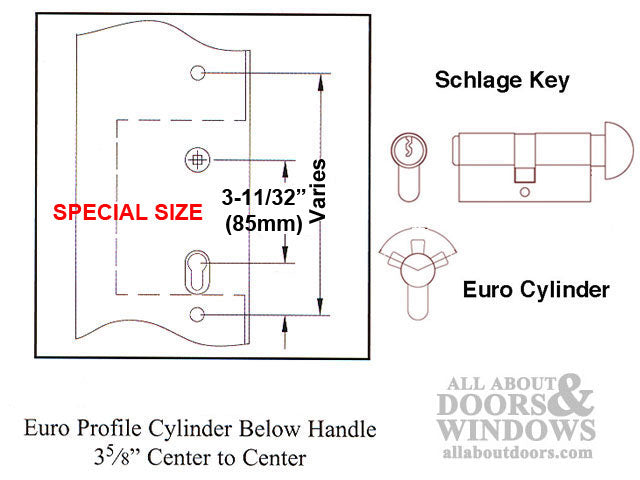

- Special Handle PZ: 3.346 decimal / 3-11/32 inch (85mm)A
- SPECIAL SIZE used by Pella on Cifial Single Point lock

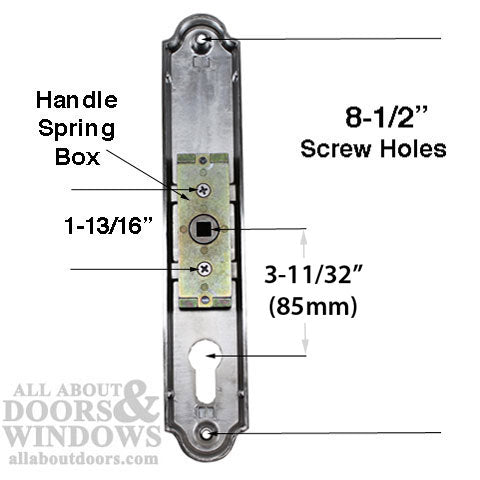

- Screw Hole Centers: 8-1/2 Inches
- Plate Measures: 1-11/16 Wide, 9-5/8 Long
- Plate Thickness: 1/2 Inch
- Installation Screws: 3-1/8 Inches ( 2-1/4 - 2-1/2 inch door )
- Installation Screws: 2-1/2 Inches (1-3/4 door )

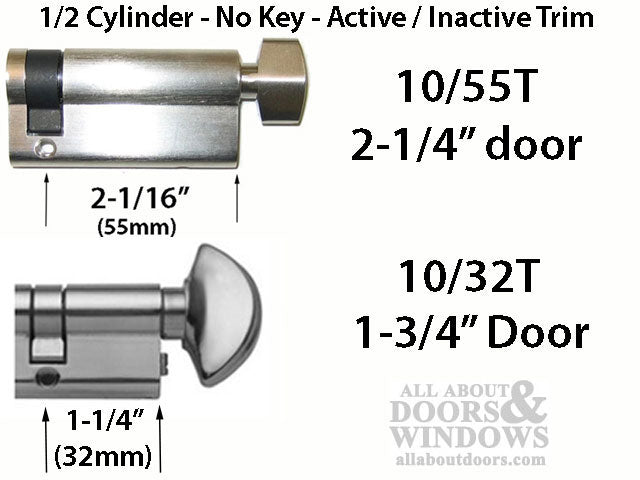

- Cylinder: Euro 10/55T (2-A1/4 inch door) or 10/32T (1-3/4 door)
- Spindles: 5/16 ( 8mm) x 4-15/16 inch ( 125mm) SquareA
- Type: Active, Non-keyed. Locks from inside, no key access from outside
- Includes: Two Door Escutcheon Plates, Non-Keyed 10/50T Cylinder, Straight Levers and Mounting Gasket and One Hardware Pack with Spindle and screws for 2-1/4" door
NOTE:
If your door is standard 1-3/4" thick, you will need to get screws at your local hardware store and cut spindle to length.
