SPECIAL SIZE - READ All INFO
Made by Mariani of Italy - Limited to existing Inventory - Special Size Trim
Special Thickness Door Trim: Fits 2-1/4 inch doors
Will fit other thickness with different screws, spindle or shorter Euro cylinder

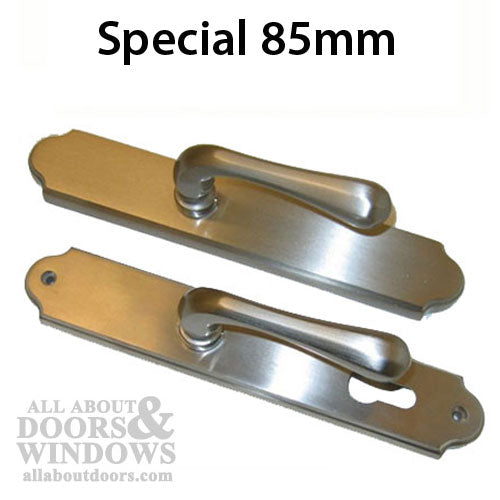

Lever Style: Traditional / Transitional, Approx 4" length Lever
Color / Finish: Satin Nickel , US15

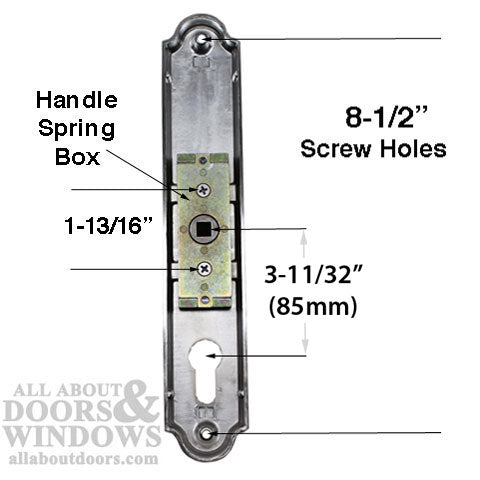

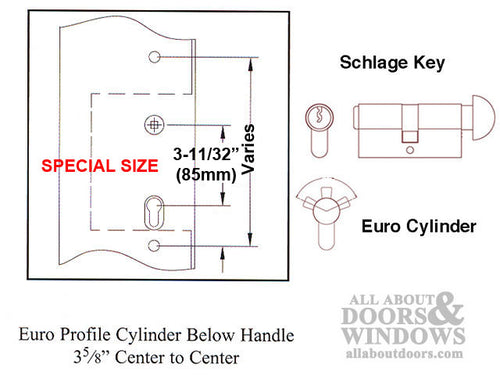

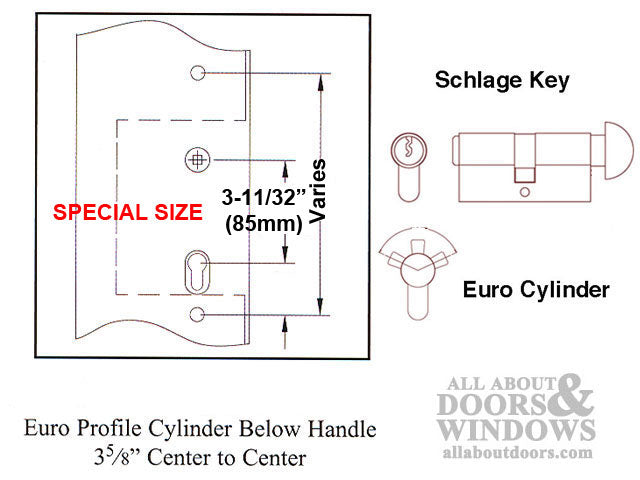

Special Handle PZ: 3.346 decimal / 3-11/32 inch (85mm)
SPECIAL SIZE used by Pella on Cifial Single Point lock
Screw Hole Centers 8-1/2 inch
Plate Measures: 1-11/16 Wide, 9-5/8 Long
Plate Thickness: 1/2 inch
Installation Screws: 3-1/8 inch ( 2-1/4 - 2-1/2 inch door )
Installation Screws: 2-1/2 inch (1-3/4 door )

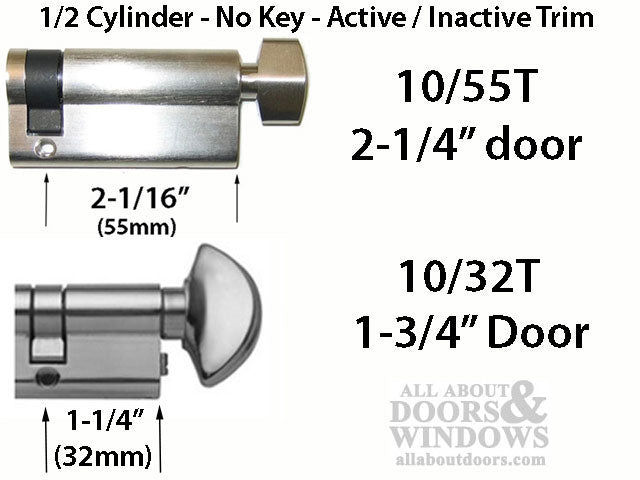

Cylinder: Euro 10/55T (2-1/4Ó door) or 10/32T (1-3/4 door)
Spindles: 5/16 ( 8mm) x 4-15/16 inch ( 125mm) Square

TYPE: Active, Non-keyed. Locks from inside, no key access from outside

Includes:
(2) Door Escutcheon Plates, Non-Keyed 10/50T Cylinder, Straight Levers and Mounting Gasket
(1) Hardware Pack with Spindle and screws for 2-1/4" door
NOTE: If your door is standard 1-3/4" thick, you will need to get screws at your local hardware store and cut spindle to length.
