Truth Rectangular Spring Action Foot Bolt Pack for Patio Door

Truth Rectangular spring action foot bolt pack for patio door  -  Long 25/32 inch (20mm) Bolt

This foot bolt has four screw holes, plastic triangular base and spring action 5/16 inch diameter bolt.

The bolt protrudes .79 inch when extended in locked position.

This pack includes an auxiliary strike plate and a foot bolt keeper.

Body Height: 1-3/4 Inch

Body Width: 3-3/16 Inch

Overall Height: 2-5/8 Inch

Bolt Diameter: 5/16 Inch

Bolt Extension: .79 Inch

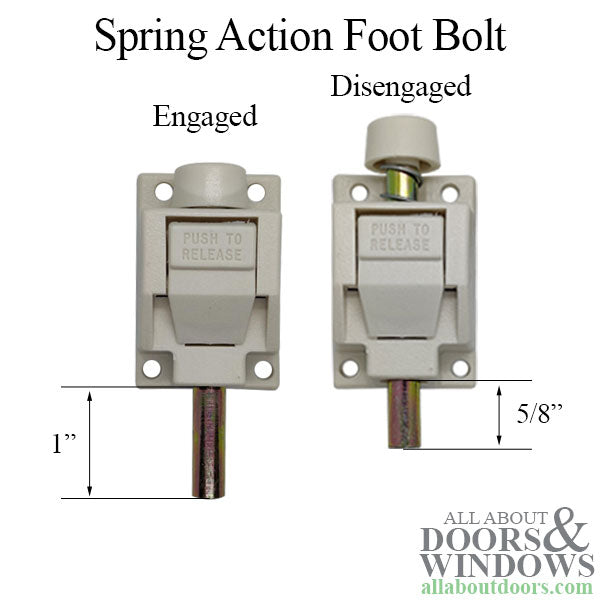

Bolt Throw: 1 inch when locked

Hole Center: 1-7/8 inch (bottom holes), 2-1/8 inch (top holes)

Hole Pattern: 4 Hole

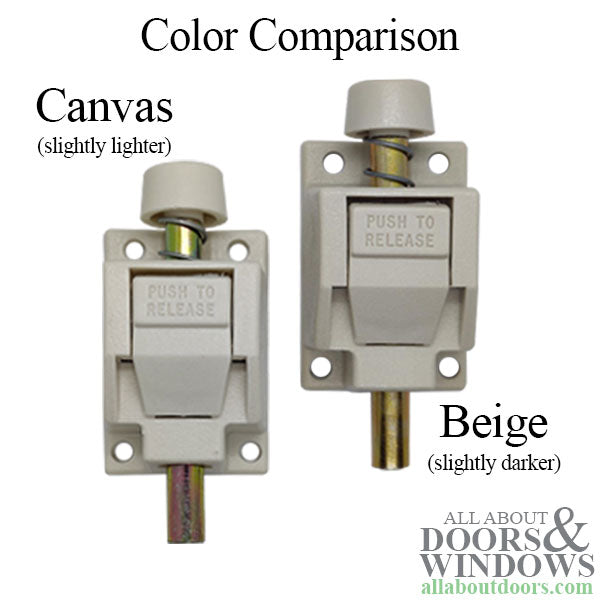

Color Options:

Beige

Canvas

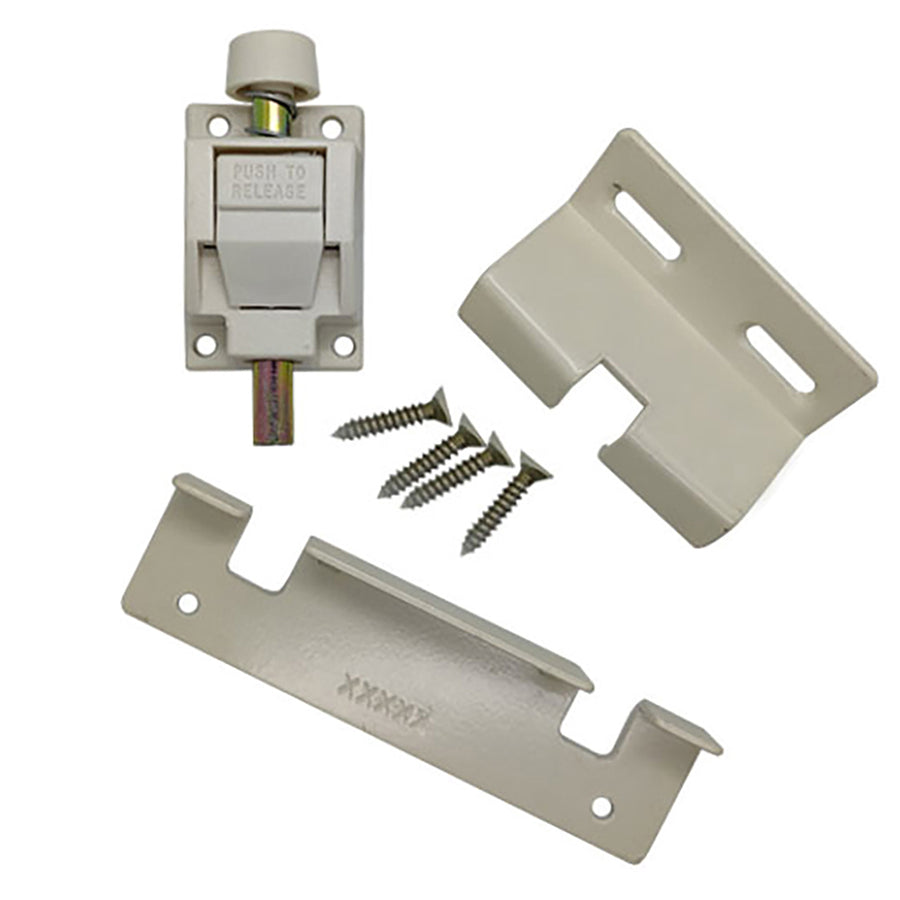

Contains 1 foot bolt, 1 auxiliary strike plate, 1 foot bolt keeper, installation screws

Priced and sold as a pack.

Note: Truth foot bolts are available with standard .56 inch  and long .79 inch bolt

15301 - Triangular Base, .56 inch bolt

15302 - Rectangular Base, .56 inch bolt

15307 - Rectangular Base, .79 inch bolt

15303 - Strike Plate, 2 hole Flat

15304 - Strike Plate, 1 Hole Offset

15305 - Strike Plate, 2 Hole Angled
