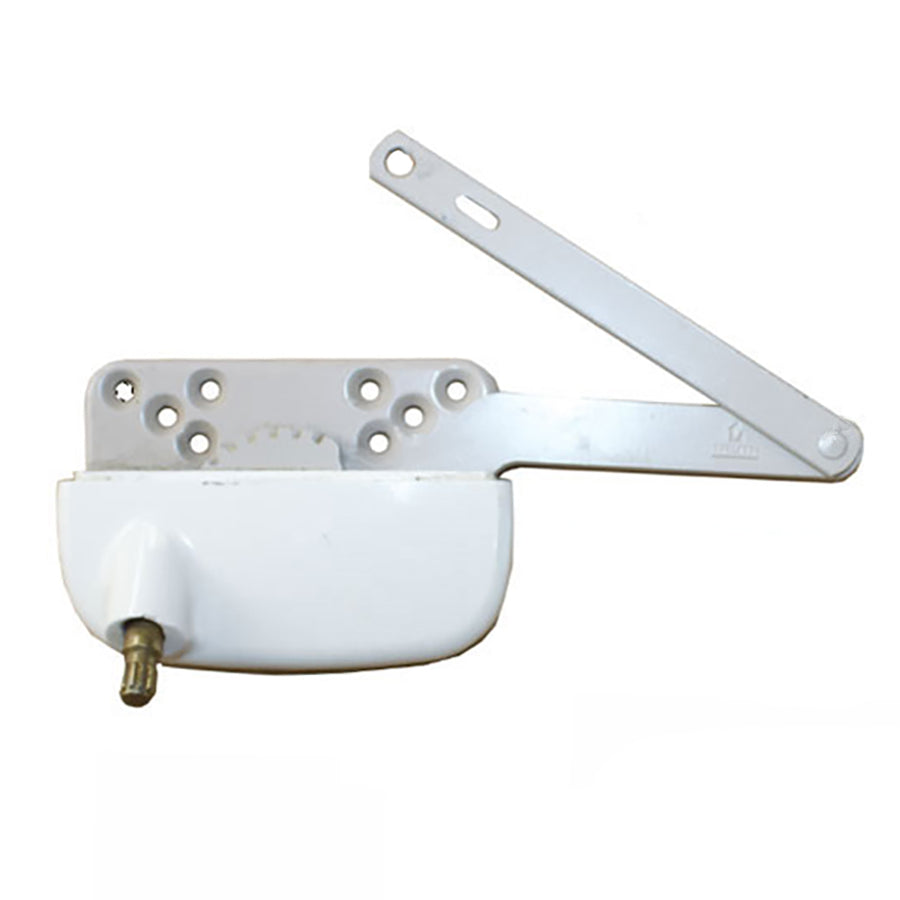

Truth 15.30 Ellipse Split Arm Operator, Straight 4-1/2" Link, Left Hand
Use the arrows or swipe left to view all images for this product
Truth 15.30 Ellipse Split Arm Operator, Straight 4-1/2" Link, Left Hand
Part Number: $19.95 to $24.44This product has been discontinued. Replace with #50.60.00.211.
Additional components required with this replacement:
Cover/Handle #55308 and Stud/Snap-On Bracket #551094.
It is a popular choice among various window manufacturers, including Weather Shield, who utilize it on their Visions 2000 vinyl casement windows. This operator offers reliable performance with a modern aesthetic.
Application: Casement windows, Sill Mount
Operator Style: Ellipse
Window Type: Wood or Vinyl
Operator Type: Split Arm with Straight link
Arm Length: 5 inch

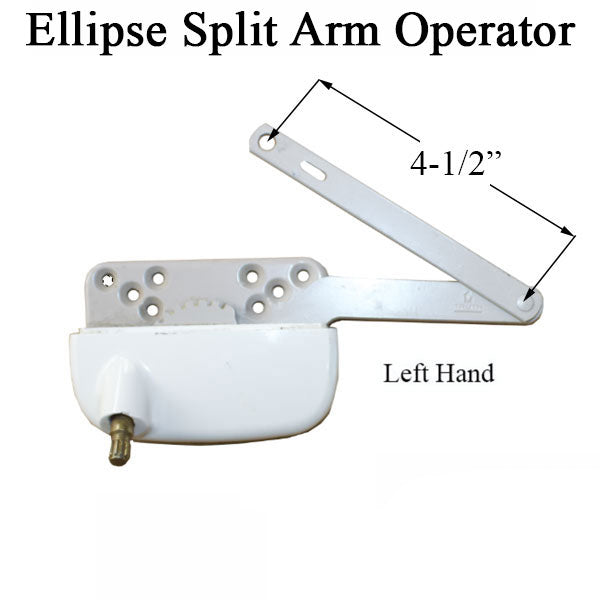

Link Length: Rivet to Stud post Hole: 4-1/2 inch
Link Mount: Mounted on Top of main arm
Detach clip: None

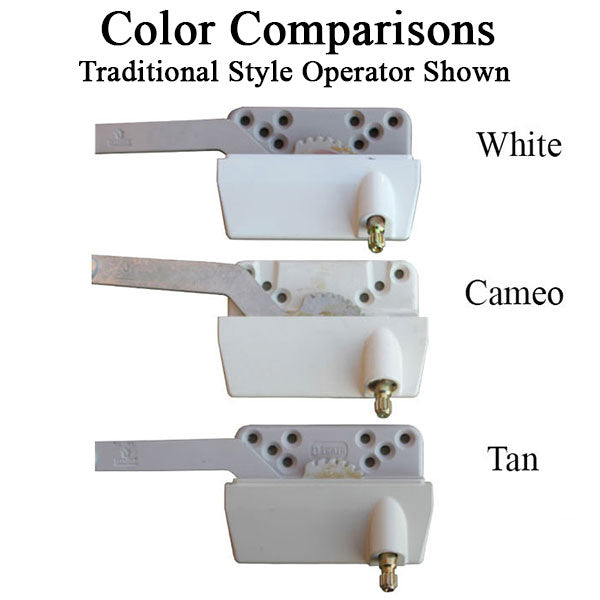

Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown

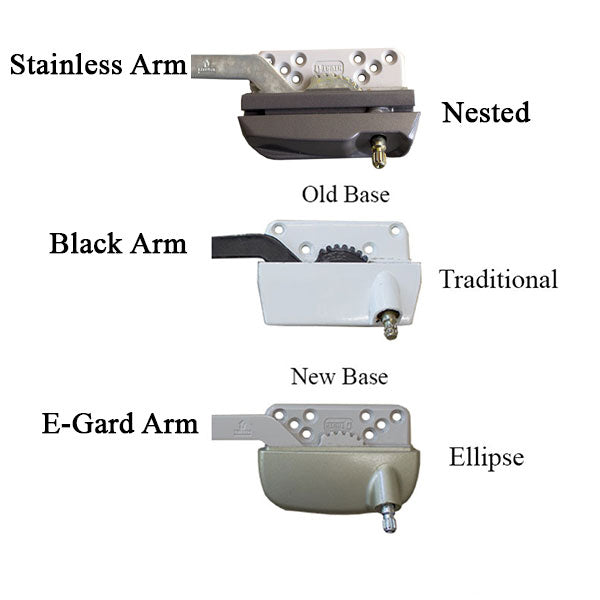

Material: Zinc Die Cast Body with E-Gard or stainless steel arms
Markings: Main Body, Truth # 45251
Markings on Main Arm: #40351
Markings: Straight Arm link, Truth #31850
Sold Each, No screws or crank handle
Note 1: There are 4 Arm / Link configurations for this Truth Window crank operator
1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom - 7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip

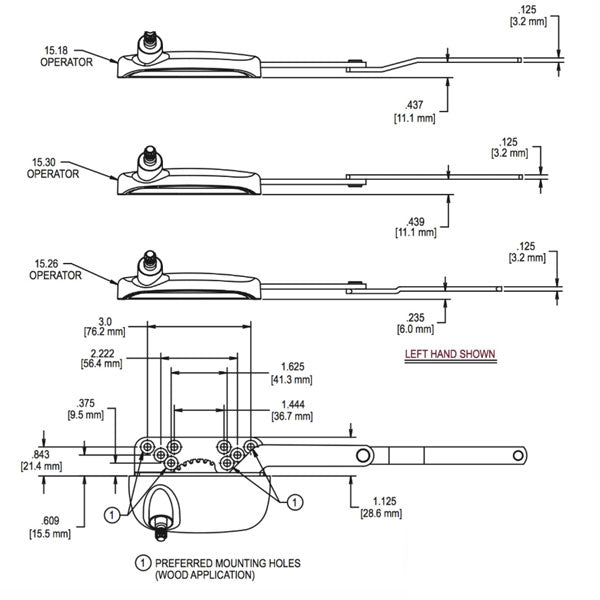

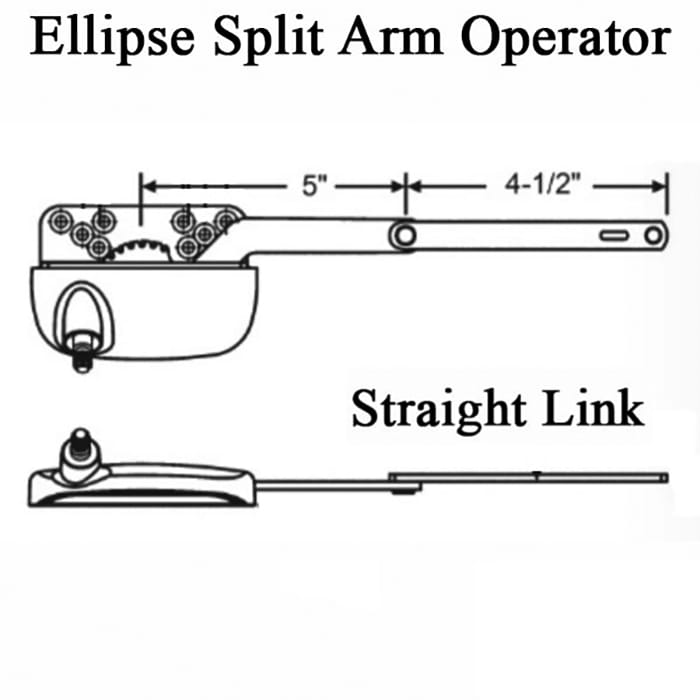

NOTE 2: See additional Pictures for line drawings
Related Parts:
55311 - Standard Crank Handle
55317 -Contour crank Handle
55312 Folding handle
55313 T-Handle
