Wright 4 Post Storm Door Handle Set with Keyed Deadbolt
Use the arrows or swipe left to view all images for this product
Wright 4 Post Storm Door Handle Set with Keyed Deadbolt
Part Number: $89.30This handle set replaces many brands including Andersen, Cole Sewell, Larson, Emco, Ideal, Gerkin and other storm door companies.
Application: wood or metal storm doors
Door Thickness: 3/4' to 1-1/4 inch thick doors
Screw Holes: 1-3/4 inch, c-c for handle and Deadbolt
* 3-1/8 from center of handle to center of dead bolt.
* 4-7/8 From top to bottom screw.
Inside Push Paddle, non locking
Inside Deadbolt, High Profile, 3/4 inch from base
Escutcheon plate, Low profile with integral keyed deadlock.
Color / Finish: Interior handle with color matched interior and exterior parts.
Priced and sold as a package.

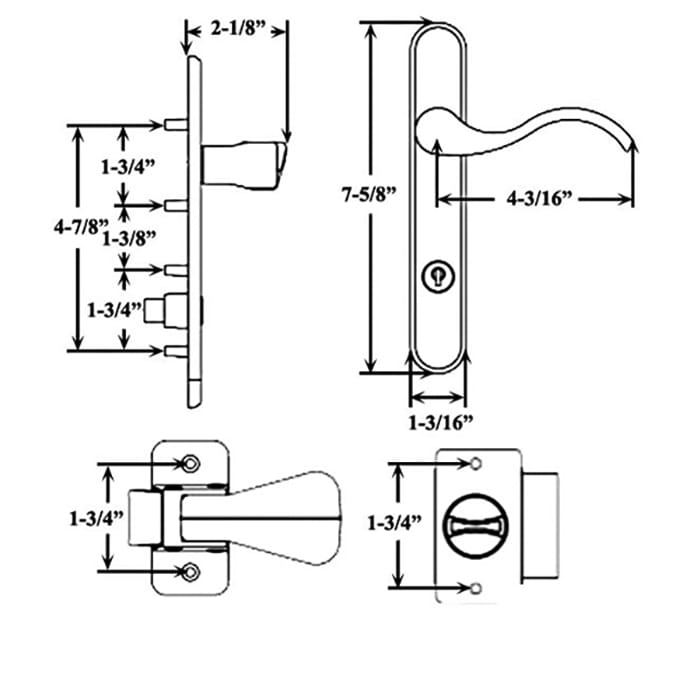

* Please review additional images for other measurements.
Installation Note:
The key cylinder is not pre-installed.
After installing cylinder rotate the key 180 degrees and remove.
After cylinder is installed and key removed, install storm door handle
Note: Drill hole patterns vary on storm door lock hardware, check your hole pattern.
4-Post Storm Door Handle Set, Accents Brighton Serenade - Choose Color

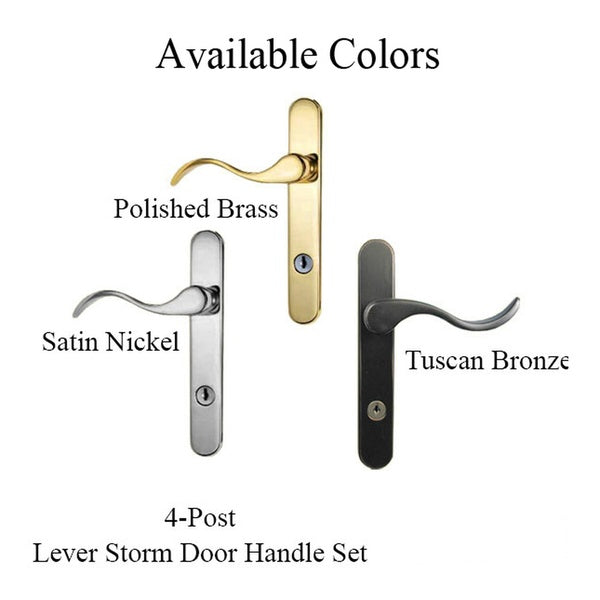

Available Colors: Polished Brass, Satin Nickel and Tuscan BronzeDiscontinued colors: Antique Brass
Wright 4-Post Surface mount storm door handle with keyed deadbolt.
For wood or metal storm doors 1-1/4 inch thick doors.
Low profile escutcheon plate with integral keyed deadlock.
Wide paddle interior handle; Color matched interior and exterior parts.
Note: Drill hole patterns vary on storm door lock hardware, check your hole pattern.
3-1/8 from the center of the handle to the center of the deadbolt.
4-7/8 From top to bottom screw.
High-rise deadbolt 3/4 inch from the base.
Please Review additional images for other measurements.
This handle set replaces many brands including Andersen, Cole Sewell, Larson, Emco, Gerkin, and other storm door companies.
Installation Note:
The key cylinder is not pre-installed. After installing the cylinder rotate the key 180 degrees and remove it.
After the cylinder is installed and the key removed, install the storm door handle
