Storm Door Complete Mortise Lock and Handle with 0.875 Inch Backset
Part Number: $88.68 to $104.42Mortise Lock, Off Center Cylinder, 7/8 inch Backset
Complete Universal Solid brass curved style lever handle set mortise type storm door handleset for Andersen, Pella, Larson, Wright and other.
Specifications:
- Door Thickness: Fits 1-1/4 to 1-5/8 inch
- Escutcheon Trim Plate Screw Spacing: 7-1/4 inch
- Mortise Body Backset: 7/8 inch
- Mortise Screw Spacing: 7-1/16 inch
- Faceplate Length: 7-3/4 inch
- Euro Cylinder: Offset cam, re-keyable Kwikset KW-1 two keys
- Cylinder Length: 2-1/2 inches ( 1/2" inside - 1-1/2" outside )
- Deadbolt Throw: Extends 5/16 inch

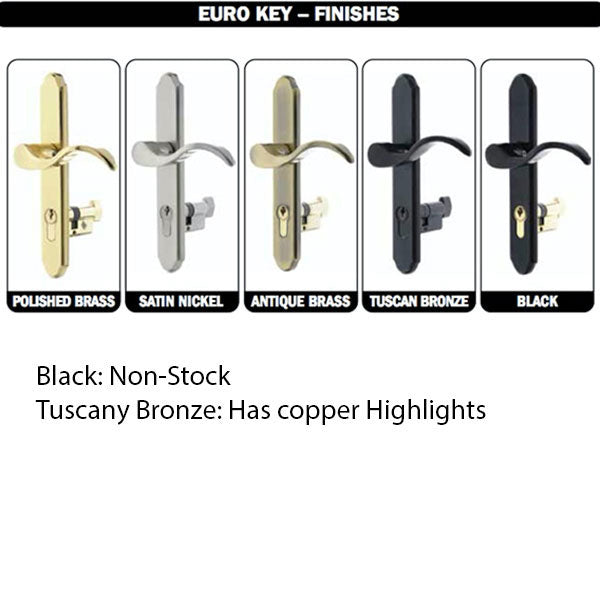

- Available Finishes: Polished Brass, Antique Brass, Satin Nickel, Tuscan Oil Rubbed Bronze

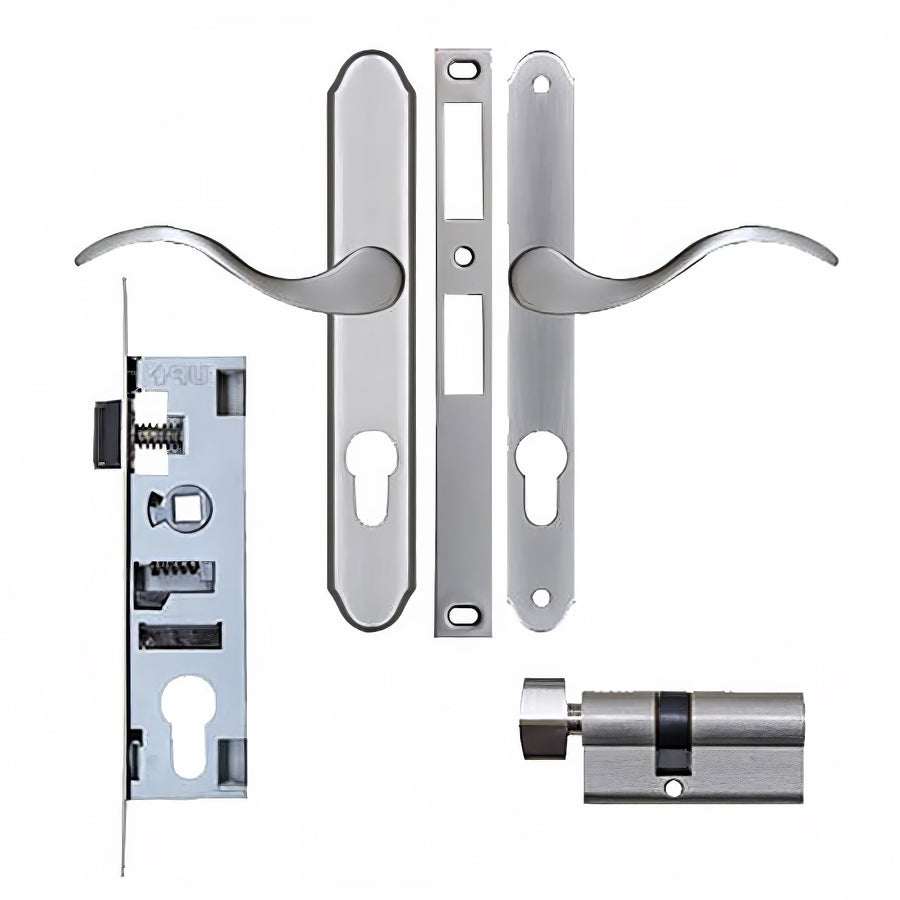

- Kit Contents: Flat interior escutcheon plate, raised exterior escutcheon plate, mortise body, euro offset cylinder with 2 keys, strike plate, handles, installation screws (for various door thickness), spindles, set screws, bushings, allen wrench.
Priced and sold as a package.

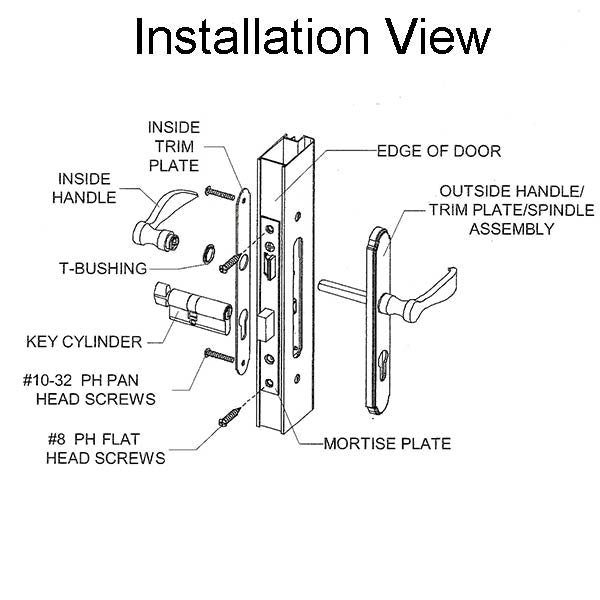

Best method to relocate escutcheon plate screw holes, if needed.
1. Install lock case
2. Install spindle into handle, tighten set screw.
3. Place handle with inside trim plate (thumb turn) into square hole in lock case.
4. Center trim plate and mark screw holes with pencil.
5. Remove and do the opposite side of door.
6. Center Punch and Drill new 3/8 screws holes.
7. Install lock set according to directions.Wright Number: MT115SR1 US11P / MT115SR1 US12P
