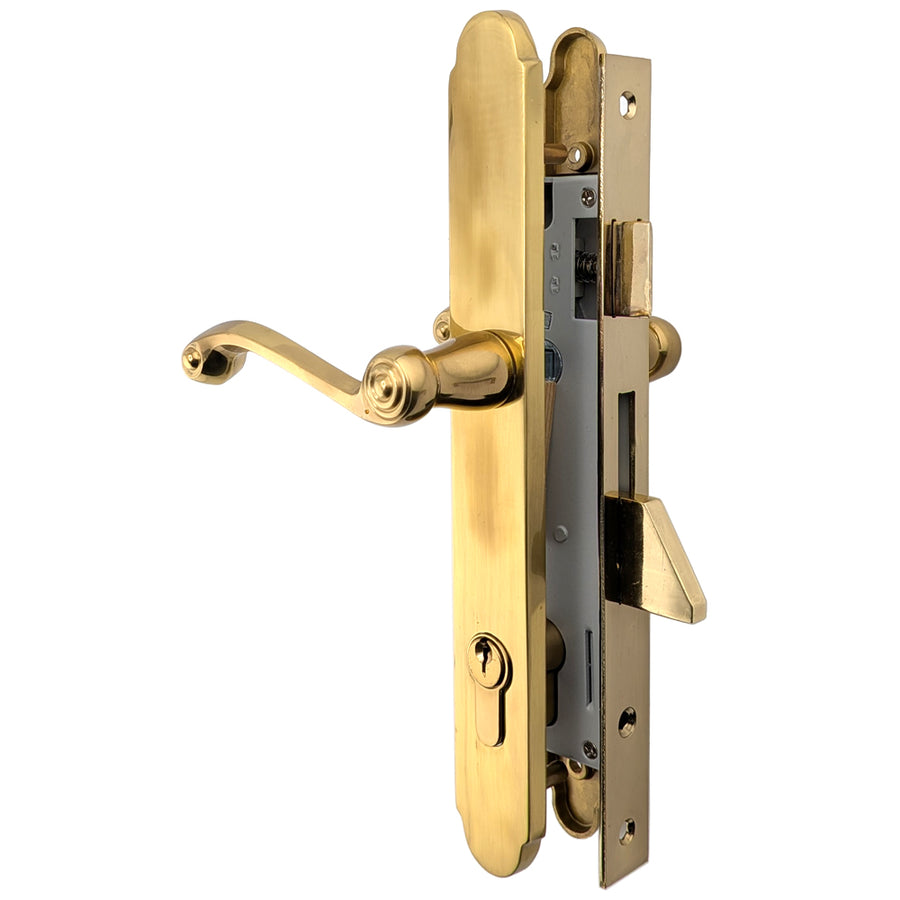

Marks USA Slimline Mortise Lock Set for Storm Doors
Part Number: $212.85CEL "Slimline" Mortise Lockset - Used with Steel Security and Storm doors.
Made by CEL - Can be used as a replacement for the Marks SlimLine series

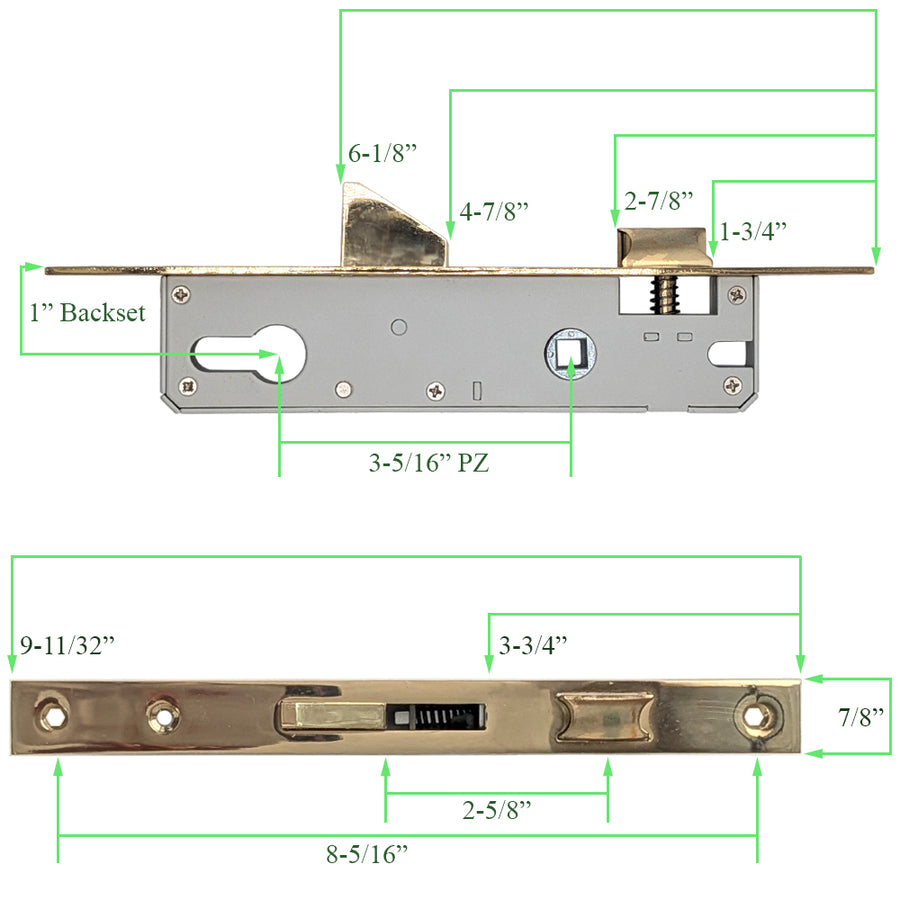

Mortise Lock Backset: 1 inch (25mm)
Deadbolt Throw: 15/16 inch (25mm)
Faceplate Measures: 7/8 inch by 9-11/32 inch.
Faceplate Screws: 8-5/16 inches

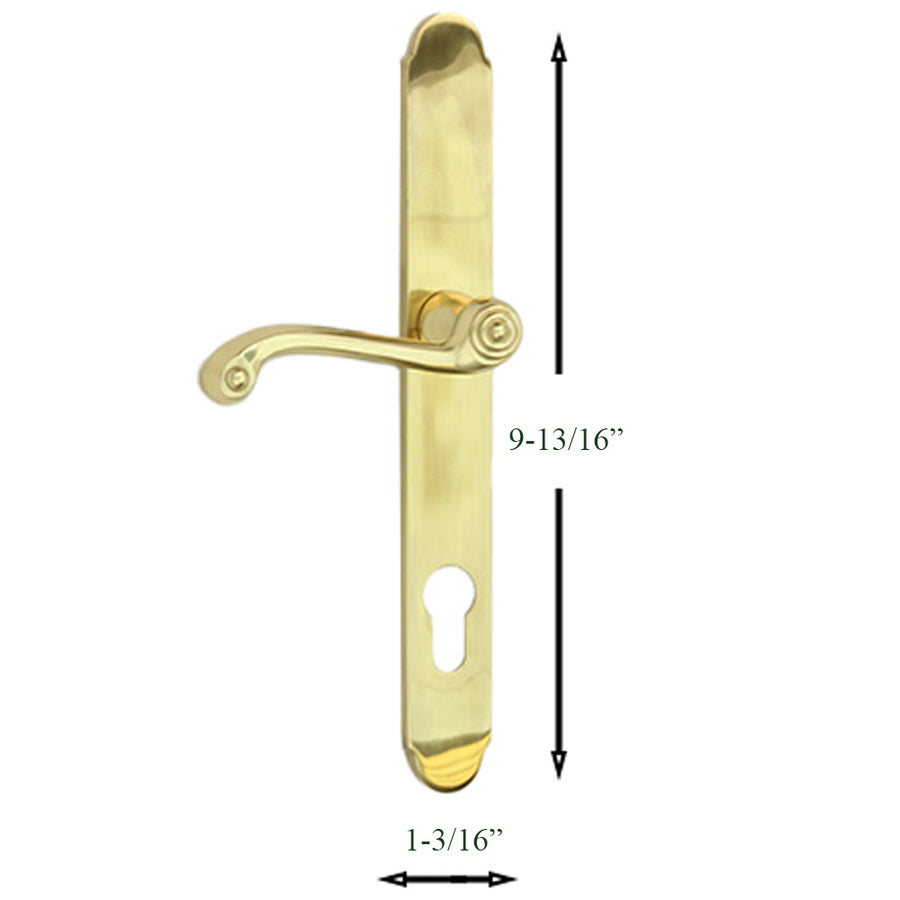

Escutcheon Plate: 1-3/16 by 9-13/16 inches
Escutcheon Plate Screws: 7-7/16 inches
Handle to Cylinder Spacing: 3-5/16 inches
The Center of the spring latch to the center of the Deadbolt is 2-5/8 inches.
Handing CAN BE REVERSED (for Left or Right hand Doors)

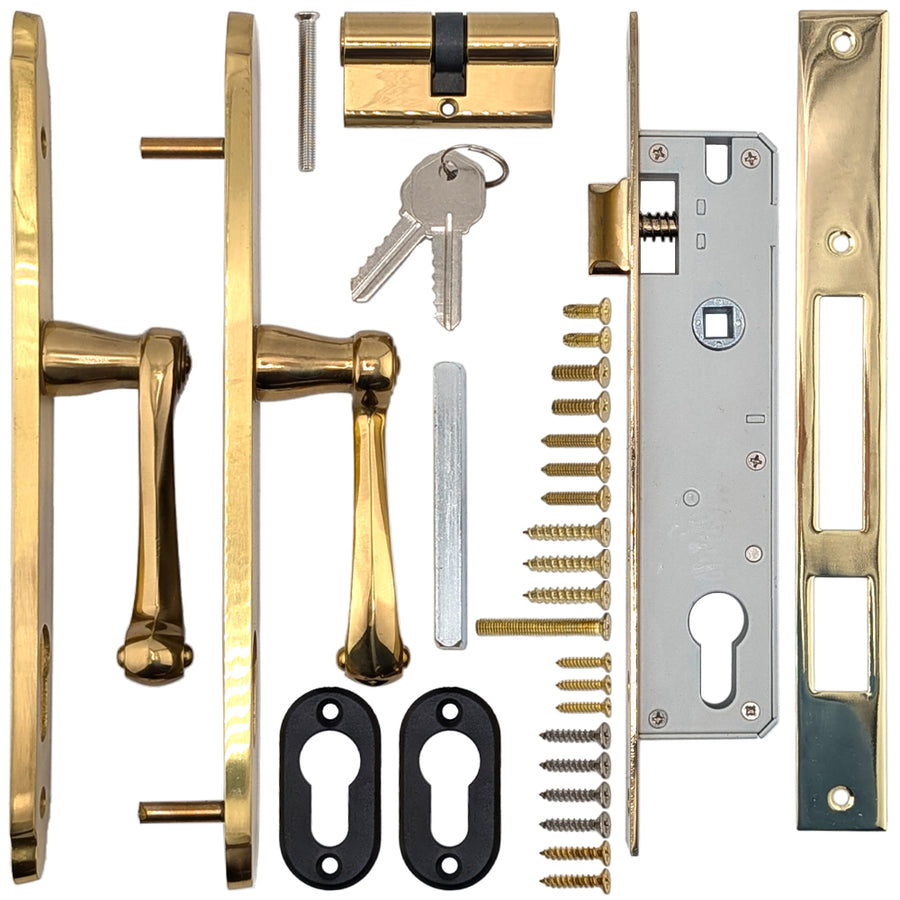

Double Cylinder Rekeyable lock with 2 keys, Kwikset KW1 Keyway.
Related Lock Hardware:
301059 - Marks Brand Slimline, 4 finishes
301080 - CEL Brand Slimline 1 inch (25mm) Backset - Brass
Note: CEL & Marks have different screw hole patterns.
CEL "Slimline" Mortise Lockset - Used with Steel Security and Storm doors.
Made by CEL - Can be used as a replacement for the Marks SlimLine series
Mortise Lock Backset: 1 inch (25mm)
Faceplate Measures: 15/16 inch by 9-1/2 inch.
Faceplate Screws: 8-1/4 inches
Escutcheon Plate: 1 x 9-3/4
Escutcheon Plate Screws: 7-7/16 inches
Handle to Cylinder Spacing: 3-5/16 InchesThe Center of the spring latch to the center of the Deadbolt is 2-1/2 inches. Handing CAN BE REVERSED (for Left or Right hand Doors)
Double Cylinder Rekeyable lock with 2 keys, Kwikset KW1 Keyway.
Related Lock Hardware:
301059 - Marks Brand Slimline, 4 finishes
301080 - CEL Brand Slimline 1 inch (25mm) Backset - Brass
Note: CEL & Marks have different screw hole patterns.
