Sliding Patio Door Roller With F Tab Steel 1.5 Inch Steel Wheel

Part Number:13022 Price: $15.31

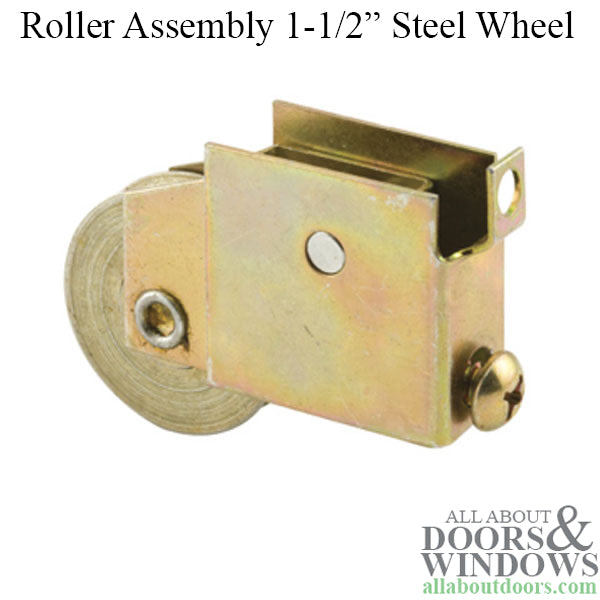

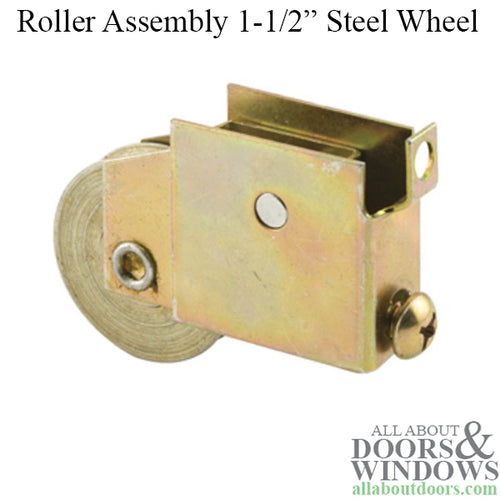

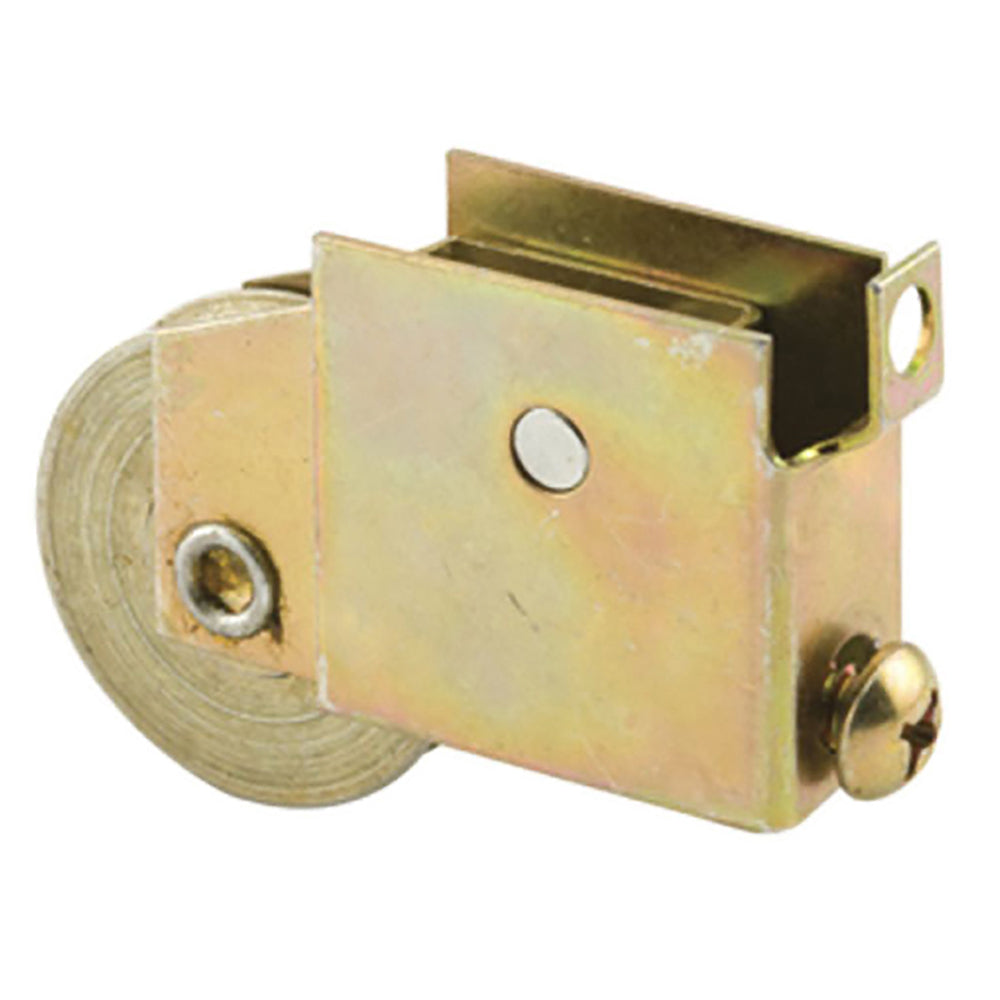

Sliding Patio Door Roller With F Tab Steel Housing 1.5 Inch Steel Wheel

This 1-1/2 inch steel ball bearing roller has an adjustable steel housing assembly. Used by Hollyview, Fullview, and other glass door manufacturers.

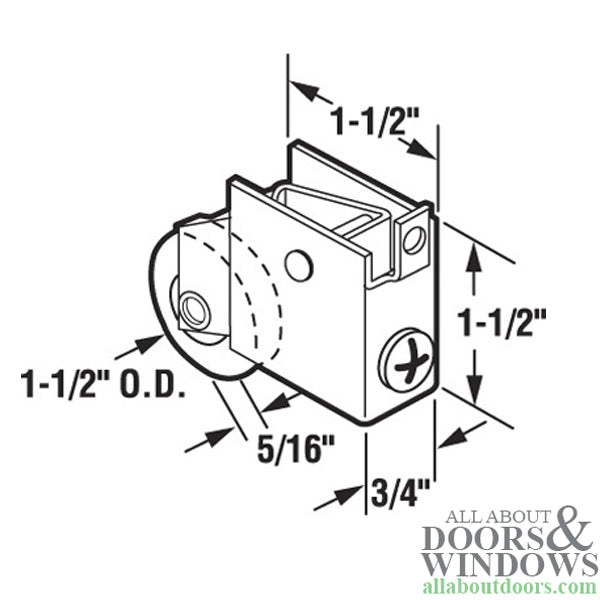

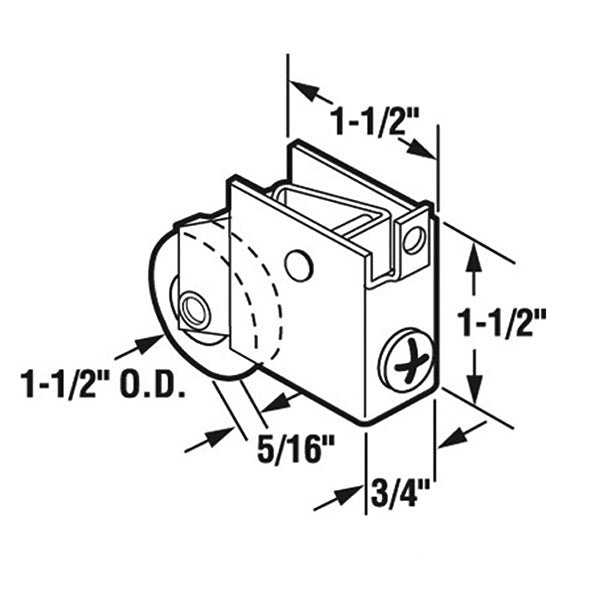

Specifications:

  • Housing Thickness: 3/4 Inch
  • Housing Length: 1-1/2 Inch
  • Housing Height: 1-1/2 Inch
  • Diameter: 1-1/2-inch
  • Housing Tab Style: F-Tab
  • Housing Width: 3/4-inch
  • Material: Steel
  • Roller Diameter: 1-1/2-inch
  • Roller Edge Type: Concave
  • Roller Material: Steel
  • Roller Width: 5/16-inch
  • Type: Concave
  • Width: 3/4-inch

    Sold each, priced each

    Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door





This product is similar to or the same as the following part numbers in these brands:<br/>Prime-Line Products: D 1531<br/>Strybuc Industries: 9-270<br/>SlideCo: 13128
