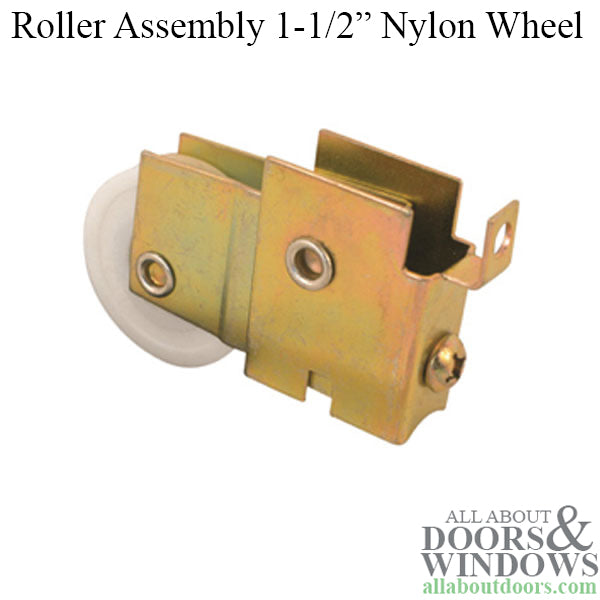

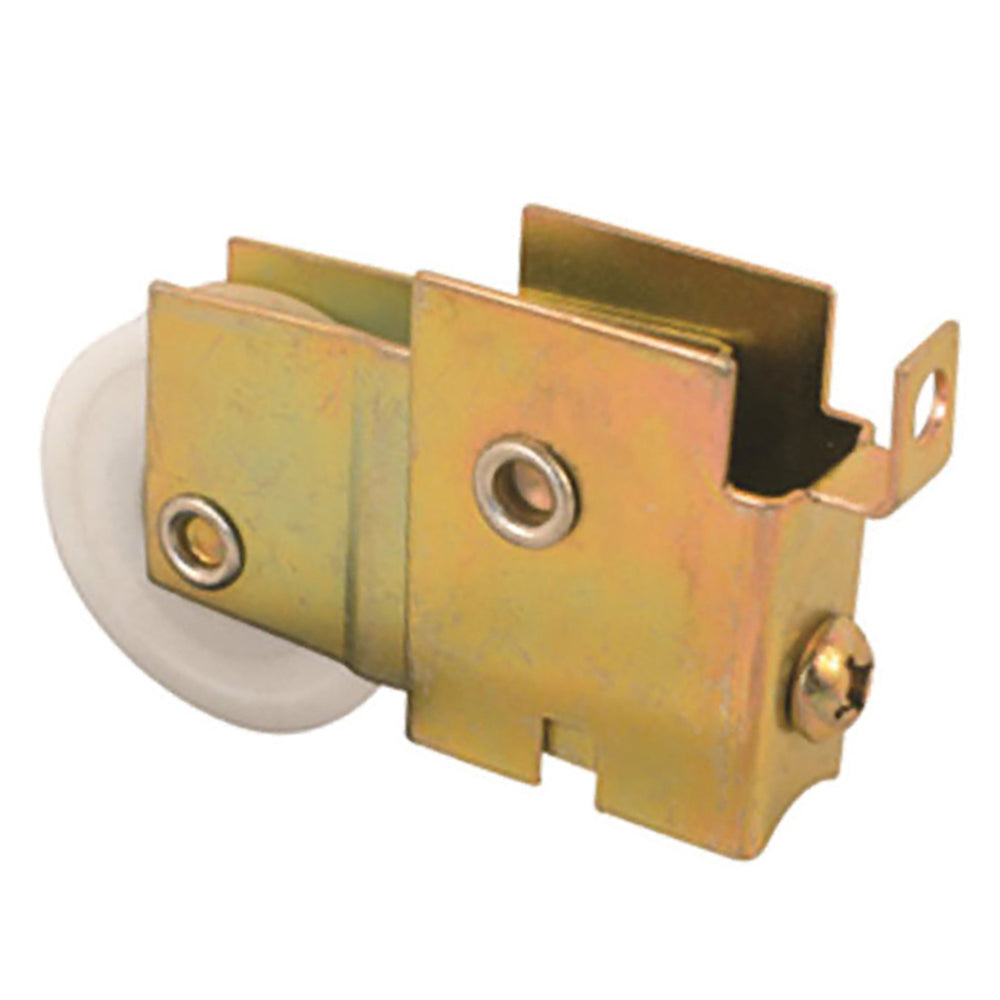

1-1/2 Nylon Wheel, Roller Assembly

Part Number:13163 Price: $10.95
1-1/2 inch nylon ball bearing roller
Adjustable steel housing assembly used by Starlite, Doormaster and other glass door manufacturers

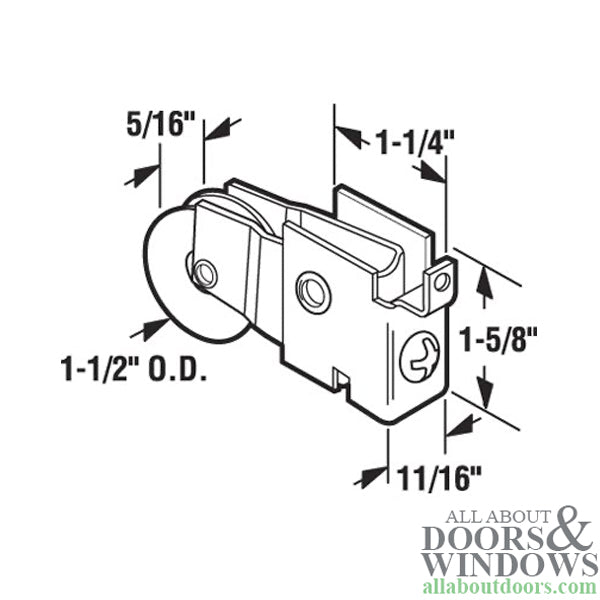

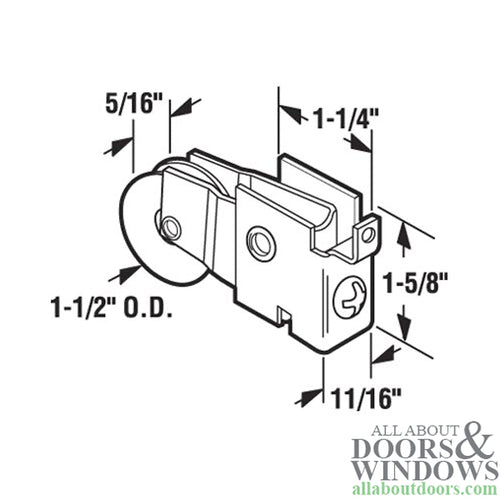

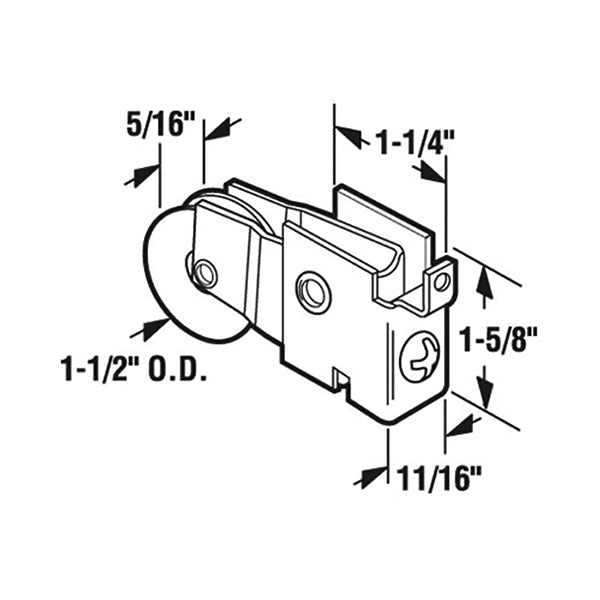

Housing dimensions: thickness,11/16 inch; length,1 1/4 inch; height, 1-5/8 inchOverall thickness at the axle, 23/32 inch.

Diameter: 1-1/2-inch
Housing Tab Style: F-Tab
Housing Width: 11/16-inch
Material: Nylon
Roller Diameter: 1-1/2-inch
Roller Edge Type: Concave
Roller Material: Nylon
Roller Width: 5/16-inch
Type: Concave
Width: 11/16-inch

Sold each, priced each
This product is similar to or the same as the following part numbers in these brands:<br/>Prime-Line Products: D 1511<br/>SlideCo: 13170
