Door Roller For Sliding Patio Door Rollers 1.25 Inch Steel Wheel With Steel Plain Back Housing
Use the arrows or swipe left to view all images for this product

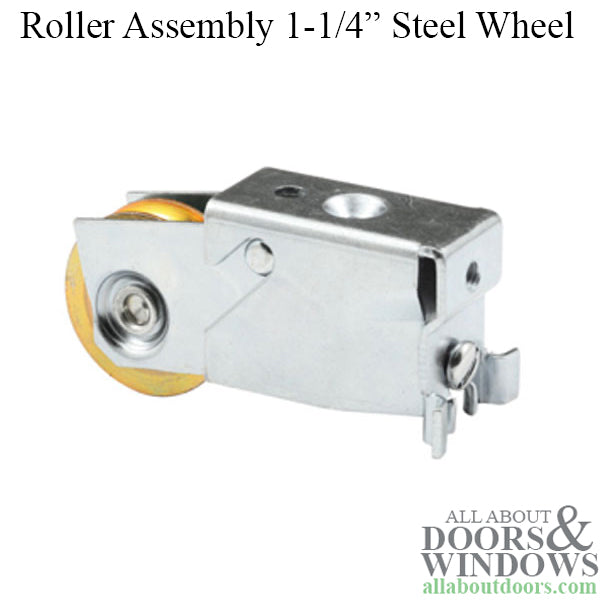

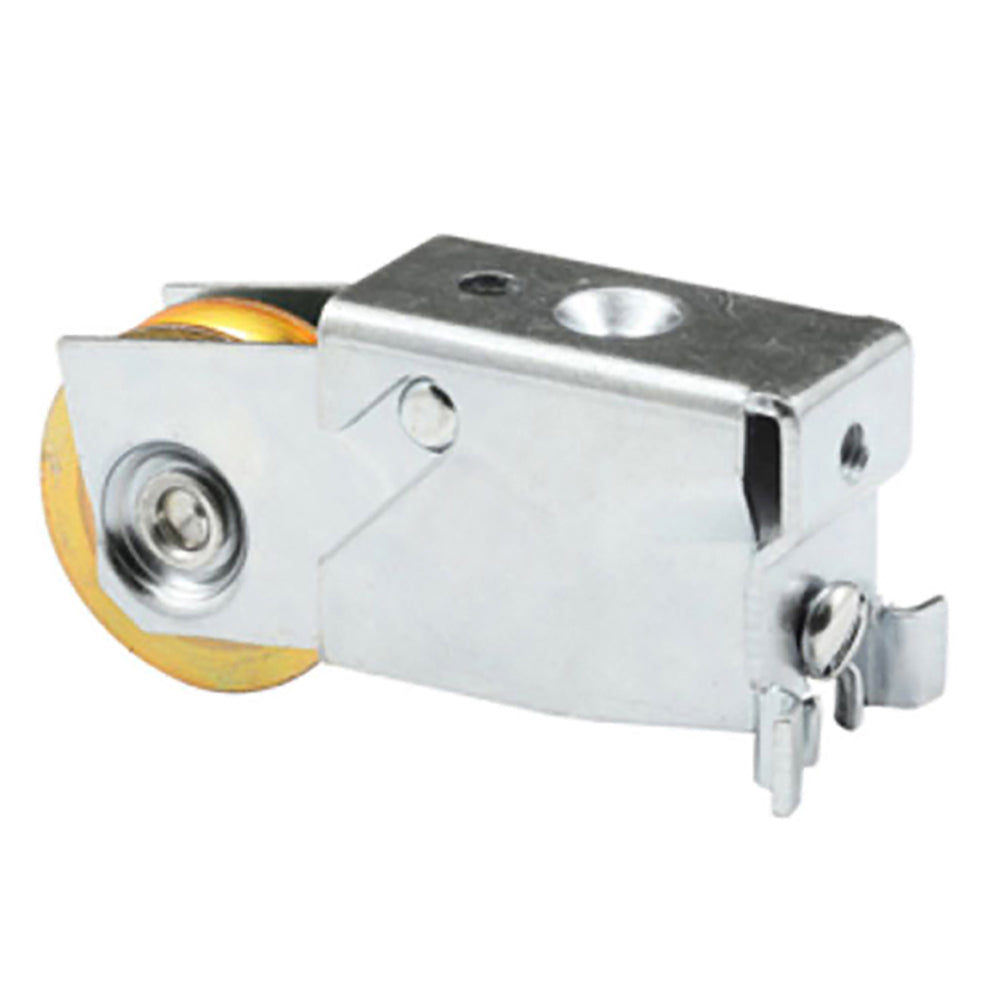

1-1/4 inch steel ball bearing roller
Adjustable steel housing assembly

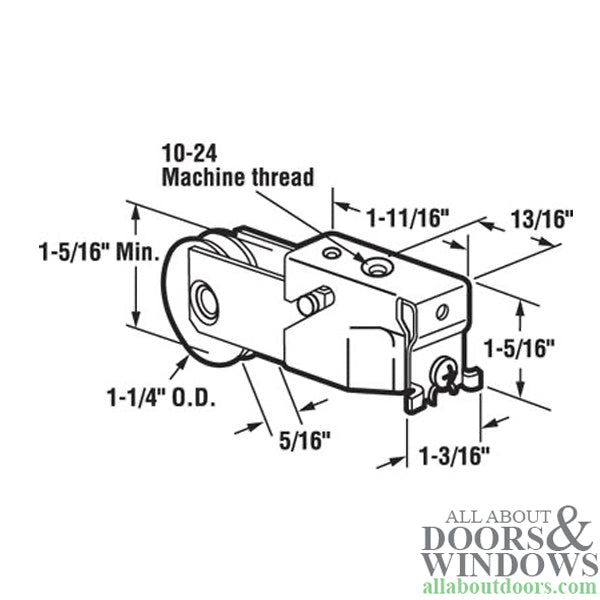

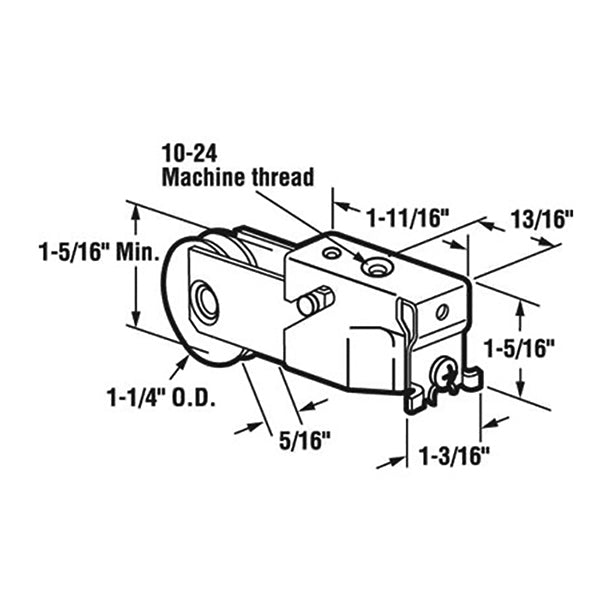

Used by Smith & Kelly, and other glass door manufacturersHousing dimensions: thickness, 7/8 inch; length, 1-11/16 inch; height,1-5/16 inch.
Diameter: 1-1/4-inch
Housing Tab Style: Plain Back
Housing Width: 1-3/16-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 1-3/16-inch
Sold each, priced each
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
Adjustable steel housing assembly
Used by Smith & Kelly, and other glass door manufacturersHousing dimensions: thickness, 7/8 inch; length, 1-11/16 inch; height,1-5/16 inch.
Diameter: 1-1/4-inch
Housing Tab Style: Plain Back
Housing Width: 1-3/16-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 1-3/16-inch
Sold each, priced each
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1560
SlideCo: 13435
