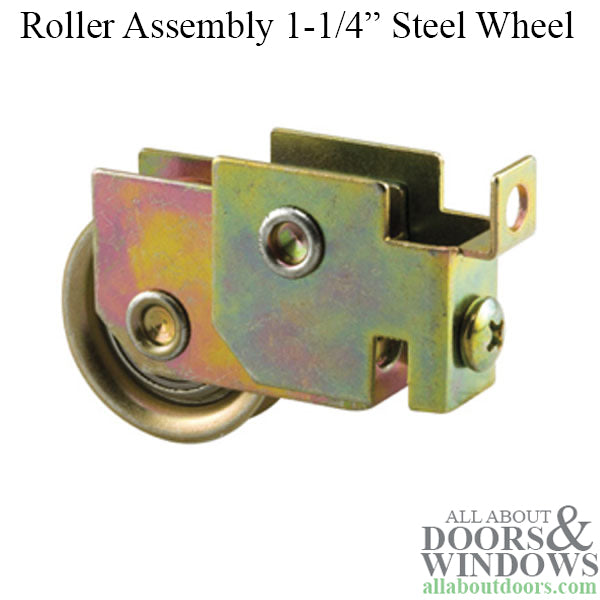

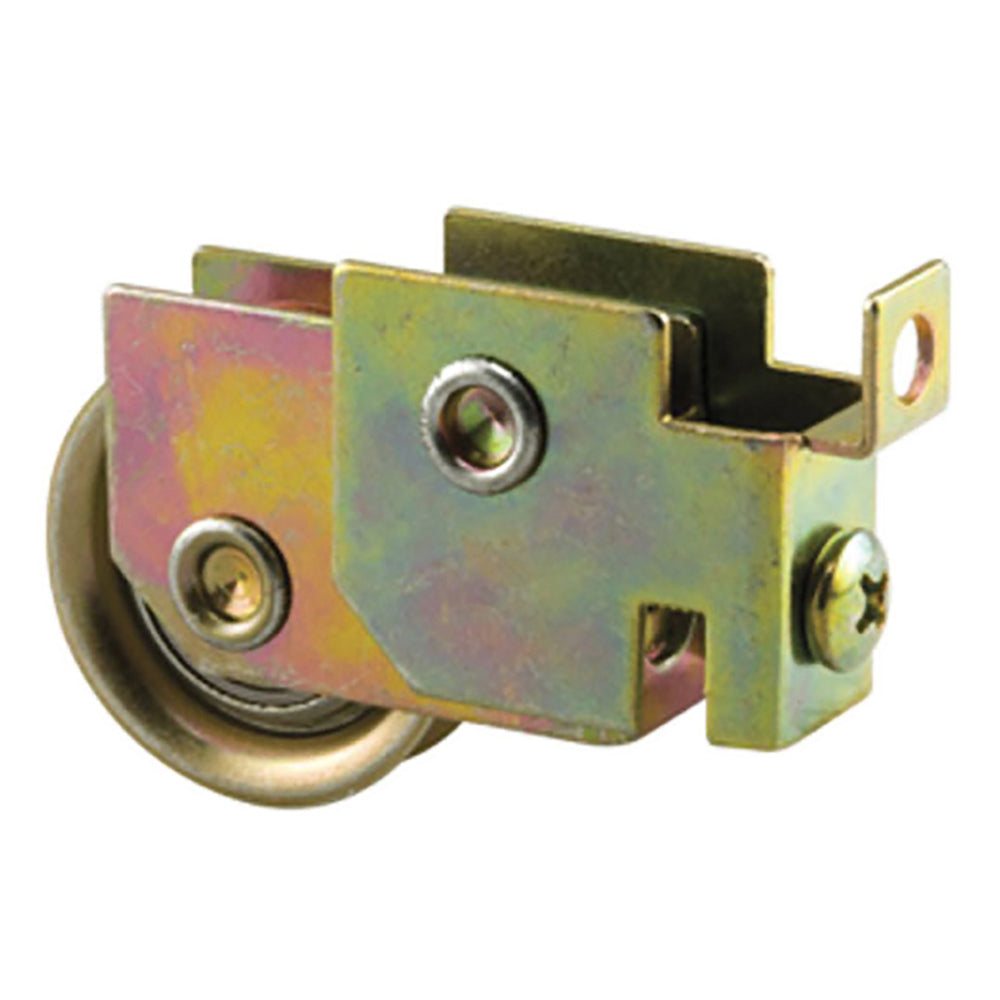

Sliding Glass Door Roller 1.25 Inch Steel Wheel With Adjustable F Tab Metal Housing

Part Number: 13170 Price: $17.13

Sold each, priced each

1-1/4 inch steel ball bearing roller
Adjustable steel housing assembly
Used by several glass door manufacturers

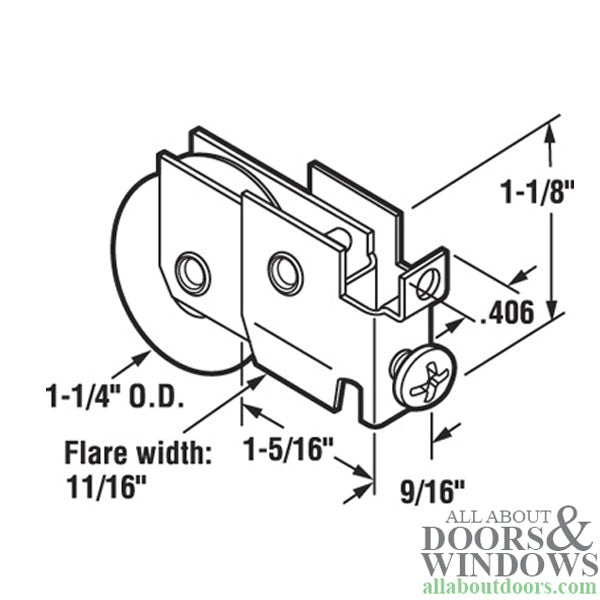

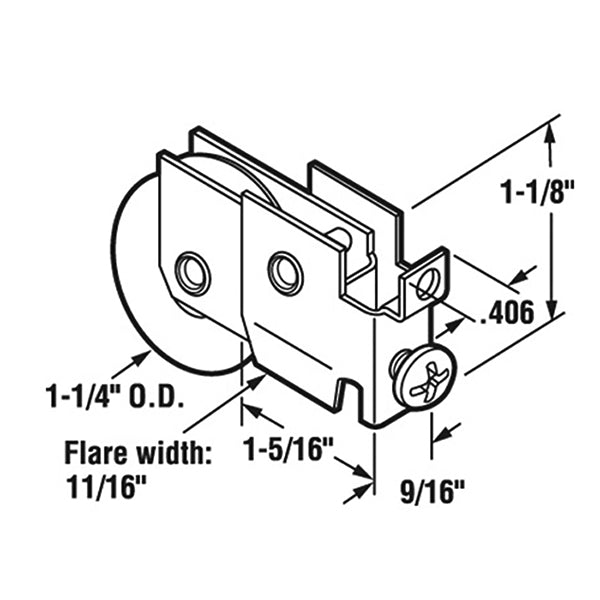

Housing dimensions: thickness, 9/16 inch; length, 1-5/16 inch; height, 1-1/8 inch; overall thickness, 21/32 inch.

Diameter: 1-1/4-inch
Housing Tab Style: F-Tab
Housing Width: 9/16-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 9/16-inch

Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door

This product is similar to or the same as the following part numbers in these brands:<br/>Prime-Line Products: D 1686<br/>
