1-1/4 inch Wheel, Steel Ball Bearing Roller Assembly, Sliding Patio Door
Part Number: 13332 Price: $11.00Sold each, priced each
1-1/4 inch steel ball bearing roller unit
Adjustable steel housing assembly
Used by Master Windows and other glass door manufacturers

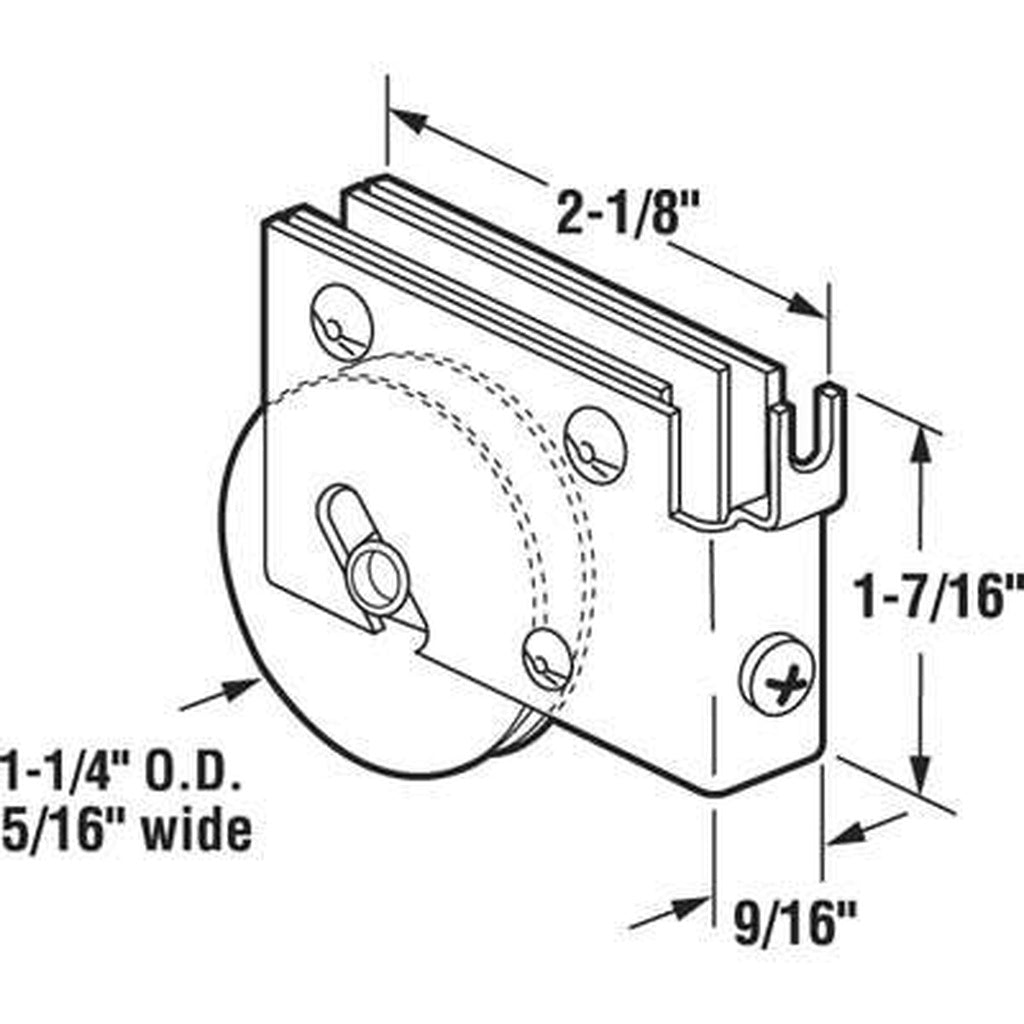

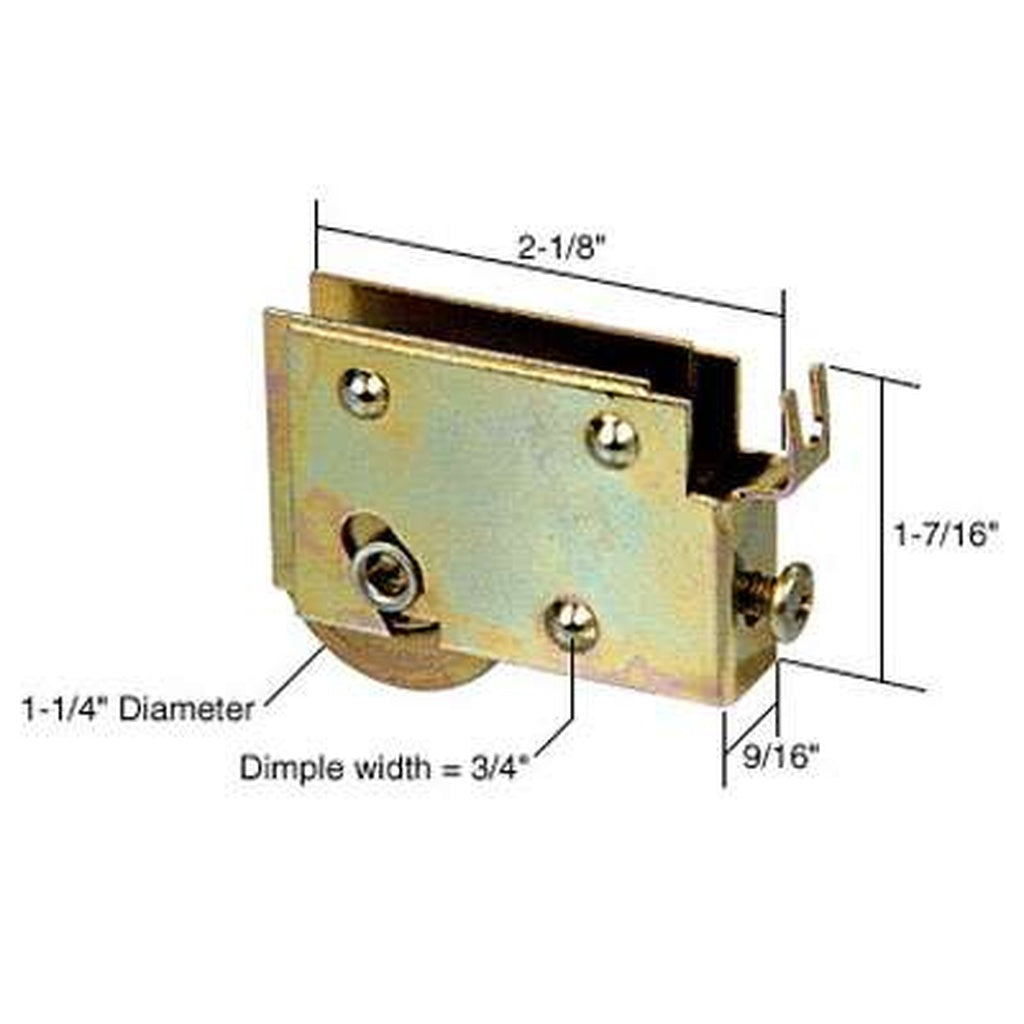

Housing dimensions: thickness, 9/16 inch; length, 2-1/8 inch; height, 1-7/16 inch; overall thickness, 3/4 inch.
Diameter: 1-1/4-inch
Housing Tab Style: C-Tab
Housing Width: 9/16-inch
Material: Nylon
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Nylon
Type: Concave
Width: 9/16-inch
Related Parts:
13331 - Nylon Wheel
13332 - Steel Wheel
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
