Discontinued, possible substitutes 13193 or 13063

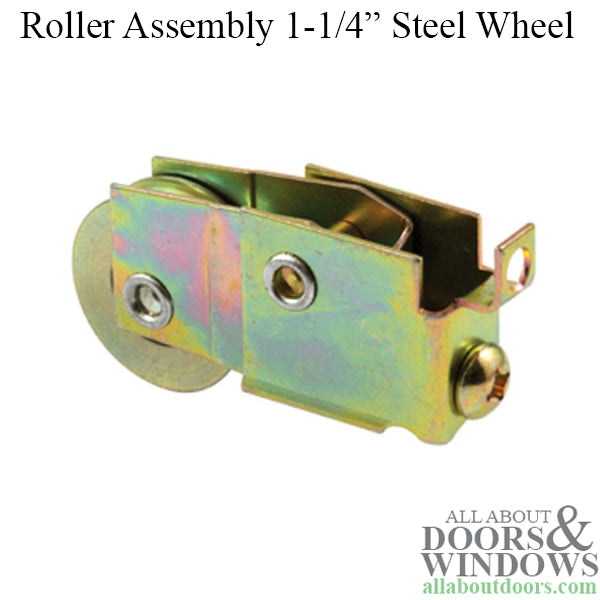

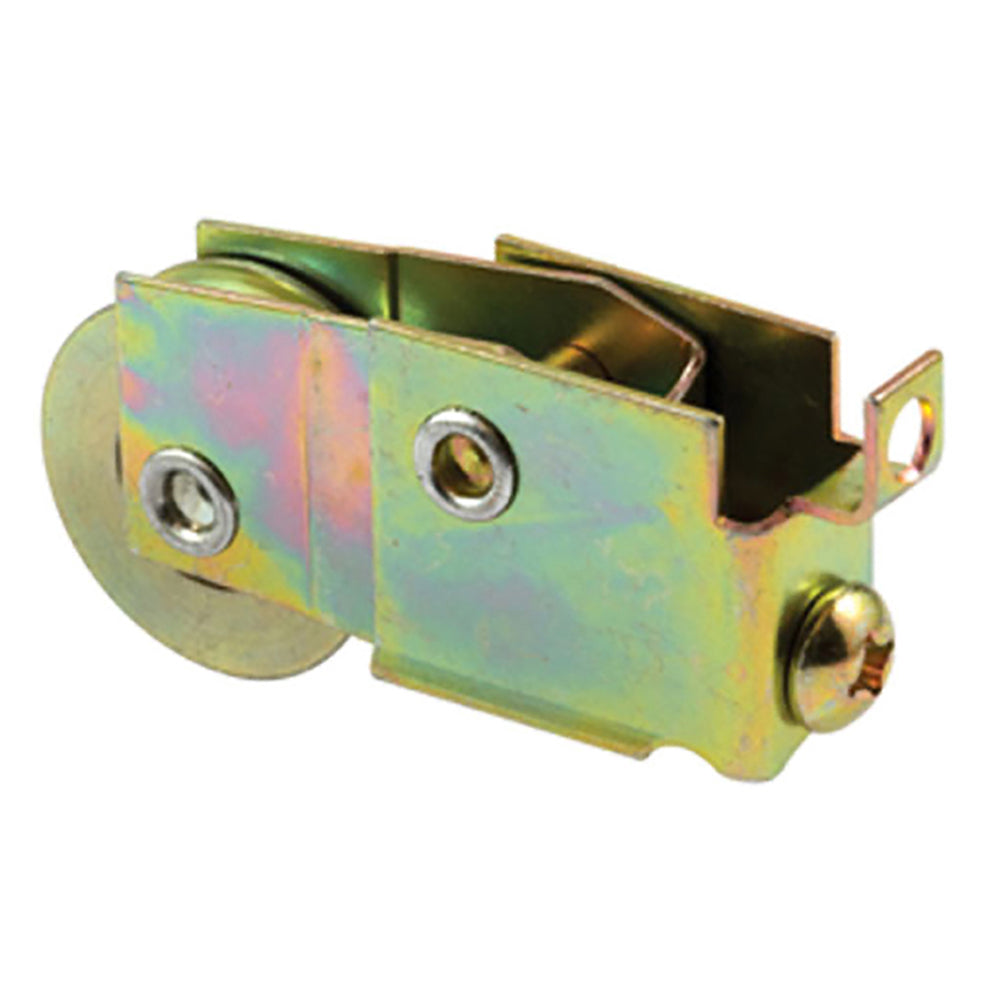

1-1/4 inch steel ball bearing roller
Adjustable steel housing assembly
Used by Christian Porter and other glass door manufacturers

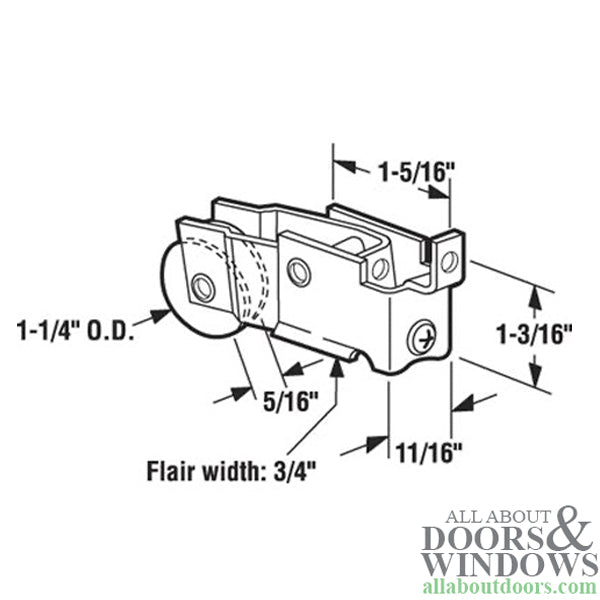

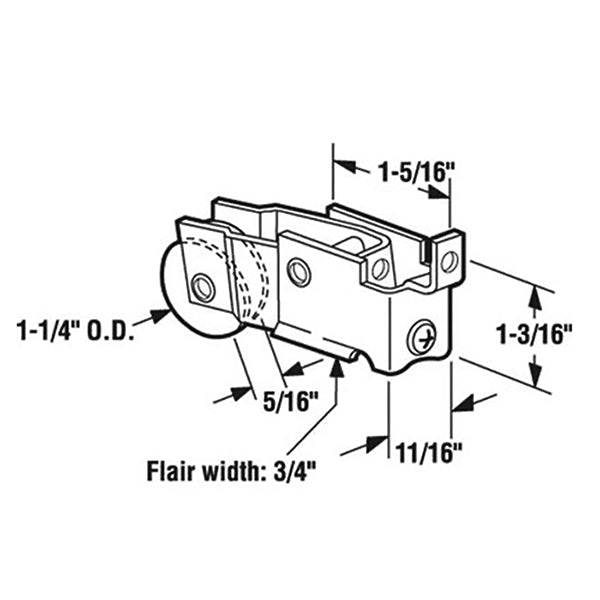

Housing dimensions: thickness,11/16 inch; length,1-5/16 inch; height,1-3/16 inch; overall thickness, 3/4 inch.
Diameter: 1-1/4-inch
Housing Tab Style: F-Tab
Housing Width: 11/16-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 11/16-inch
Sold each, priced each
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
