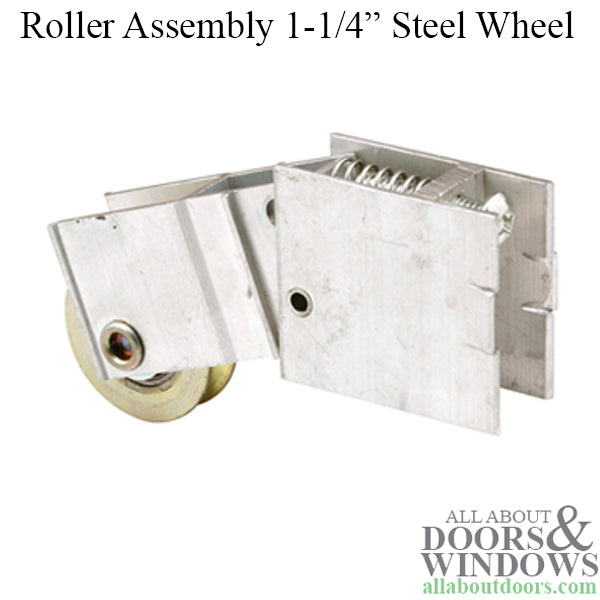

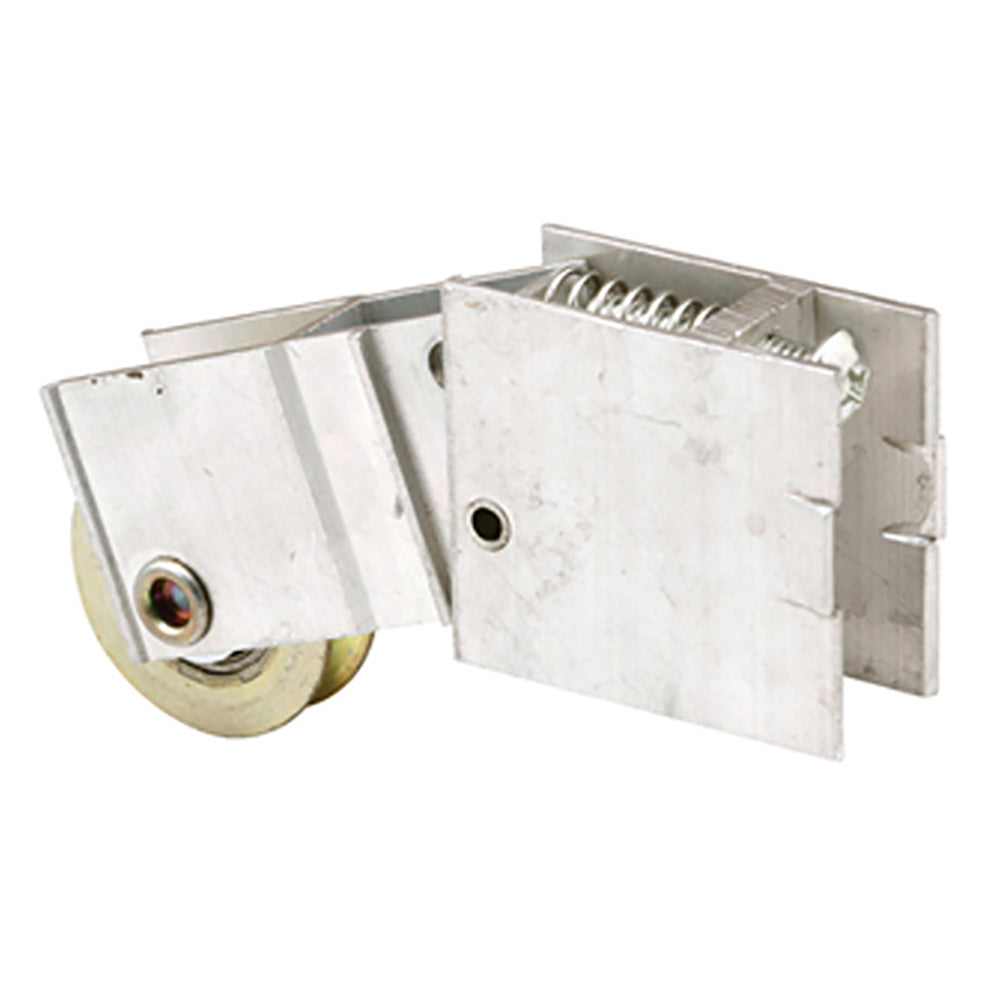

1-1/4 Steel Wheel, Roller Assembly

Part Number: 13174 Price: $17.88
1-1/4 inch steel ball bearing roller
Adjustable aluminum housing assembly
Used by Peachtree, and other glass door manufacturers.

Priced each, sold each

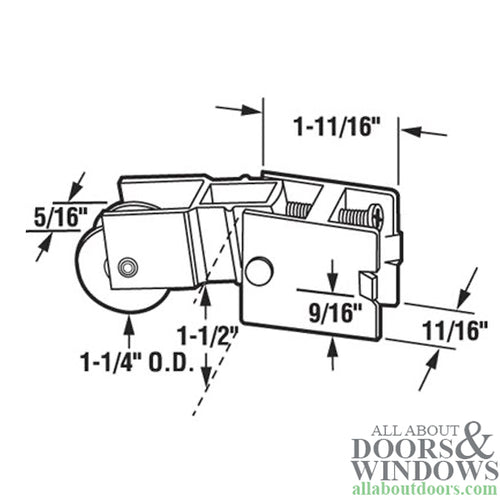

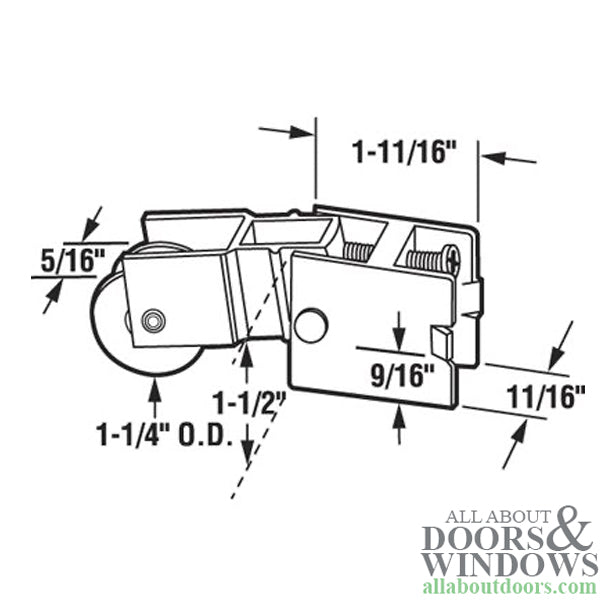

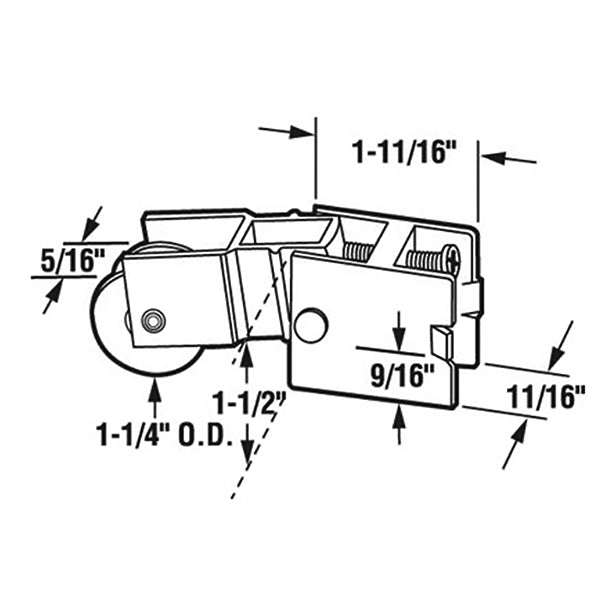

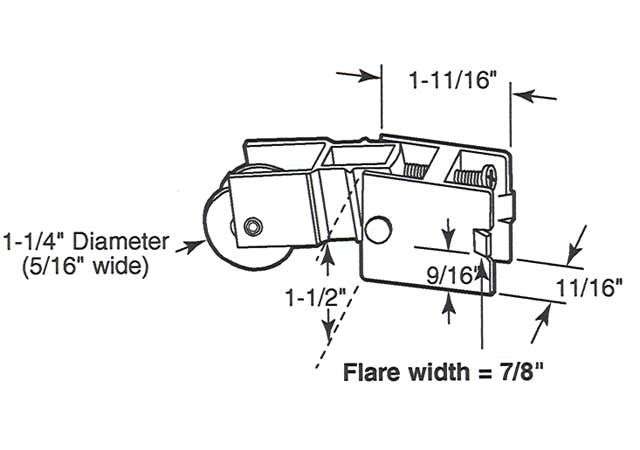

Housing dimensions: thickness, 25/32 inch; length, 1-11/16 inch; height, 1-1/2 inch.

Diameter: 1-1/4-inch
Housing Tab Style: Unique Housing
Housing Width: 11/16-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 11/16-inch

Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
