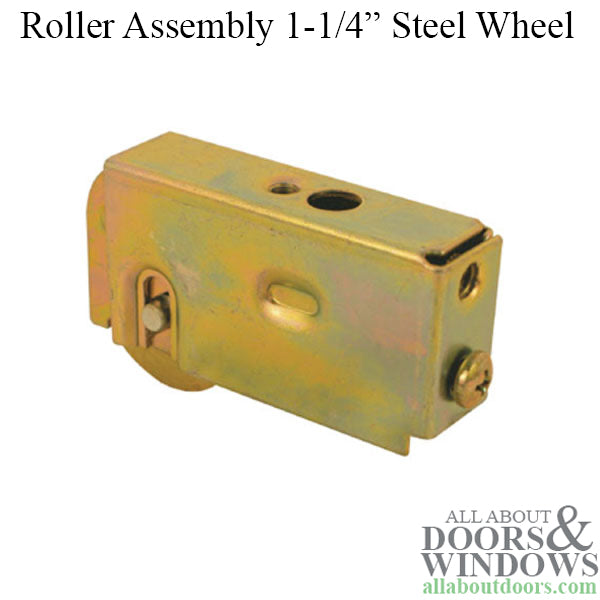

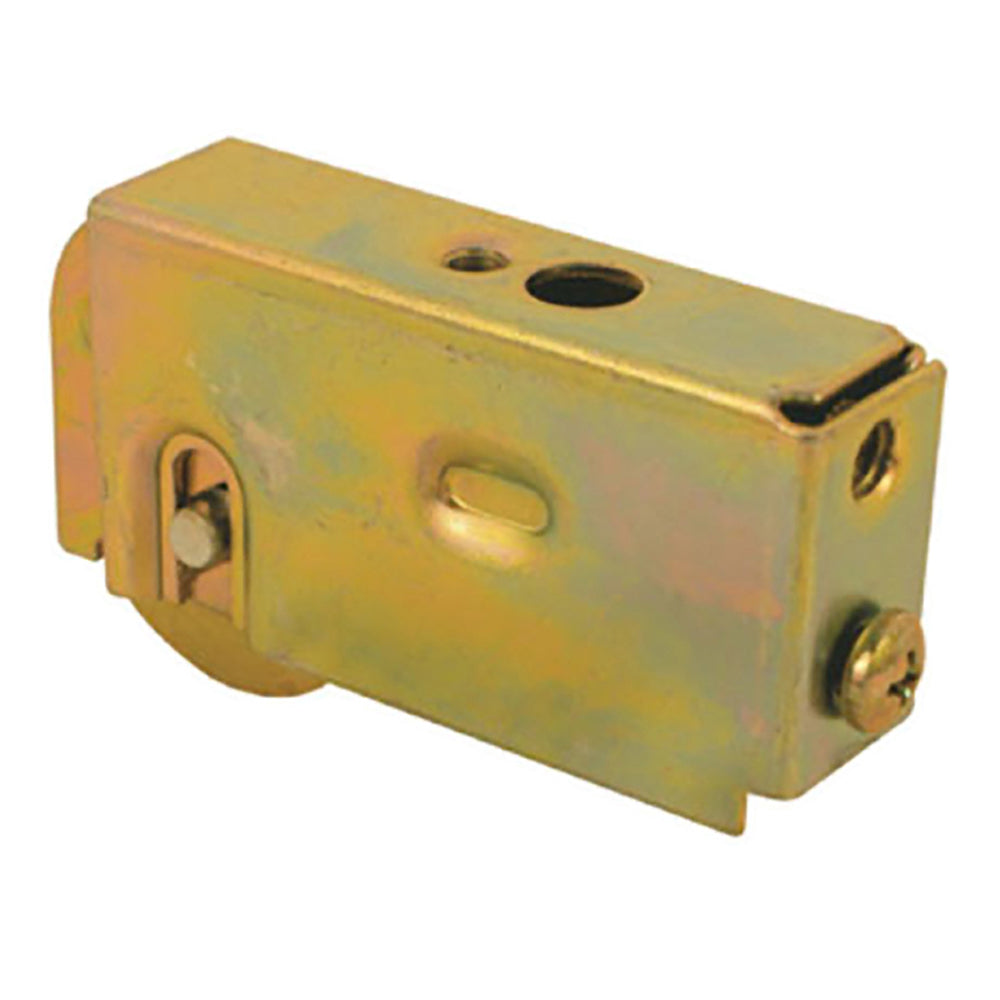

Door Roller For Sliding Doors Steel Plain Back Housing With 1.25 Inch Steel Wheels
Use the arrows or swipe left to view all images for this product
Sold each, priced each
1-1/4 inch Steel wheel
Glass Patio Sliding Door Roller Assembly

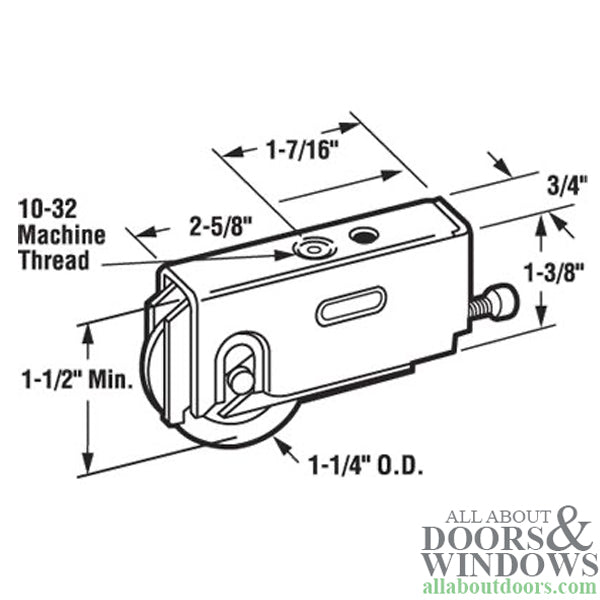

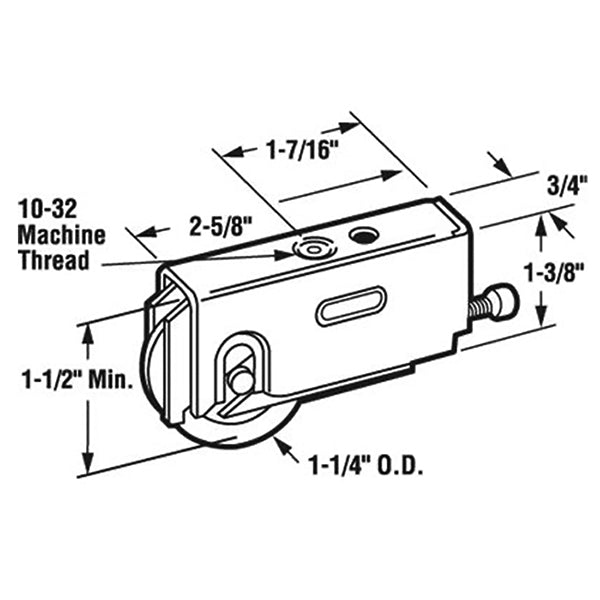

3/4 inch thick housing. 2-5/8 inch long, 1-3/8 inch high.
Uses a 10-32 machine screw in top and 1/4-20 frame screw above the adjustment screw.
Diameter: 1-1/4-inch
Housing Tab Style: Plain Back
Housing Width: 3/4-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Type: Concave
Width: 3/4-inch
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
1-1/4 inch Steel wheel
Glass Patio Sliding Door Roller Assembly
3/4 inch thick housing. 2-5/8 inch long, 1-3/8 inch high.
Uses a 10-32 machine screw in top and 1/4-20 frame screw above the adjustment screw.
Diameter: 1-1/4-inch
Housing Tab Style: Plain Back
Housing Width: 3/4-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Type: Concave
Width: 3/4-inch
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1723
Strybuc Industries: 900-18770
SlideCo: 131476
