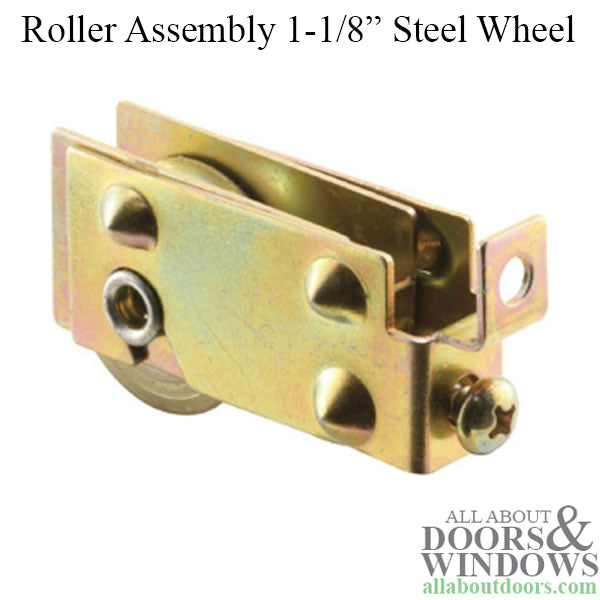

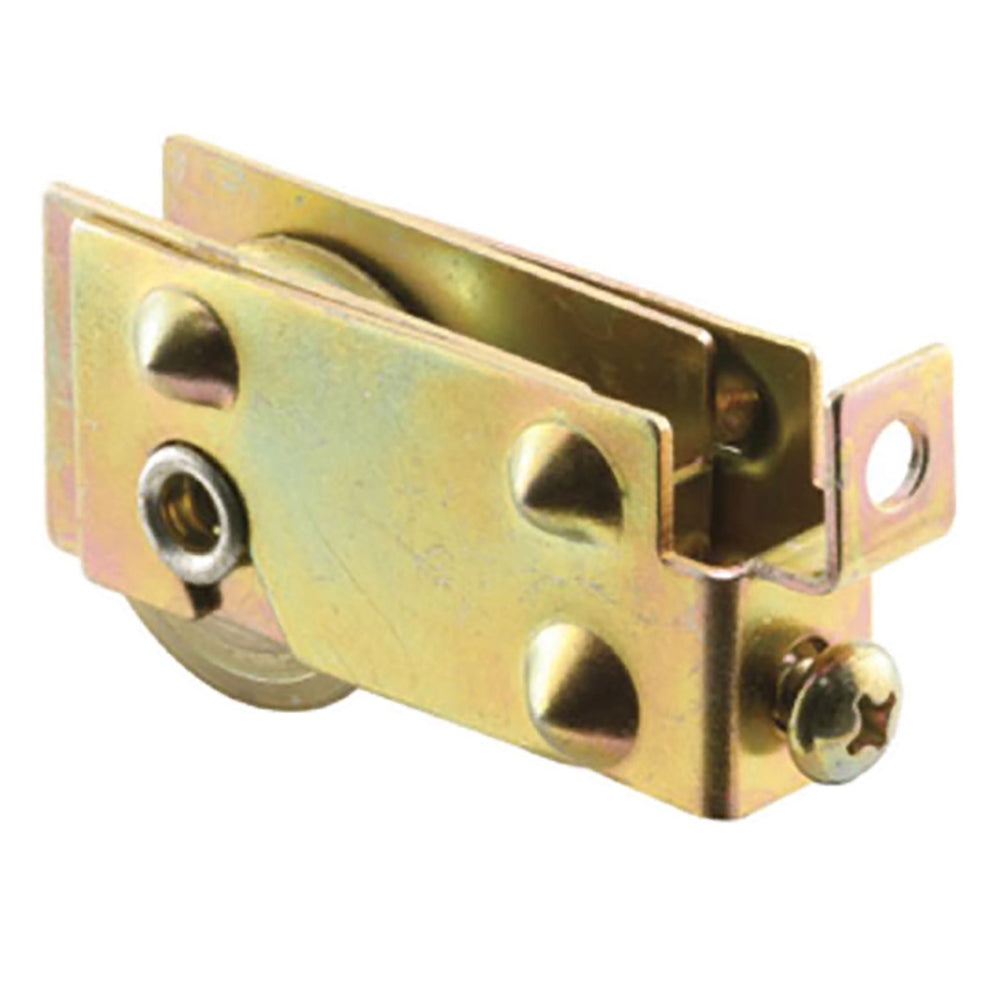

Sliding Door Roller Assembly with Adjustable Steel Housing 1.125 Inch Steel Ball Bearing Wheel Diameter
Use the arrows or swipe left to view all images for this product
Priced each, sold each
1-1/8 inch steel ball bearing roller assembly
Adjustable steel housing assembly
Used by many glass door manufacturers

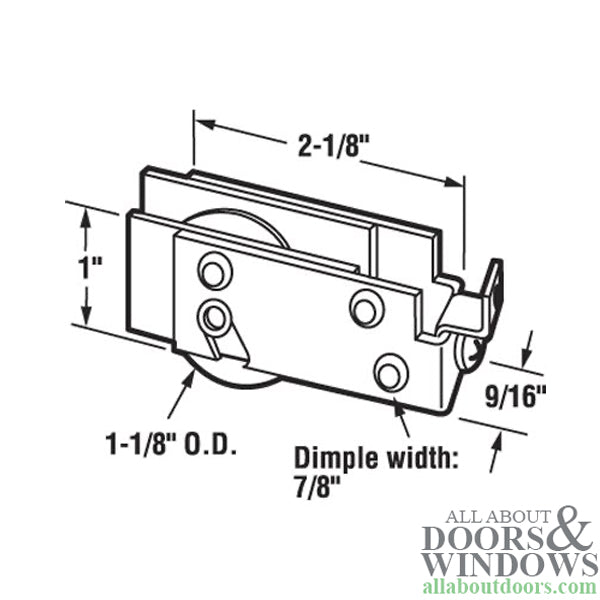

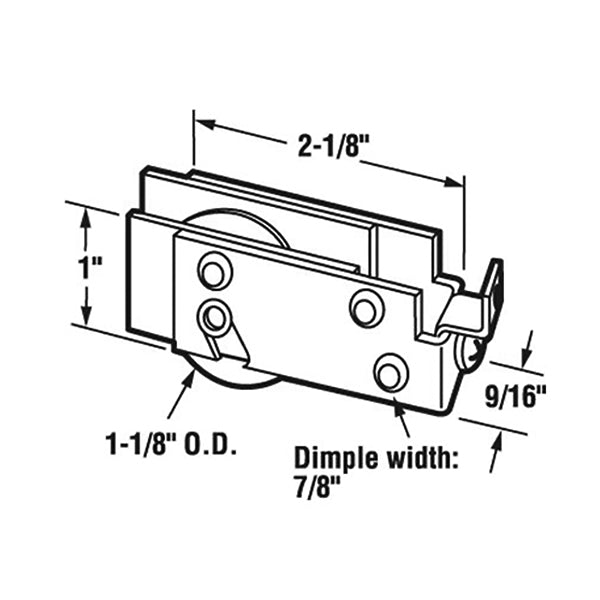

Housing dimensions: thickness, 9/16 inch; length, 2-1/8 inch; height, 1 inch; overall thickness, 25/32 inch.
Diameter: 1-1/8-inch
Housing Tab Style: F-Tab
Housing Width: 9/16-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 9/16-inch
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
1-1/8 inch steel ball bearing roller assembly
Adjustable steel housing assembly
Used by many glass door manufacturers
Housing dimensions: thickness, 9/16 inch; length, 2-1/8 inch; height, 1 inch; overall thickness, 25/32 inch.
Diameter: 1-1/8-inch
Housing Tab Style: F-Tab
Housing Width: 9/16-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 9/16-inch
Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1699
SlideCo: 13394
