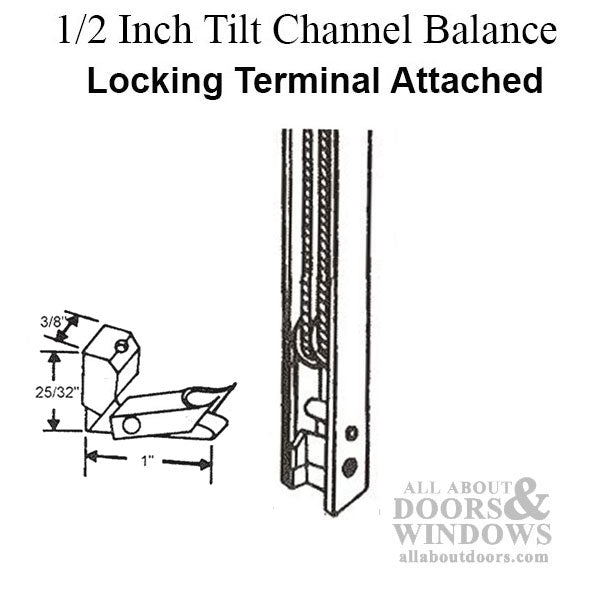

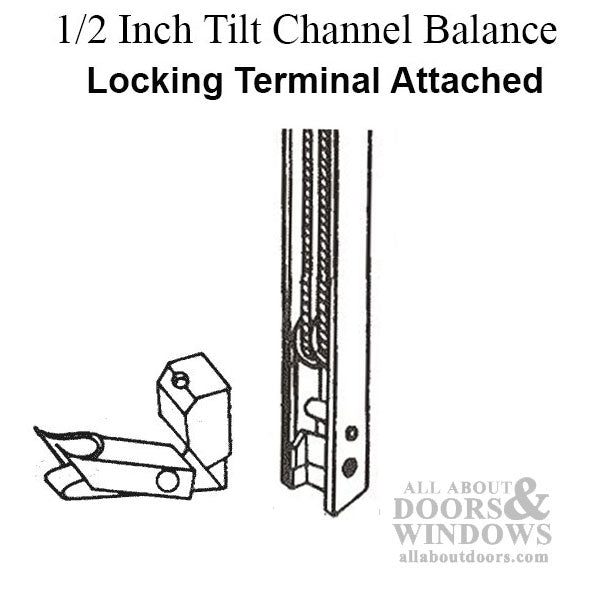

1/2 Inch Tilt Channel Balance (5/8 x 9/16) with Locking Terminal Attached

Part Number: 62003-MC20-B220 Price: $19.95
WEIGHT CODE: - 20 / B, 2, 20

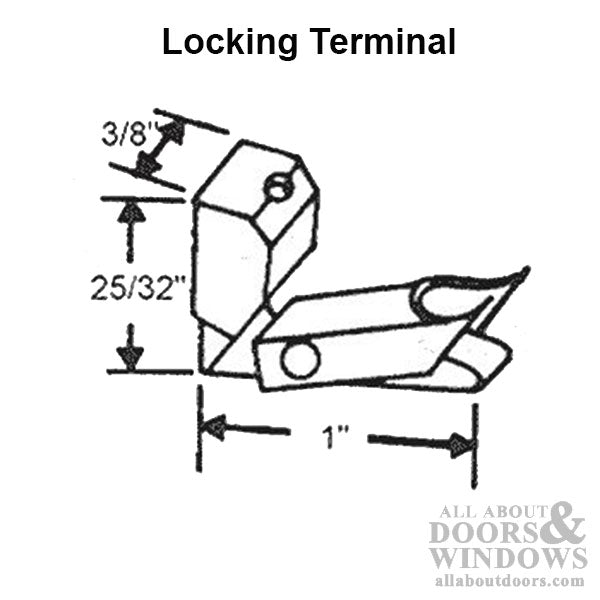

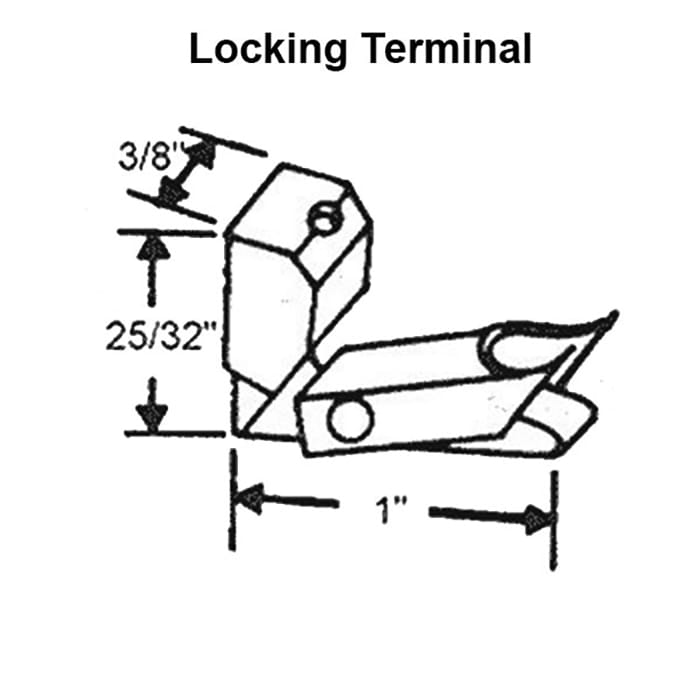

1/2 inch Channel Balance with locking shoes for single and double hung windows
Channel Balance Width: 9/16 inch
Channel Balance Depth: 5/8 inch

Use the following drop down menus to place your order.

1. Length of Metal Channel (inches)
Measure just the metal portion of the channel, do not include the plastic ends.

2. Stamped Number - Use the first 2 digits on the Channel Balance.
This number may not be the same as the length of the Channel Balance from step 1.
The first two numbers are the glass size.
This helps us identify your Channel Balance.

3. Weight Code - The second two numbers or letter refers to the weight code.
Your balance may be marked with two numbers, such as 2420, or it may also be marked with just one number or letter, such as a, b, c, d, e, or 1, 2, 3, 4, 5. see example

Please include, any number or letters on Channel Balance.

Article: Replacing the 60 Series Channel Balance

Video: How to Replace a Channel Balance in a Non-Tilt Window

Priced and sold each.
