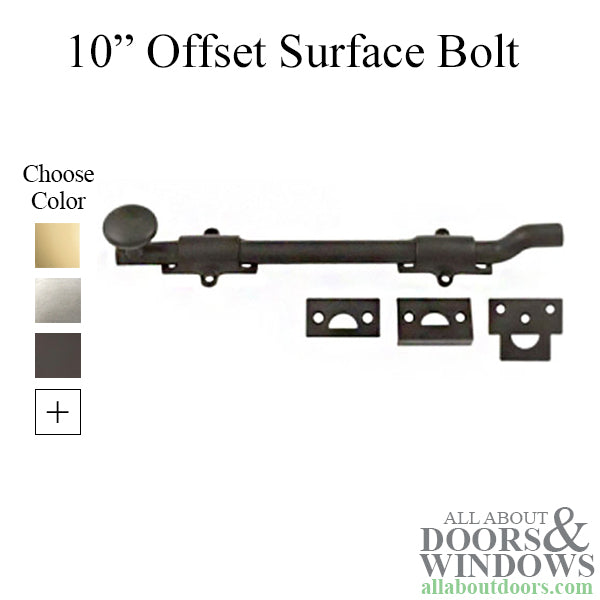

10" Offset Flush Bolt, Heavy Duty Brass - Choose Finish
Use the arrows or swipe left to view all images for this product
10" Offset Flush Bolt, Heavy Duty Brass - Choose Finish
Part Number: $89.58 to $109.3810" Offset Flush Bolt, Heavy Duty Brass - Choose Finish
Specifications:
- Bolt Length: 10 Inches
- Bolt Width: 5/8 Inch Diameter (Half Round Rod)
- Bolt Offset: 5/8 Inch
- Guide Width: 1-1/2 Inches
- Guide Projection: 9/16 Inch
- Knob Diameter: 1-1/4 Inches
- Bolt Throw: 1-1/16 Inch
- Rod Resistance: 109 pounds.
- Material: Solid Brass
- Includes: 3 Strike Plates
- Packaged with all mounting hardware
-
Color(s): Polished Brass, Antique Brass, Oil-Rubbed Bronze, Brushed Satin Nickel, Antique Nickel (Pewter), Flat Black, Brushed Satin Chrome, Polished Chrome, Lifetime Polished, Brass (PVD)

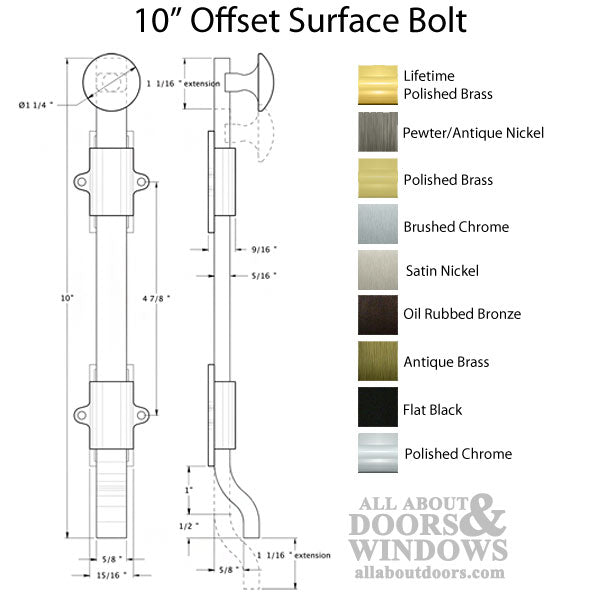

Measurements:
10 inch Heavy Duty Offset Flush Bolt
Bolt Length: 10 inch
Bolt Width: 5/8 inch Diameter Half Round Rod
Bolt Offset: 5/8 inch
Guide Width: 1-1/2 inch
Guide Projection: 9/16 inch
Knob Diameter: 1-1/4 inch
Bolt Throw: 1-1/16 inch
Rod Resistance: 109 pounds.
Material: Solid Brass
Includes 3 Strike Plates
Packaged with all mounting hardware
Colors Available:
Polished Brass
Antique Brass
Oil-Rubbed Bronze
Brushed/Satin Nickel
Antique Nickel (Pewter)
Flat Black
Brushed/Satin Chrome
Polished Chrome
Lifetime Polished Brass (PVD)
