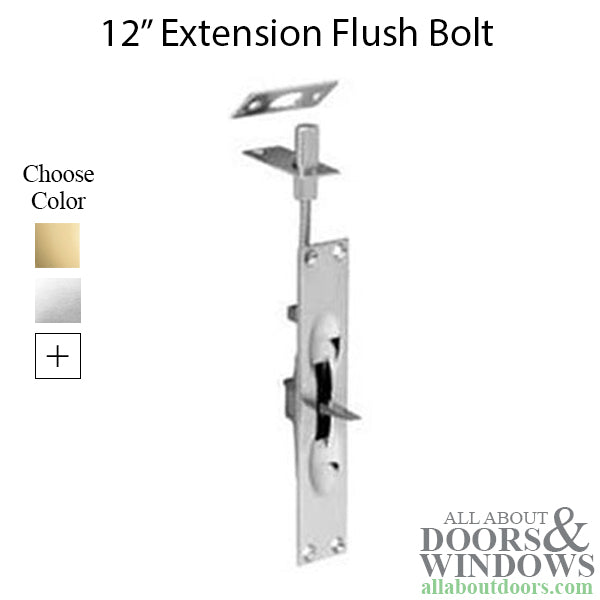

12 Inch Extension Bolt, 4 Hole 1 x 6-3/4 Flush Lever - Choose Color

Part Number: 362117-BC Price: $14.95
COLOR: - Brushed Chrome
12 Inch Extension Bolt, 4 Hole 1 x 6-3/4 Flush Lever - Choose Color

Manual Flush or surface Extension Flush Bolt, Mortise Style used primarily on Metal Doors
Can be used with Steel Frames by drilling hole for and not installing optional strike plate.
The longer rod allows lever to be reached easier for taller doors.

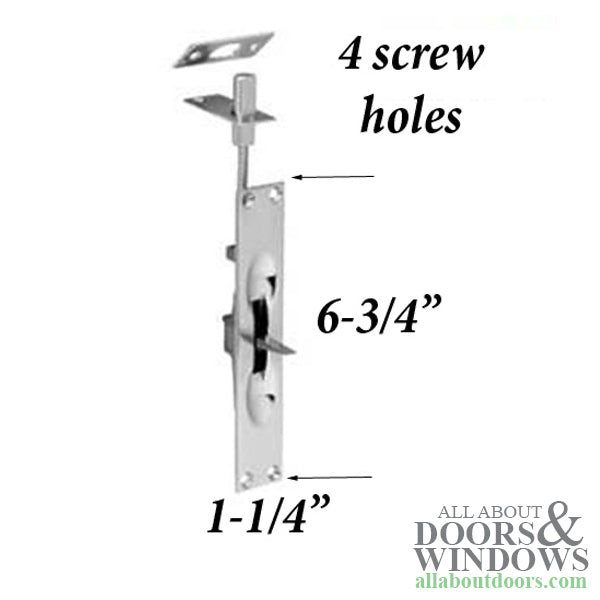

Face Plate: Flat 1 X 6-3/4 inch; Four (4) Screw mounting holes
Adjustable Threaded Rod Length: 10-5/8 inch
Actual Threaded Rod: 1-3/8 Inch each end is threaded
Metal Cap: 1-1/2 inch Brass
Face Plate Color / Finish: Brushed/Satin Chrome US26D
UL Rated: Yes, UL Listed 3 Hour Fire Doors 8\'0\'' x 10\'0\'', Meets ANSI/BHMA A156.16, L04251.

When the active door is opened, the lever can be moved to the ´up position, retracting the bolt and allowing the inactive leaf to be opened. When the inactive leaf is closed, the lever can be moved to the ´down position, projecting the bolt into the strike and securely locking the inactive leaf.
Simplified installation in metal frames. Roundbolt head requires only a punched hole. Use of strike optional. Special design of guide and flat sided bolt tip to prevent bolt rotation.
Non-handed. Bolt tip is 1/2\'' Diameter. Bolt throw is 3/4\'' with a 7/8\'' vertical adjustment. Boltbacksetis3/4\'' Standard Rod Length is 12\'',which is measured from the center
of the flush bolt body to the bolt tip. Optional rod lengths available - 6\'', 9\'', 18\'' and 24\'' for fire rated doors. Optional rod lengths available - 6\'', 9\'', 18\'', 24\'', 30\'', 36" for non-fire rated doors.

Note: There is another that has 10-1/2 rod with 1-1/4 inch wide faceplate
When the active door is opened, the lever can be moved to the ''up'' position, retracting the bolt and allowing the inactive door to be opened. When the inactive leaf is closed, the lever can be moved to the ''down'' position, projecting the bolt into the strike and securely locking the inactive Door

Flush bolts provide top and bottom locking on the inactive leaf of a pair of Double Doors. Three styles are available:
Manual: requires a flip of lever each time the bolt is locked or unlocked.

Automatic: bolt locks when active door is closed.
Self latching: bolts use a latching bolt that is not dependent on the active door closing to latch inactive door

Dust proof strikes: Provide a clean receptacle for the bottom bolt that returns flush when bolt is retracted. This eliminates the pocket created by the standard strike in the floor that is prone to accumulating dirt and debris.

Sold as a kit: Includes strike plates and screws.
