This item is Discontinued and is no longer available. - Replacement option # 407001 or use Emtek hardware.

Available in 9 finishes, 3 lever designs, UL rated/not ratede
Special order - Allow 2-4 weeks for delivery
MODIFICATION MAY BE NEEDED - Some doors had 1-1/2" or 1-3/4" crossbore, newer doors had 2-1/8" crossbore, please compare your hardware for replacement.

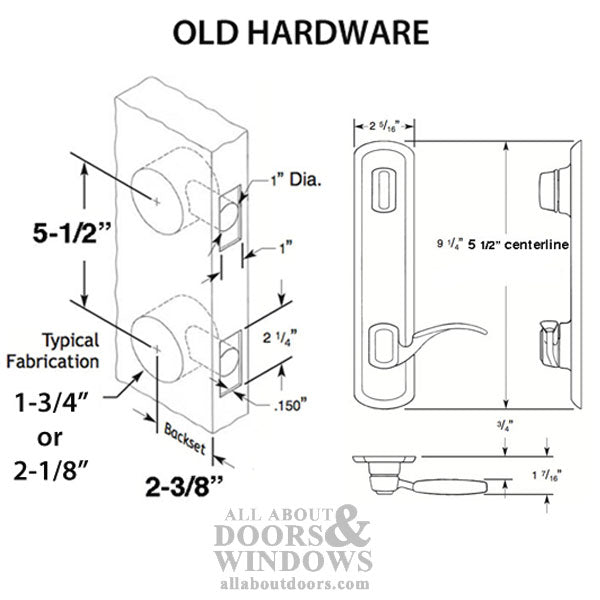

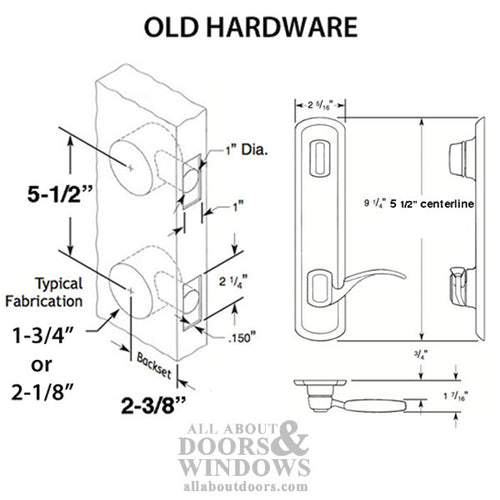

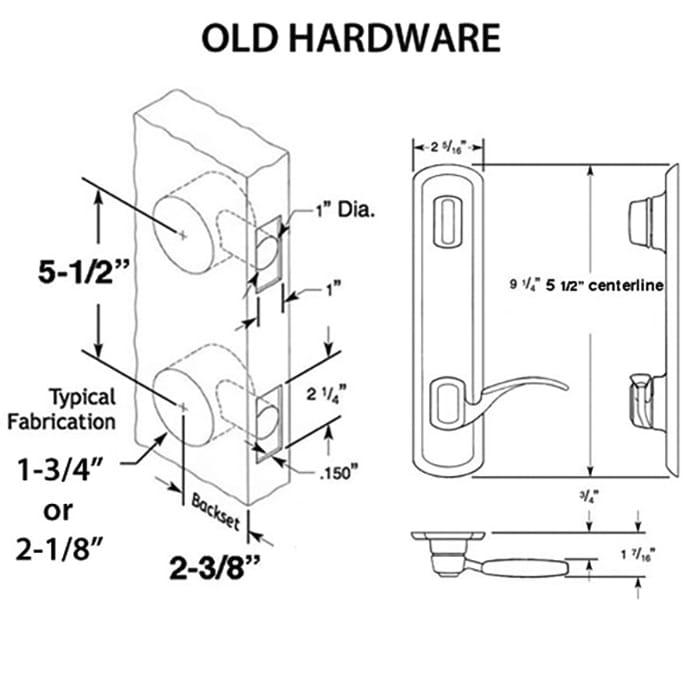

OLD HARDWARE SPECIFICATIONS:

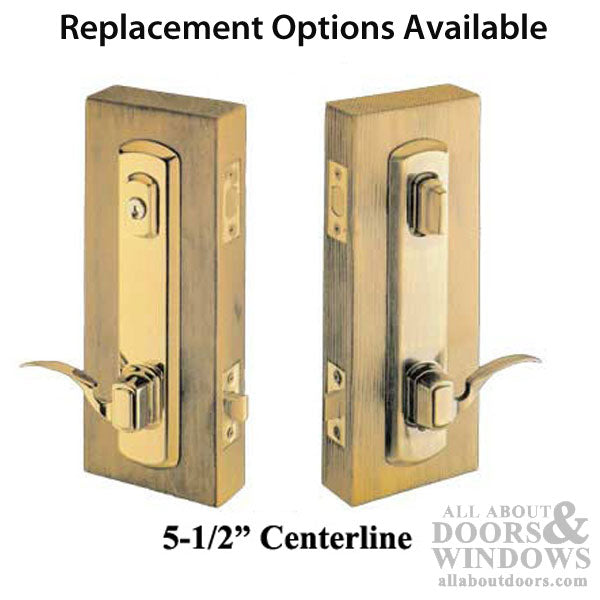

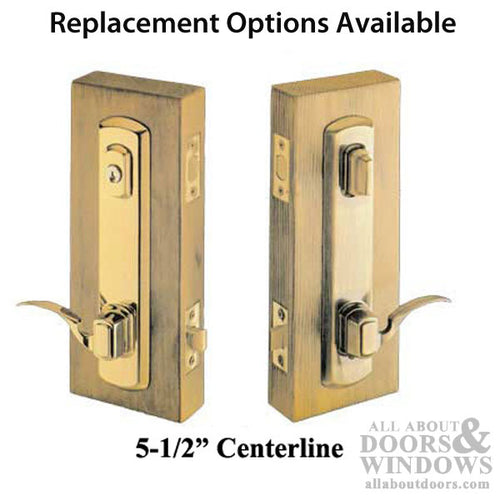

Contemporary 1200 Series entry lock set with deadbolt and spring latch.
Centerline: Latch and deadbolt spaced at 5-1/2 inches.
Most common backsets: 2 inch and 2-3/18 inch
Spindle Length: 1-9/16 Inch
Latch: Square Corner Faceplate
Escutcheon Plate: Contemporary
Handles: Low Profile French Levers, Reversible - Non Handed
Color/Finish: Antique Brass
Door Thickness: Screws for 1-3/4 Inch door.
Key Cylinder: Weiser 5 Pin Rekeyable to Kwikset or Dexter; 2 keys

Fits doors by Bonneville*, Castlegate of Canada*, Ceco, Craftline, Donat Flamand, Kolbe-Kolbe, Lincoln Wood, Pease*, Premdor*, Steelcraft and others.
*Double check Backset on these because the door manufacturer offered several versions. Please review additional images.

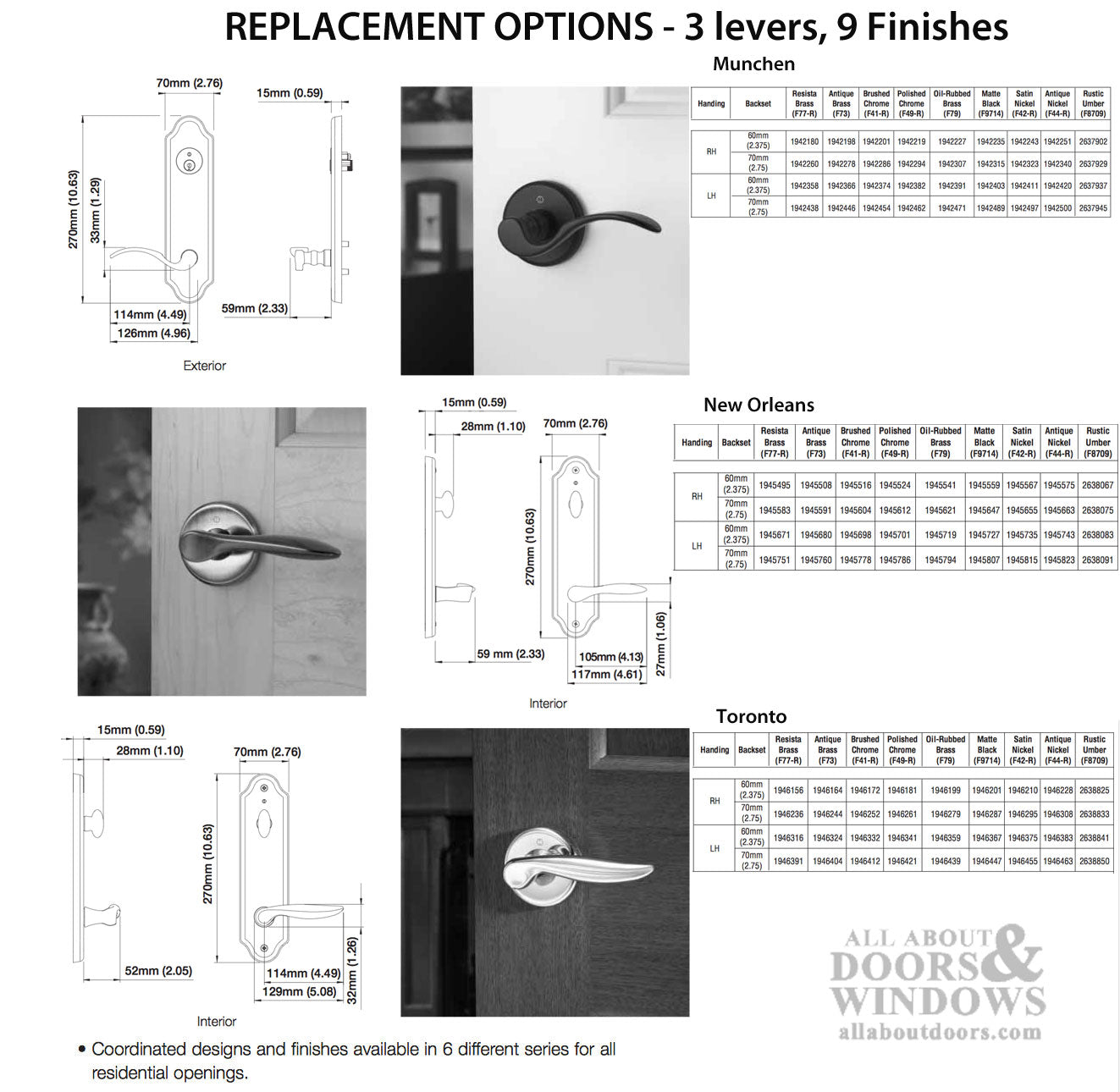

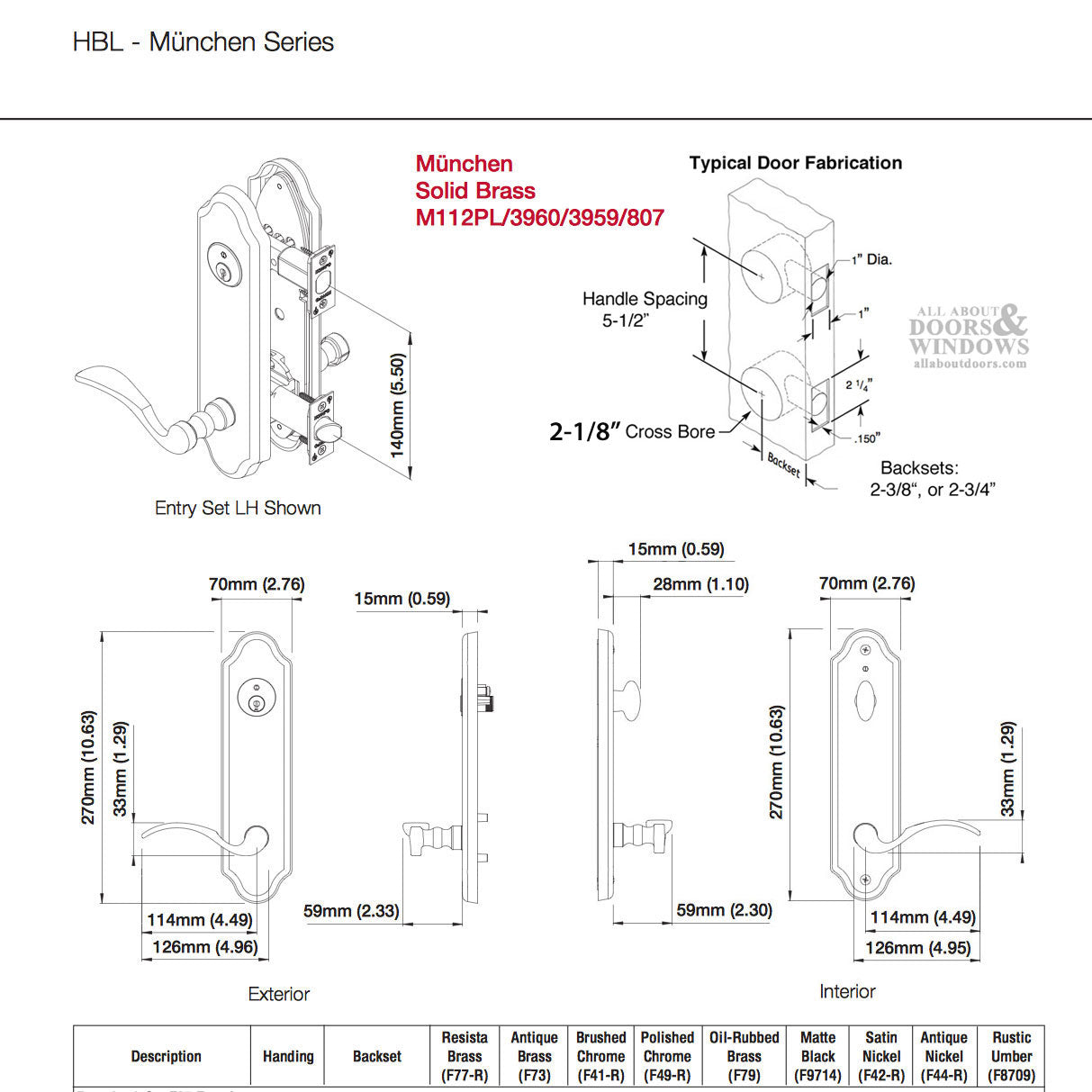

REPLACEMENT HARDWARE SPECIFICATIONS:
Backset: 2-3/8" or 2-3/4"
Handed: YES,
Cross Bore: Requires 2-1/8"
Note on crossbore: if your door is bored at 1-1/2" or 1-3/4" you may purchase a kit with a 2-1/8" Hole saw for wood or metal doors, and redrill.
The $22.00 Dewalt D180004 Boring kit has a good jig, however, the blade is only good for 1 or 2 doors.

/>PLEASE Review additional images.
