1200 Series Lock 6 inch Hole Spacing - Discontinued

Part Number: 40055 Price: $0.00

Discontinued
This handle set can be replaced with our part # 14421-WR Weiser Keyway

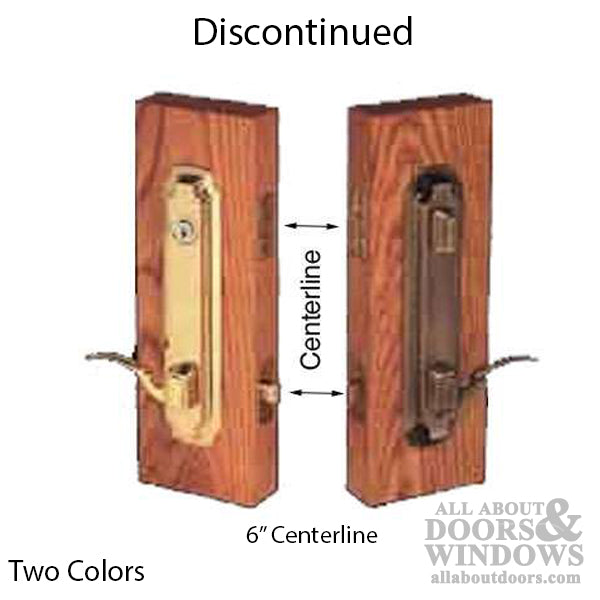

Contemporary 1200 Series Entry lock set with Dead bolt and Spring latch.

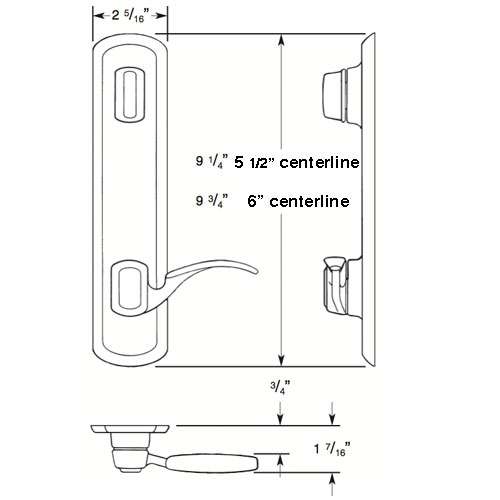

Centerline: Latch & Dead bolt spaced at 6 inches.
Standard Backset: 2-3/8 Inch
Special Backsets: 2 inch and 2-3/4 inch. Extra $20
Latch: Square Corner Face plate
Escutcheon Plate: Contemporary
Handles: Low Profile French Levers, Reversible - Non Handed
Color / Finish: Polished Brass or Antique Brass
Door Thickness: Screws for 1-3/4 Inch door
Key Cylinder: Weiser 5 Pin Rekeyable to Kwikset or Dexter; 2 keys
Optional Cylinder: Schlage Rekeyable 5 pin SC-1. Extra $5

Related Parts:
# 40050 - Replacement Handle Bushings - Sold Each
# 14421-WR Weiser Keyway - Less expensive Version with Different Look
This handle set can be replaced with our part #14421-SC1-KIT Schlage Keyway or #14421-WR Weiser Keyway


6" centerlines fits doors by: Bend Millwork, Biltbest, Blomberg, Craftline, Dashwood, Eagle, Hurd, Louisiana-Pacific, Merrill Millwork, Norco, Pozzi, Temple, Willmar* and others.
* Note: check Backset on these because the door manufacturer offered several versions.
PLEASE Review additional Images.

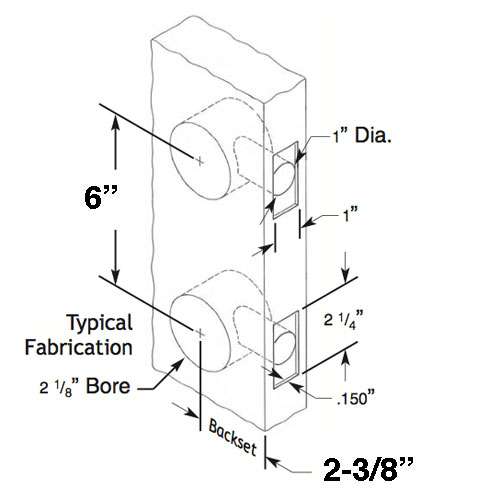

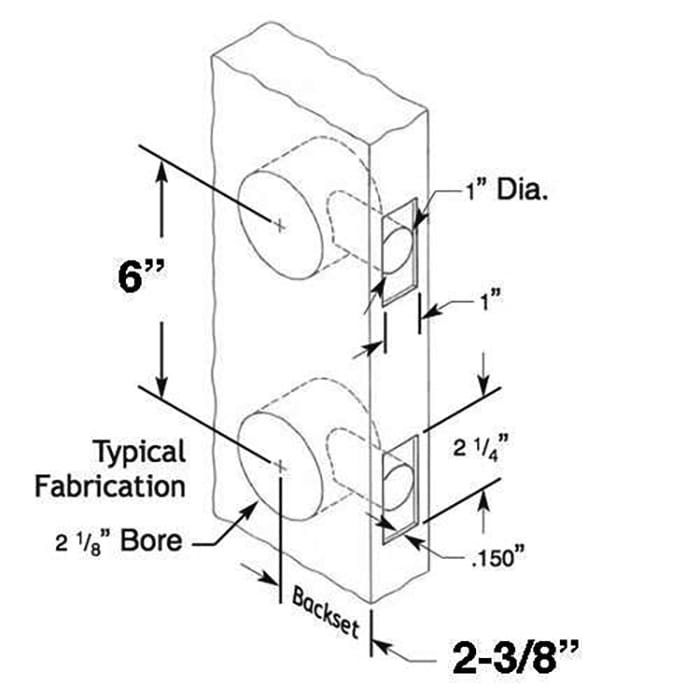

Guide to Door Lock Measurements

Additional Resources:
Article: How to Replace the Bushing on Patio Door Handlesets
Video: How to Replace the Bushing on Patio Door Handlesets
