16mm AGB Unitop Multipoint Lock 50/92 with 3 Roller Cams Stainless Steel
Use the arrows or swipe left to view all images for this product
16mm AGB Unitop Multipoint Lock 50/92 with 3 Roller Cams Stainless Steel
Part Number: $231.6016mm AGB Unitop Multipoint Lock 50/92 with 3 Roller Cams Stainless Steel
AGB Unitop activates by lifting handle, Deadbolt extends and bottom rollers move down and top roller moves up.

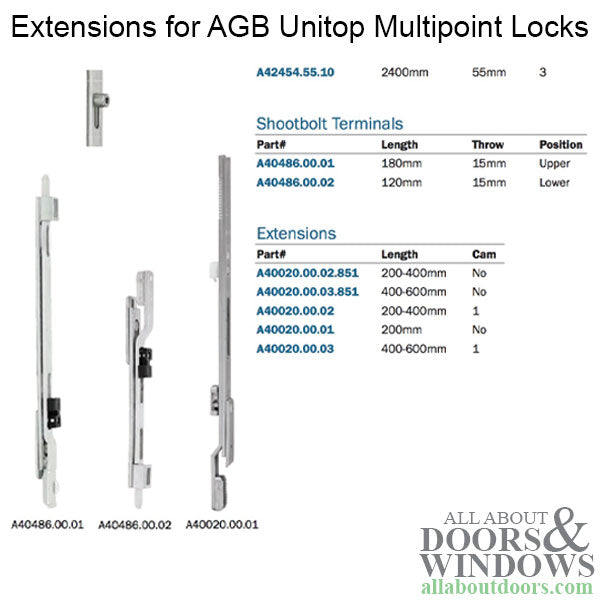

Basic unit comes with 3 cams (can cut ones you don't want) can add additional 4th cam with extension.
Brand: AGB
Faceplate Width: 5/8 inch (16mm)
Cylinder Type: Euro Profile
Backset: 2 inch (50mm)
Handle - Cylinder PZ: 3-5/8" (92mm)
Handle Height: 41-5/16 inches with Shootbolt is attached, Adjustable, may be cut down
Key Position: Below lever
Locking Device: Roller cams

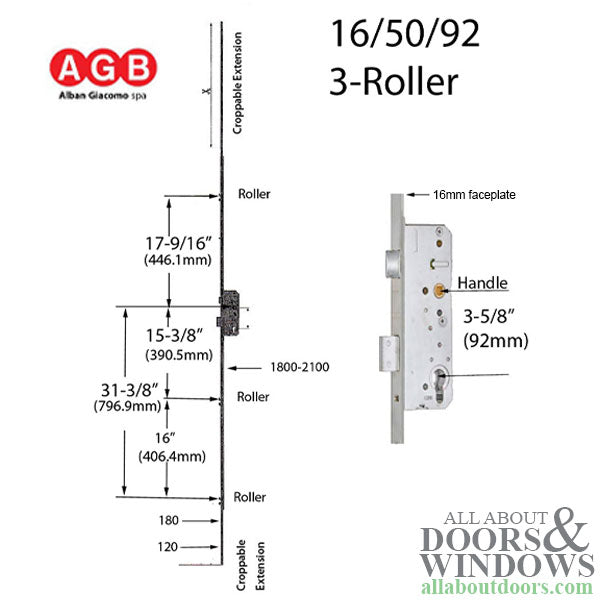

Overall Faceplate Length: 75-5/8 inch
Top Roller: 17-9/16 inches (446.1mm)
Bottom Roller, First: 15-3/8 inches (390.5mm)
Bottom Roller, Second: 31-3/8 inches (796.9mm)
Door Heights: 70.866 - 82.667 inches (1800-2100mm)
Markings on Faceplate: AGB 455, 92, 120, 180, 1800-2100
To Change Handing: Push in from back on latch, spin around
