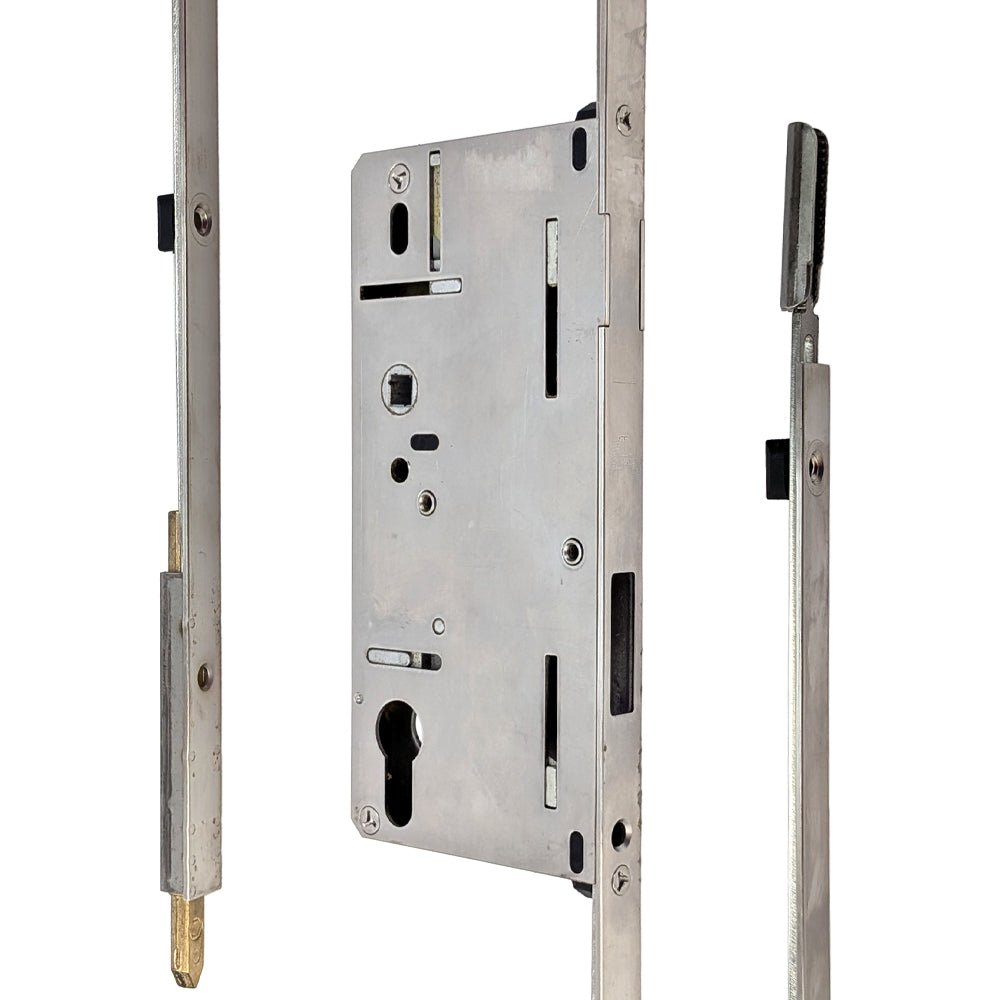

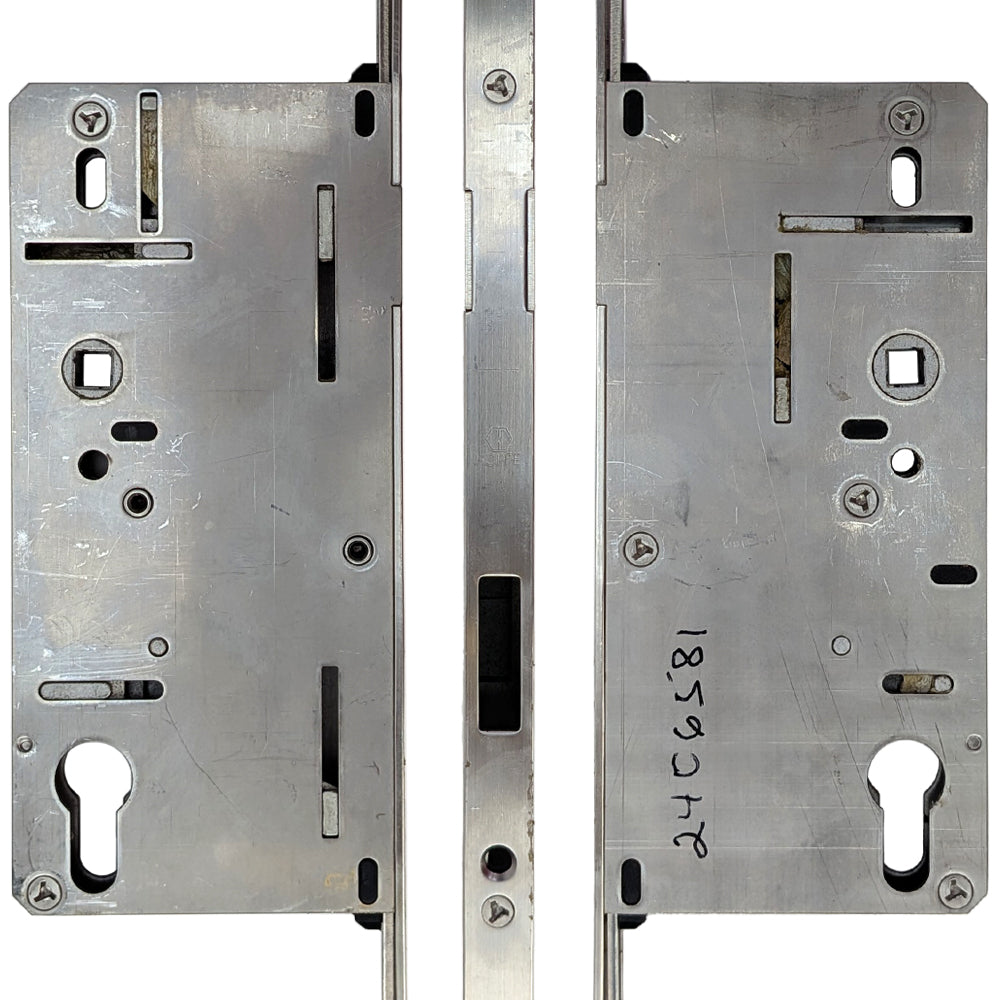

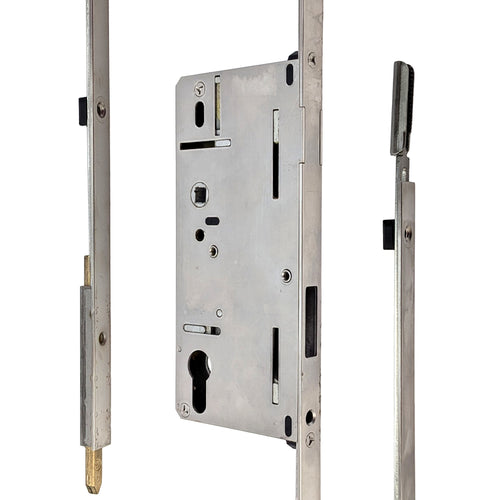

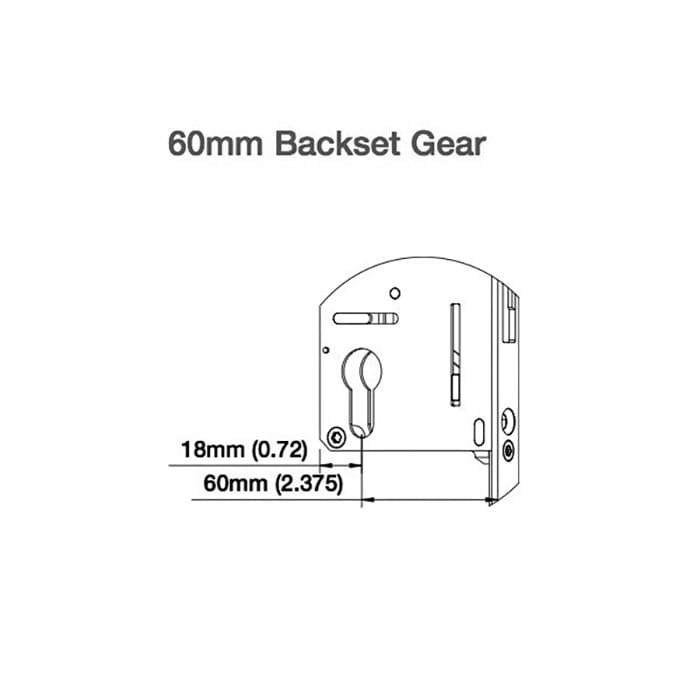

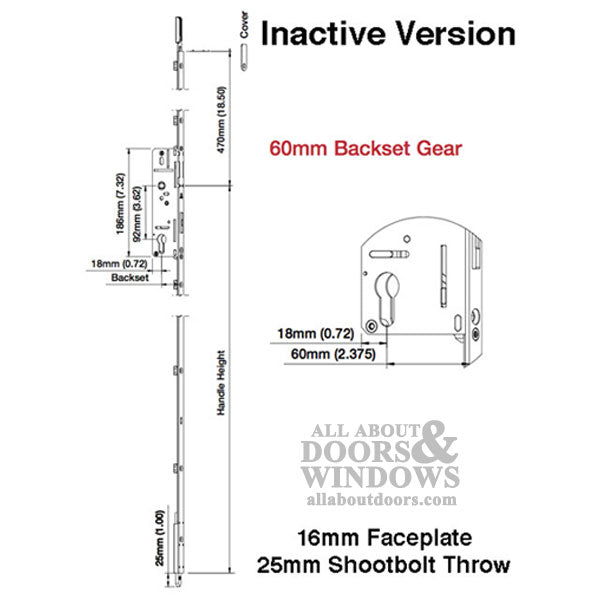

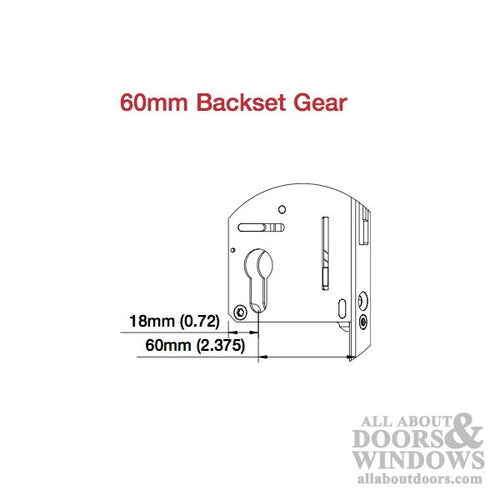

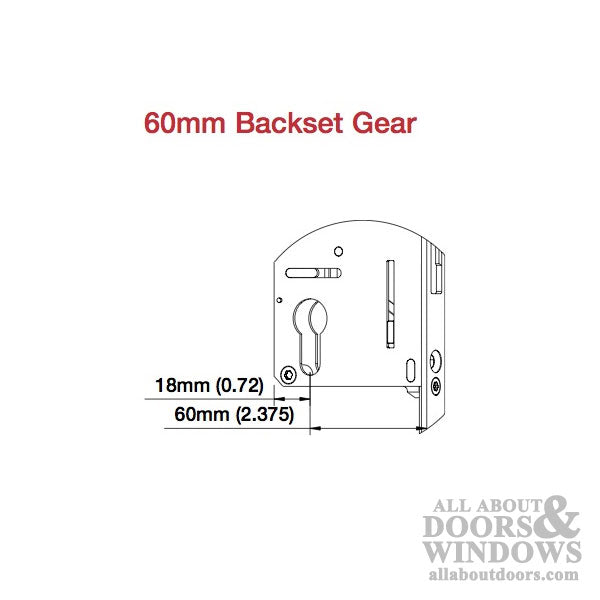

Hoppe 70/92 Bottom Gear
For 16/25 Inactive Version
Part of 2-piece multipoint lock that uses shootbolt with 1 inch (25mm) throw.
This is the bottom gear for 2-piece version needs 1 top extension and 1 cover plates to complete inactive shootbolt. See related items below.
-
Lock Type: Bottom Gear with shootbolt attached
-
Faceplate Width: 16mm (5/8 inch)
-
Backset: 70mm (2-3/4 inches)
-
PZ (Distance from center-of-handle to center-of-cylinder): 92mm (3-5/8 inches)
-
Handle Height: 914.5mm (36 inches)
-
Shootbolt Throw: 25mm (1 inch)
-
Number of Screws: 9
This 2-piece bottom gear is for sizes with standard 36 inch handle height.
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Hoppe Bottom Gear for 16/25 Inactive version; Part of 2-Piece Multipoint lock that uses shootbolt with 1 inch (25mm) throw;</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">This is the bottom gear for 2 piece version needs 1 top extension and 1 cover plates to complete Inactive Shootbolt.</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">This 2 piece bottom gear is for sizes with standard 36 inch handle height. </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Faceplate: 5/8 inch (16mm) </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Backset: 2.75 (70mm) </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Handle Height: 36 inch (914mm)</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Type: Bottom Gear with shootbolt attached</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Shootbolt Throw: 1 inch (25mm)</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Number of Screws: 9</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Related Parts:</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">2875118 - Cover plate for connection</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">8785695 - 1-3/8 inch (35mm) stainless steel Installation screw for wood door, 8mm head</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">2024962 - Socket Strike for 1 inch throw - Brass</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">2074564 - Backset: 1-3/8 inch (35mm) 20mm Shootbolt Throw, Inactive Gear w/ 36" HH</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">1997447 - Backset: 1-3/4 inch (45mm) 20mm Shootbolt Throw, Inactive Gear w/ 36" HH</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">2406557 - Backset: 2-3/8 inch (60mm) 20mm Shootbolt Throw, Inactive Gear w/ 36" HH</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">2406565 - Backset: 2-3/4 inch (70mm) 20mm Shootbolt Throw, Inactive Gear w/ 36" HH</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">2406936 - Cylinder screw for 60mm or 70mm backset</p>
