Hoppe HLS9000  Tongue & Shootbolt version Multi-Point lock  ( 1 of 3 Pieces when making a complete lock )
Bottom/ Lower section of a 5-point lock.  HL S9000 MP Manual Gear, 90057 Tongue Version for Active Door.

Faceplate width 5/8 inch (16mm),

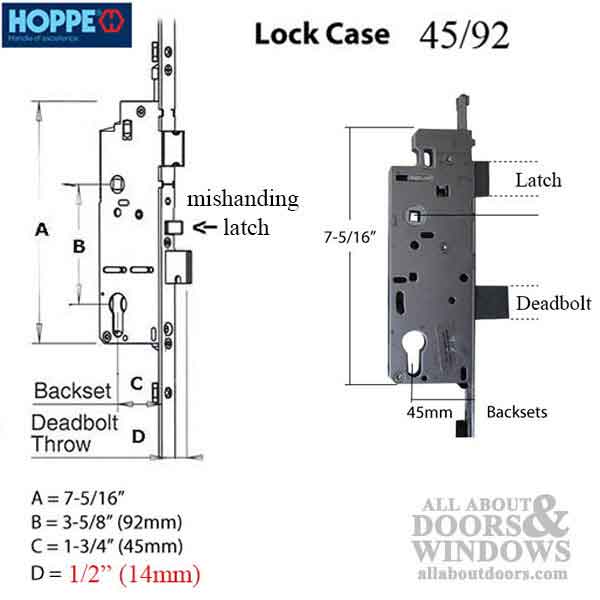

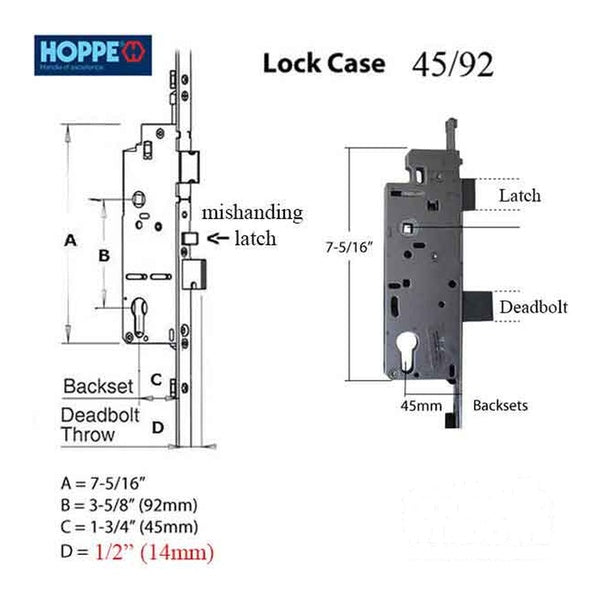

Backset 1-3/4  inch (45mm),
Deadbolt throw  1/2 inch  (14mm) .55 inch
Handle Height 36 inches (914mm),

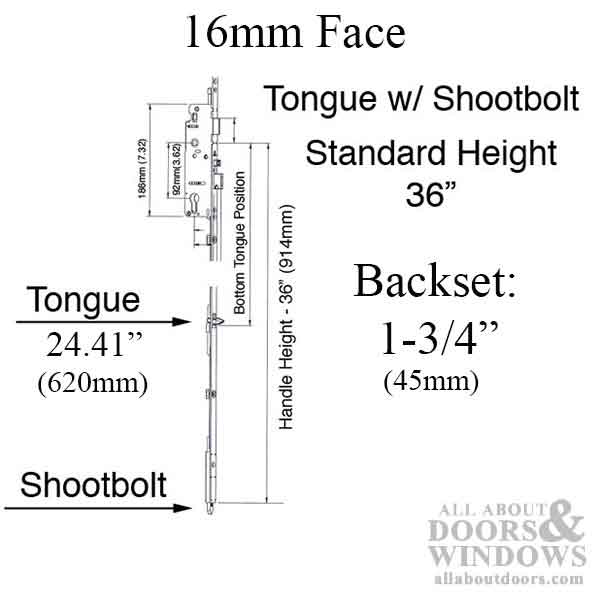

Bottom Tongue Position 24.41 inches (620mm),
Maximum Cutoff  N/A
Number of screws 6


Note:

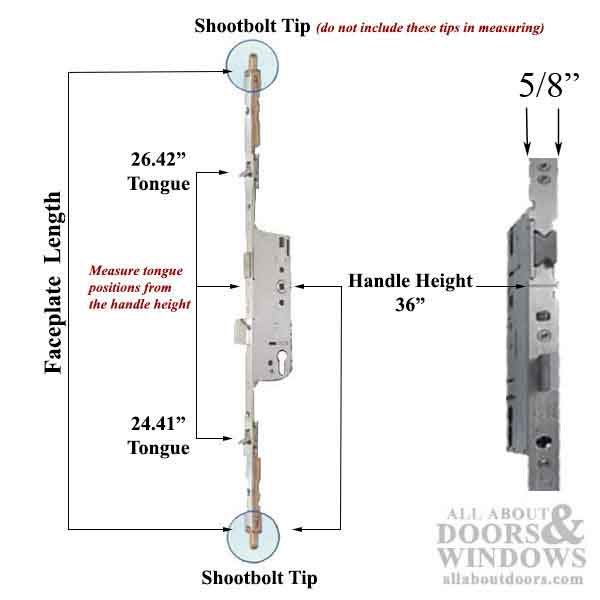

 A complete 5-point lock is comprised of a lower assembly, middle extension and top shootbolt
The locking positions change depending on door height and customer needs.
