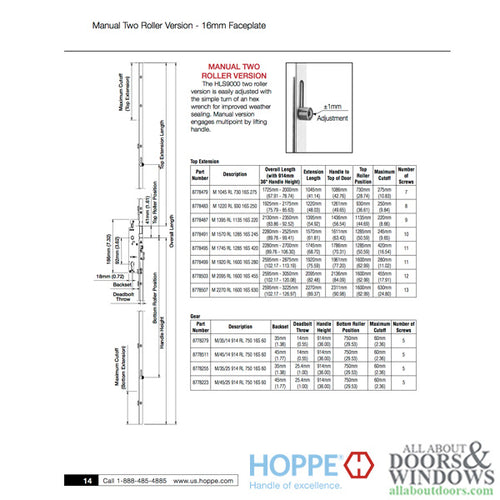

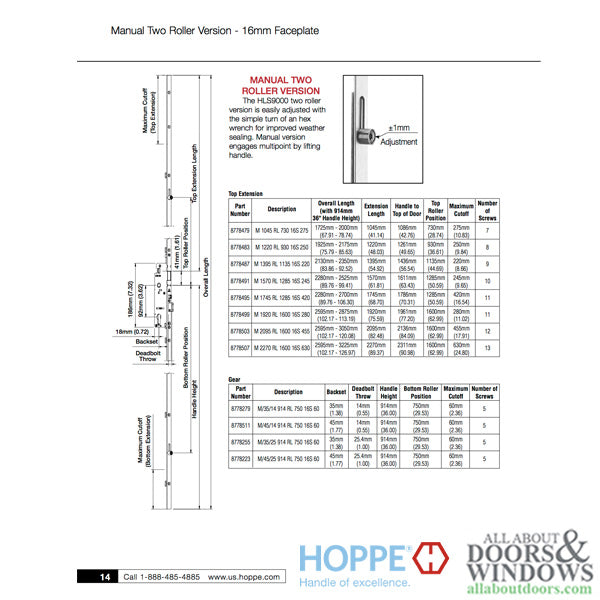

Hoppe HLS9000 Manual Two Roller Version, Bottom Gear for Active Door
Faceplate Width: 5/8" (16mm),

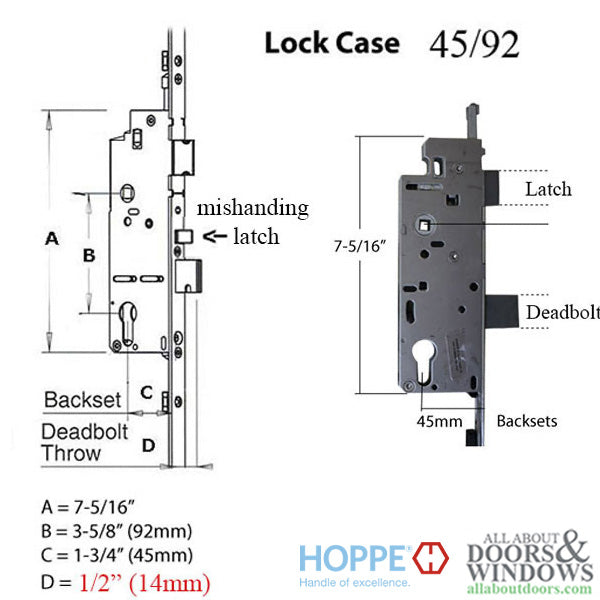

Backset: 1.77" (45mm),
Deadbolt Throw: .55" (14mm),

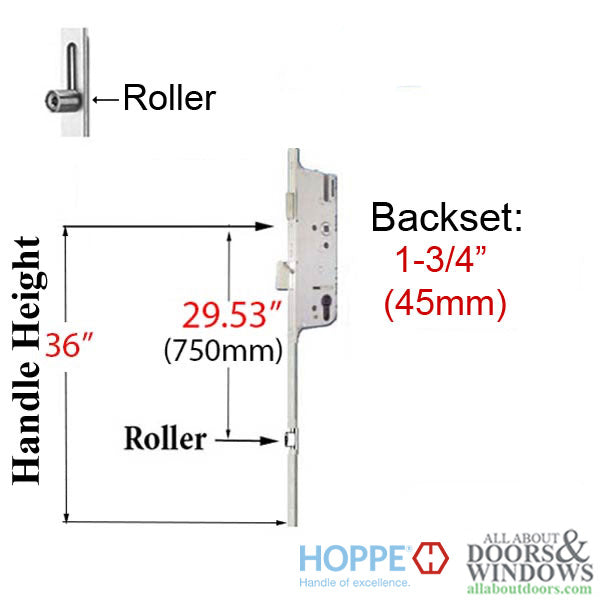

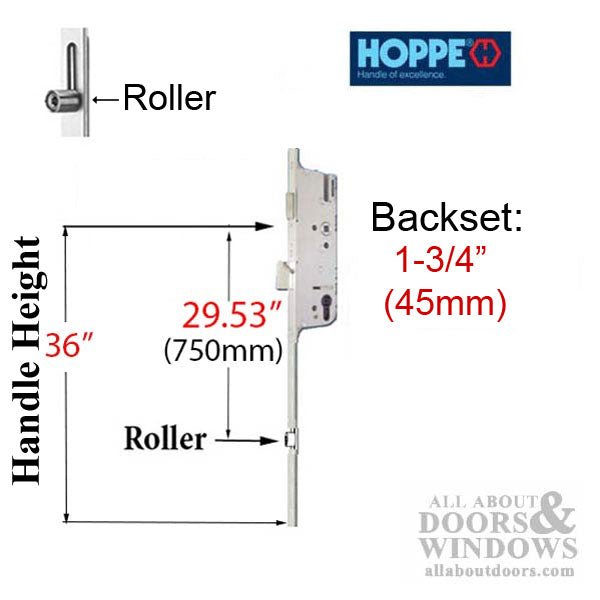

Handle Height: 36" (914mm),

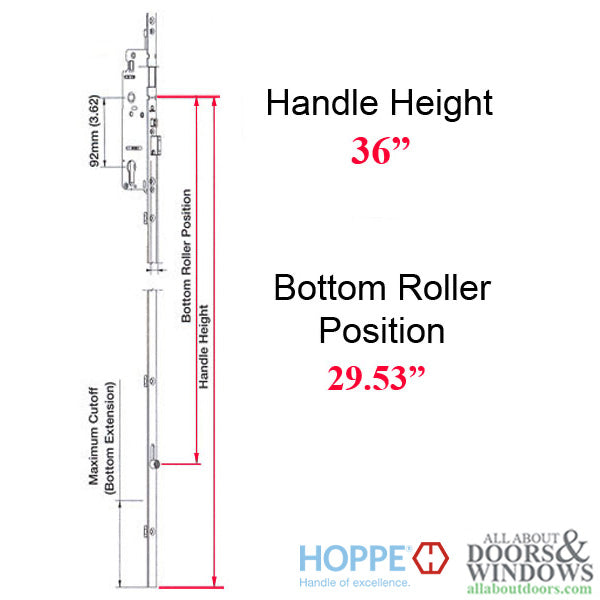

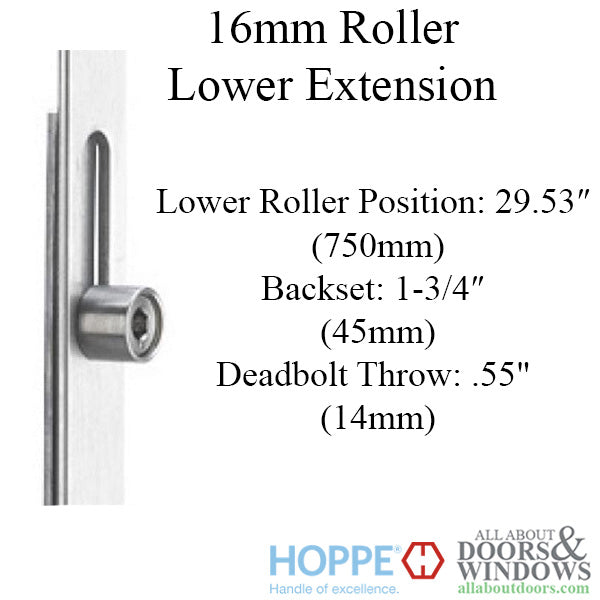

Bottom Roller Position: 29.53 (750mm),
Maximum Cutoff: 2.36" (60mm),
Number of Screws: 5
Related Multipoint Lock Hardware:8778511: 1/2" Deadbolt Throw- Stock Item
8778223: 1" Deadbolt Throw
8785695: 1-3/8" Stainless Steel Screw
HURD 78" Door, Top Extension #
8778483 Roller @36.61"
HURD 93" Door, Top Extension #
8778491 Roller @50.59"
Note: The old Automatic top extension will work with the new Manual SS Bottom Gear To insure you select the correct Multipoint Lock please see our
Multipoint Lock Glossary Of Terms If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock WorksheetWhen completed, please send it to us
hereRelated Articles:
Change/Reverse Handing of a HOPPE Multi-point LockHow to Change/Reverese Mishandling DeviceRelated Videos:
How to Rehand HOPPE Multipoint LockHow to Connect a Top Extension to HOPPE Lockbox
