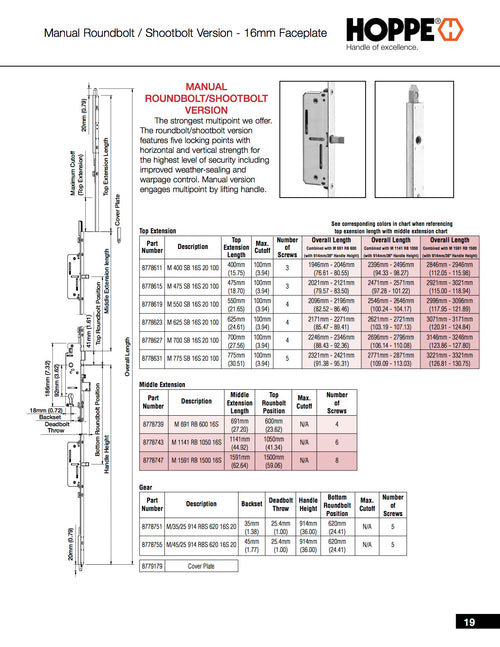

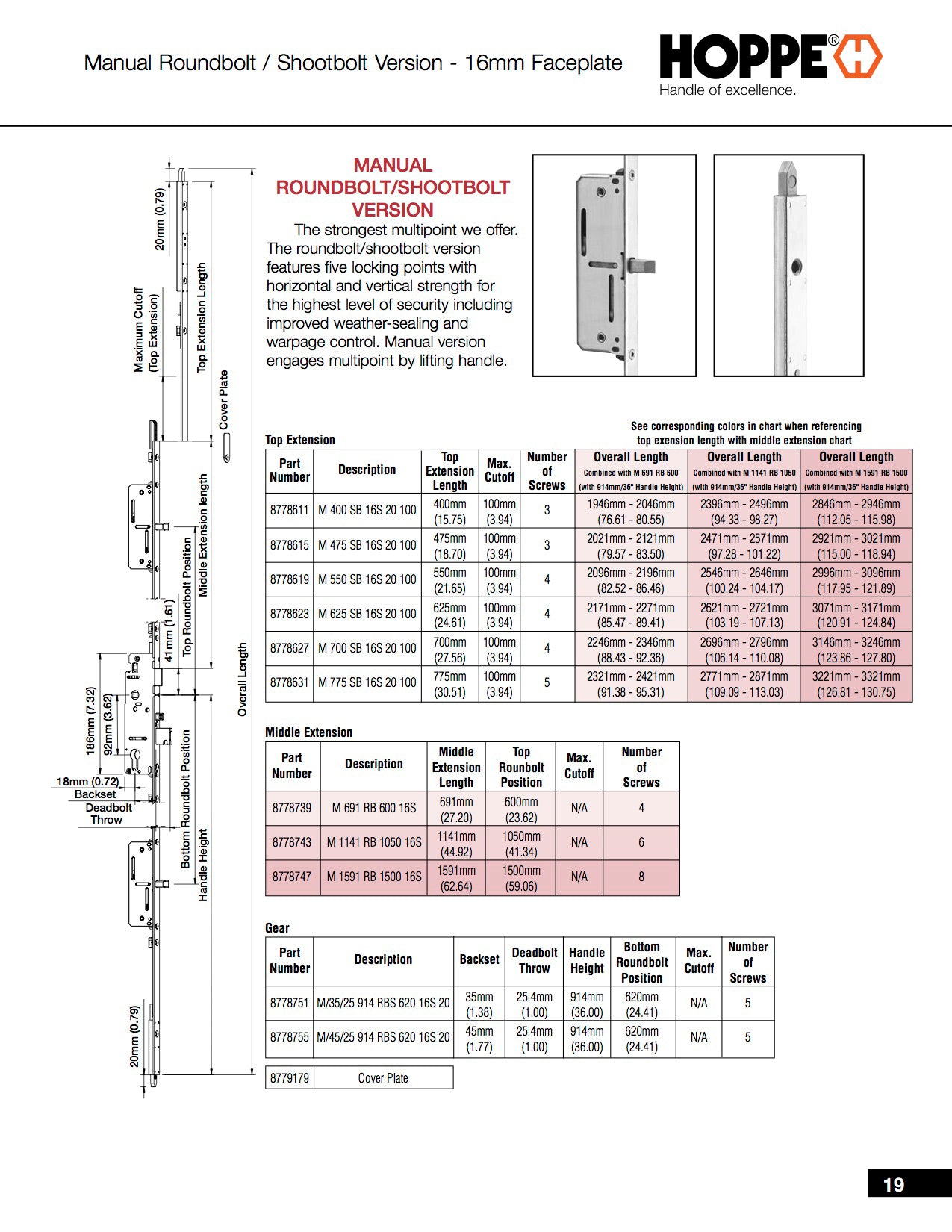

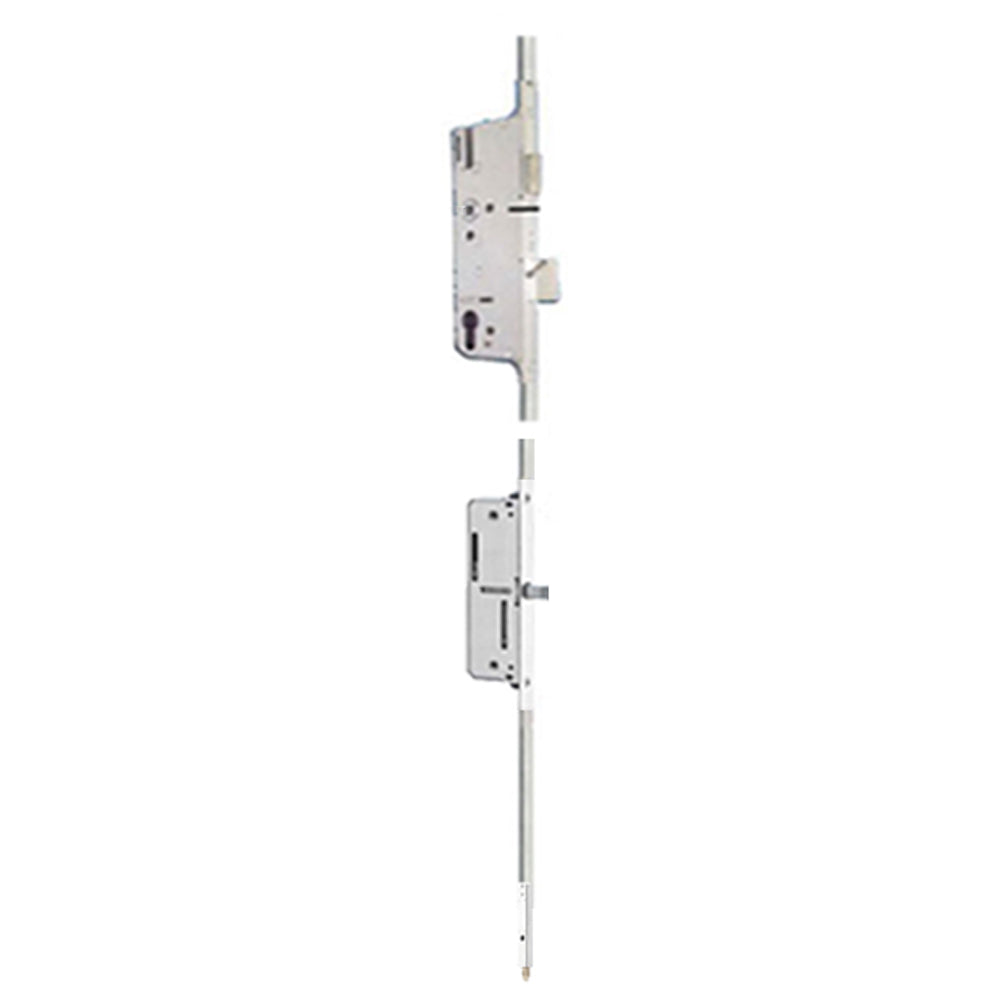

16mm Manual Gear, 45/92, Shootbolt, Roundbolt @ 24.41", 1" D
Part Number: Price: $231.28Hoppe Multi-Point Lock 16mm Manual Gear, Bottom Assembly
Facepplate Width: 5/8"(16mm),
Deadbolt Throw: 1" (25.4mm)

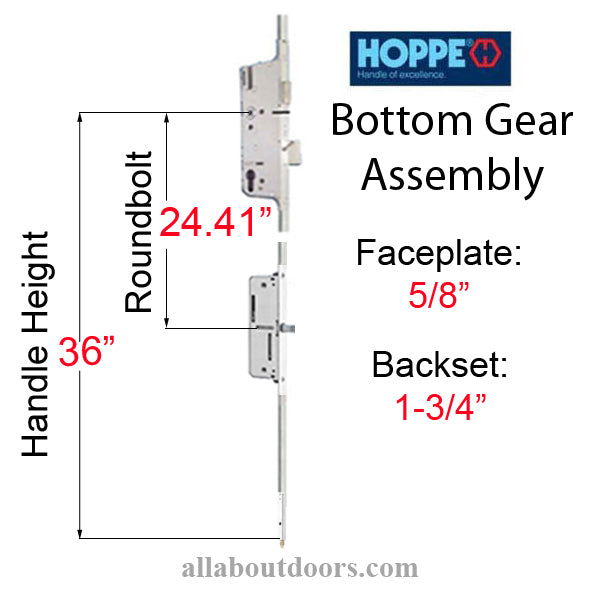

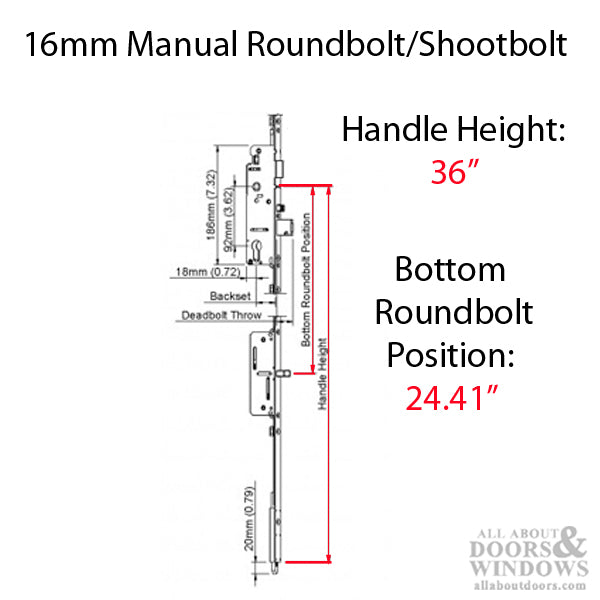

Backset: 1.77" (45mm) from edge of door to center of handle, Bottom Roundbolt Position 24.41 inches (620mm),
Handle Height: 36" (914mm),
Number of Screws: 5
Note: Spring loaded Latch and Mis-handing device can be reversed by pulling out and turning.
Facepplate Width: 5/8"(16mm),
Deadbolt Throw: 1" (25.4mm)
Backset: 1.77" (45mm) from edge of door to center of handle, Bottom Roundbolt Position 24.41 inches (620mm),
Handle Height: 36" (914mm),
Number of Screws: 5
Note: Spring loaded Latch and Mis-handing device can be reversed by pulling out and turning.
