16mm Manual Gear, 70/92, Tongue @ 29.65", 1" D/B

Part Number:2406397 Price: $203.56

Description
Additional Information

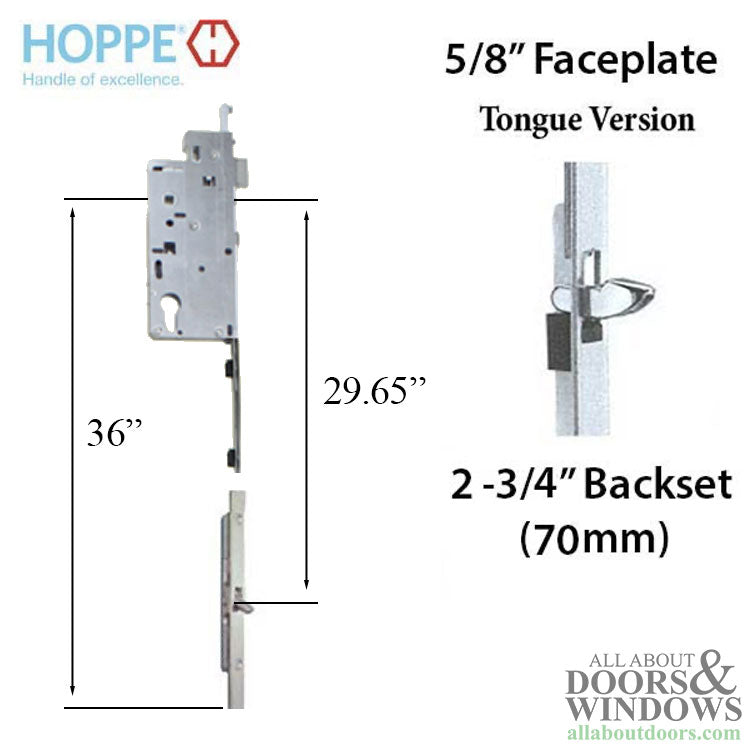

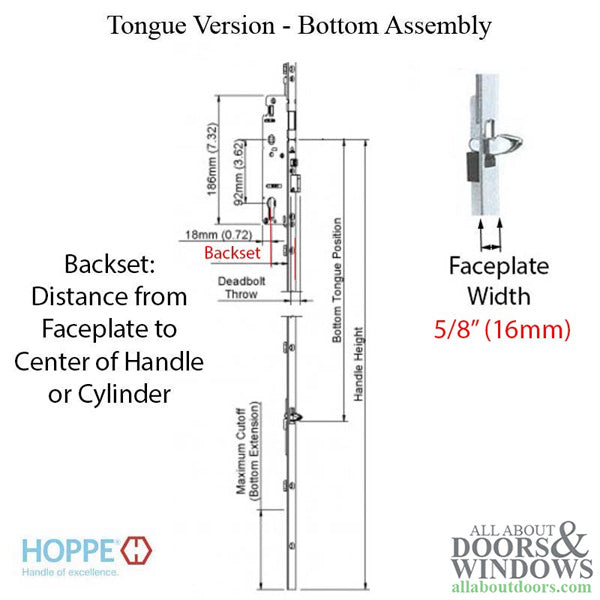

Hoppe HLS9000 16mm Manual 70/92 Gear, Tongue at 29.65", 1" Deadbolt, 36" Handle Height with Tongue Bottom Extension (Tongue Version, Multi-point Lock Bottom gear to be used with top gear)

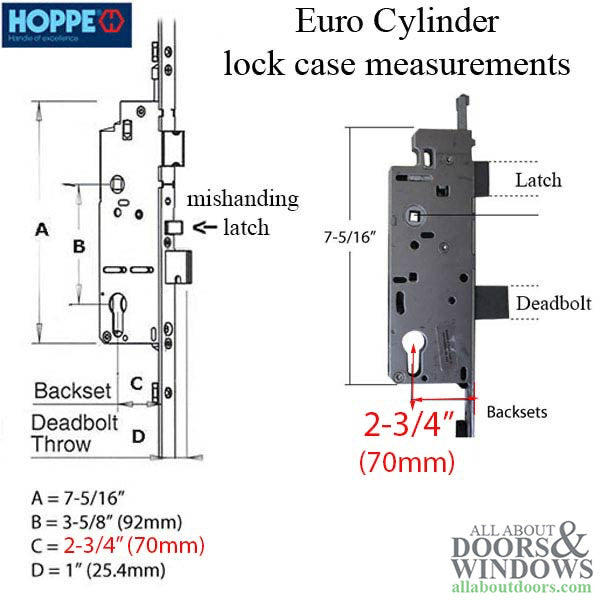

Backset: 70mm (2-3/4 inches)
Deadbolt Throw: 25.4mm (1 inch)

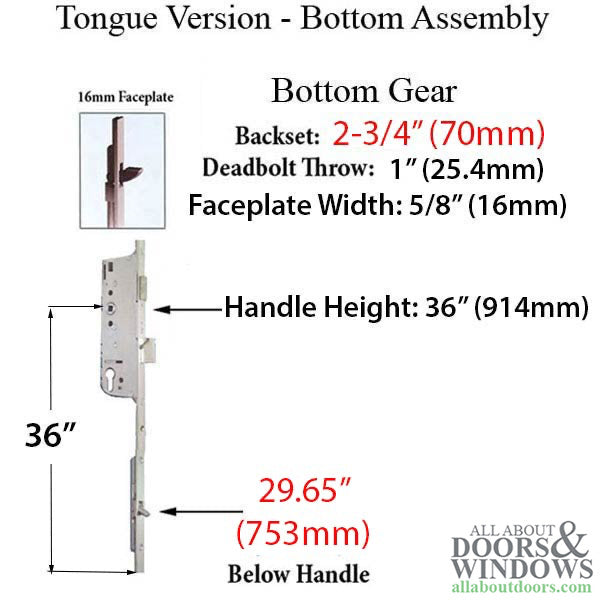

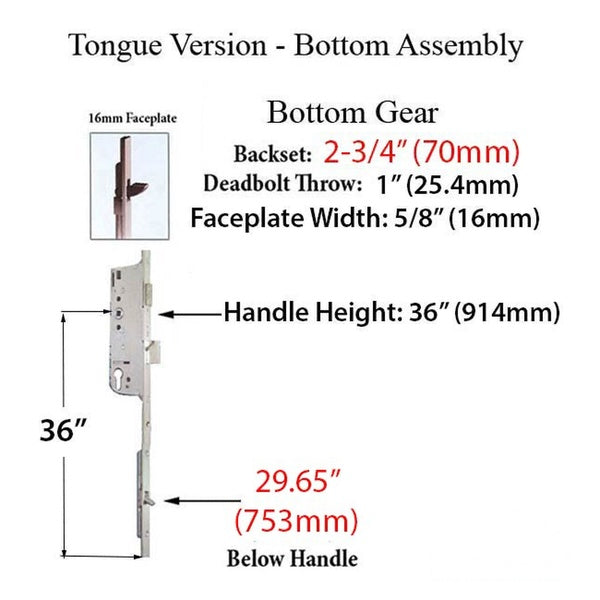

Handle Height: 914mm (36 inches)
Bottom tongue Position: 753mm (29.65 inches)
Maximum Cutoff: 30mm (1.18 inches)
Number of Screws: 5

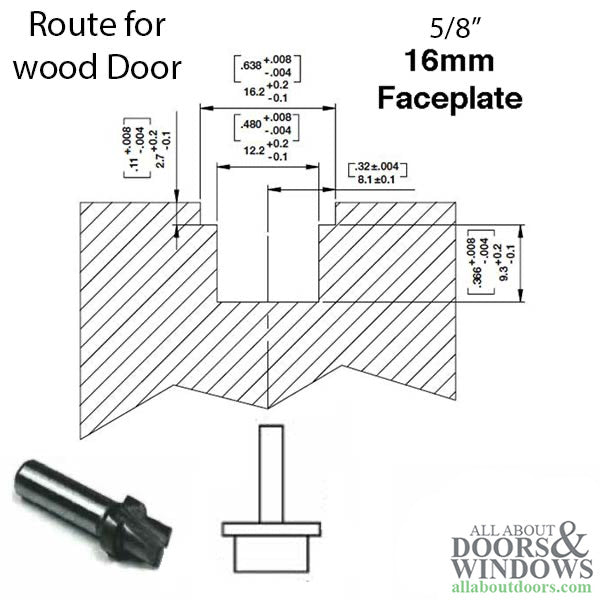

Faceplate Width: 16mm (.63 inches)

Hoppe HLS9000 16mm Manual 70/92 Gear, Tongue at 29.65", 1" Deadbolt, 36" Handle Height with Tongue <a href="https://www.allaboutdoors.com/lock-box-main-gear">Bottom</a><a href="https://www.allaboutdoors.com/lock-box-main-gear" target="_blank"> </a><a href="https://www.allaboutdoors.com/lock-box-main-gear">Extension </a><a href="https://www.allaboutdoors.com/multipoint-lock-locking-devices" target="_blank">(Tongue Version</a>, Multi-point Lock <a href="https://www.allaboutdoors.com/lock-box-main-gear" target="_blank">Bottom gear</a> to be used with top gear) <a href="https://www.allaboutdoors.com/backset" target="_blank">Backset</a>: 70mm (2-3/4 inches) <a href="https://www.allaboutdoors.com/deadbolt-throw" target="_blank">Deadbolt Throw</a>: 25.4mm (1 inch) <a href="https://www.allaboutdoors.com/handle-height" target="_blank">Handle Height</a>: 914mm (36 inches) <a href="https://www.allaboutdoors.com/multipoint-locking-positions" target="_blank">Bottom tongue Position</a>: 753mm (29.65 inches) Maximum Cutoff: 30mm (1.18 inches) Number of Screws: 5 Faceplate Width: 16mm (.63 inches)
