16mm Manual Middle Extension Shootbolt-Tongue @ 23.62", 29.53" Length
Use the arrows or swipe left to view all images for this product
16mm Manual Middle Extension Shootbolt-Tongue @ 23.62", 29.53" Length
Part Number: $70.88Hoppe HLS9000 16mm Multi-Point Middle Extension, Tongue / Shootbolt Version for active Door.

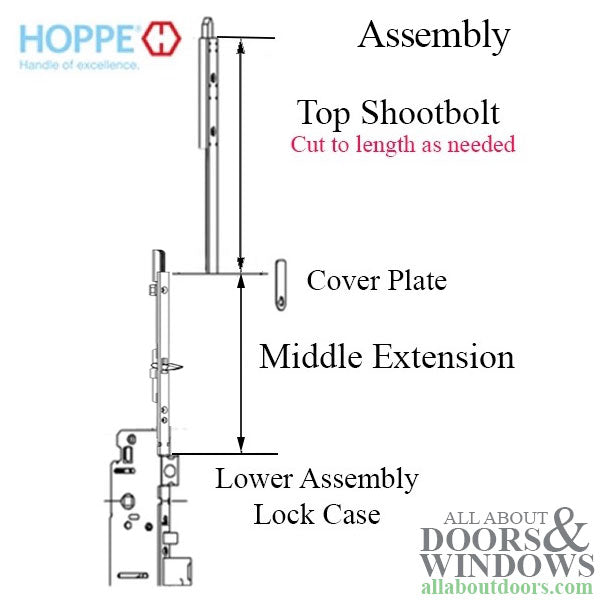

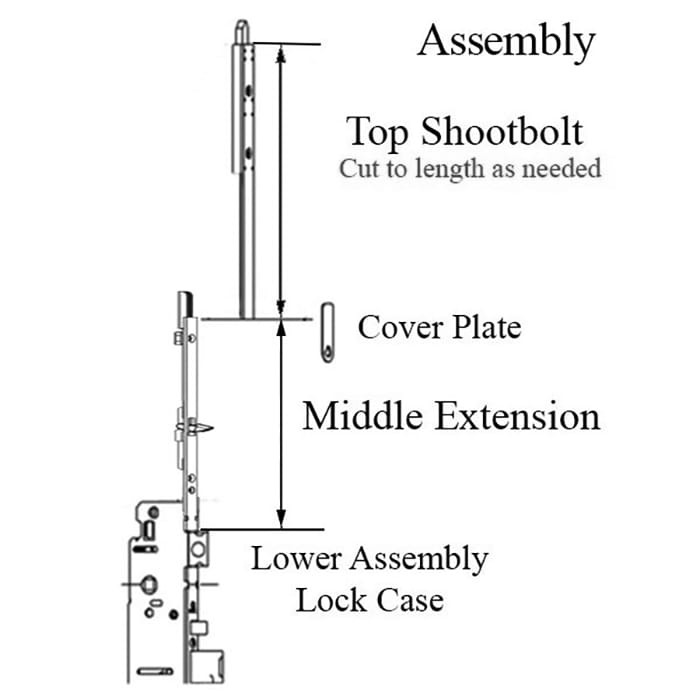

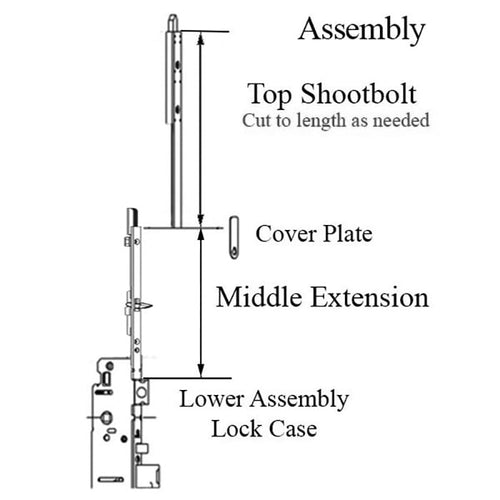

The Middle Tongue / Shootbolt extension is used with different Top extension to achieve overall door height.
The 8779139 is not a common size, used for special height doors.

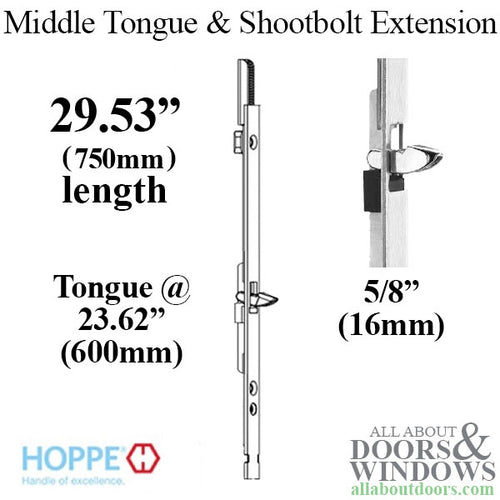

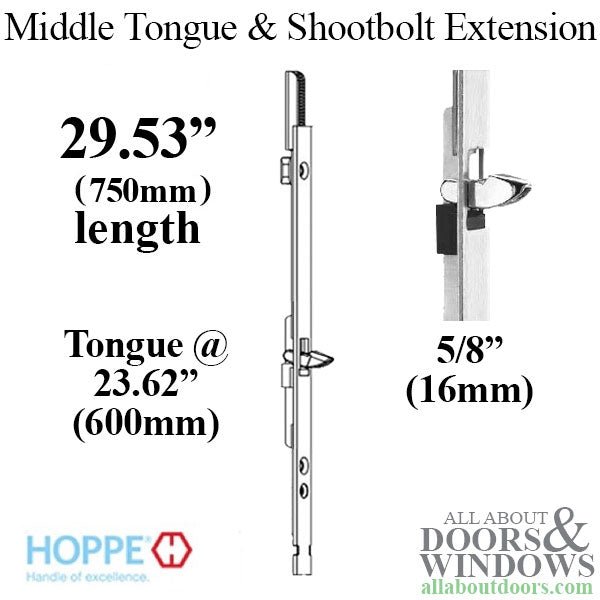

Faceplate: 5/8 inch (16mm),
Middle extension length: 29-1/2 inches (750mm) 29.53
Top Tongue position: 23-5/8 inches (600mm) 23.62
Cutoff: N/A
Number of screws: 4
Material: Stainless Steel
The Middle Tongue / Shootbolt extension is used with different Top extension to achieve overall door height.
The 8779139 is not a common size, used for special height doors.
Faceplate: 5/8 inch (16mm),
Middle extension length: 29-1/2 inches (750mm) 29.53
Top Tongue position: 23-5/8 inches (600mm) 23.62
Cutoff: N/A
Number of screws: 4
Material: Stainless Steel
Hoppe HLS9000 16mm Multi-Point Middle Extension, Tongue / Shootbolt Version for active Door.
The Middle Tongue / Shootbolt extension is used with different Top extension to achieve overall door height.
The 8779139 is not a common size, used for special height doors.
Faceplate: 5/8 inch (16mm),
Middle extension length: 29-1/2 inches (750mm) 29.53
Top Tongue position: 23-5/8 inches (600mm) 23.62
Cutoff: N/A
Number of screws: 4
Material: Stainless Steel
