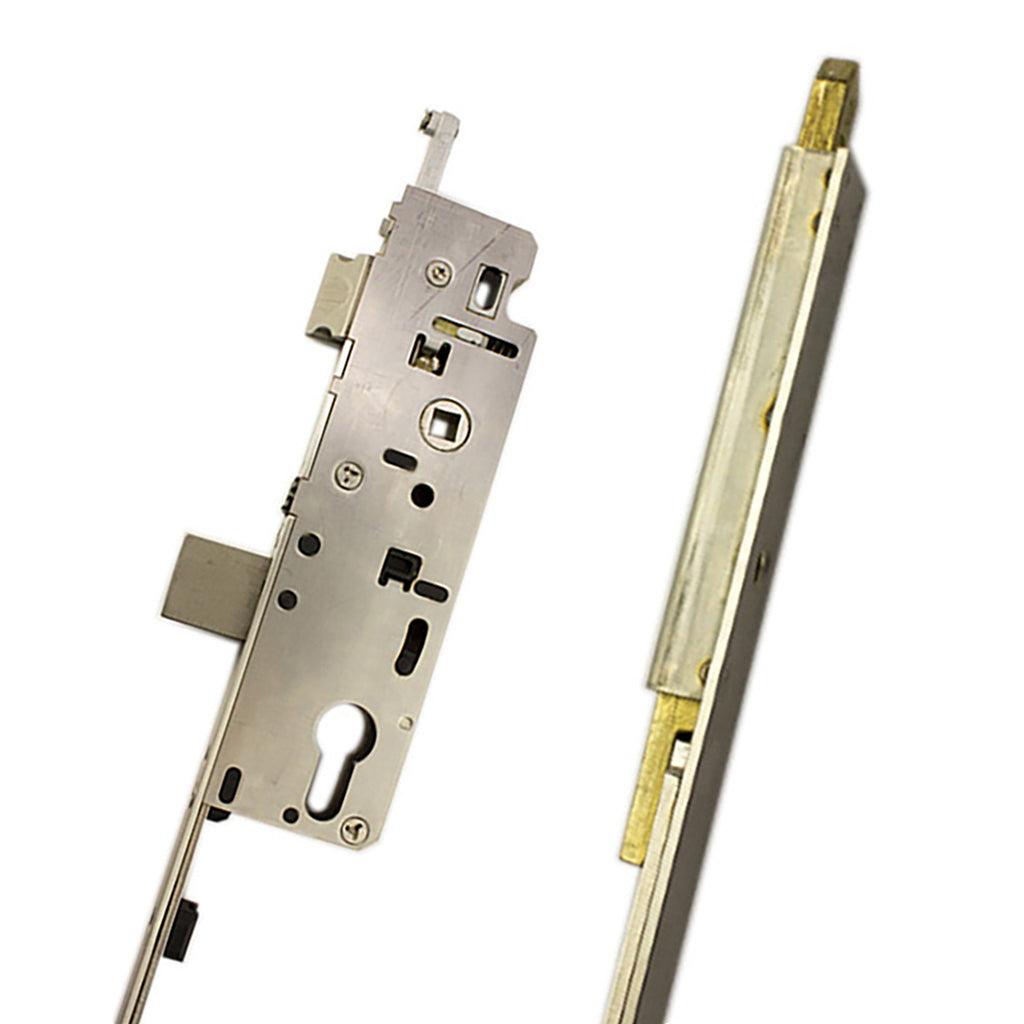

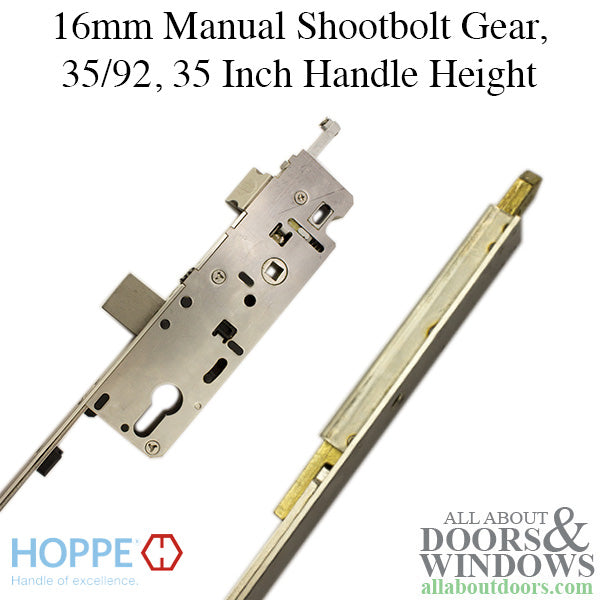

Bottom Gear, HLS9000 Shootbolt Version, Manual Locking for Active Door.
5/8 inch (16mm) Faceplate
1-3/8 inch (35mm) backset.
1 inch (25mm) Deadbolt Throw.

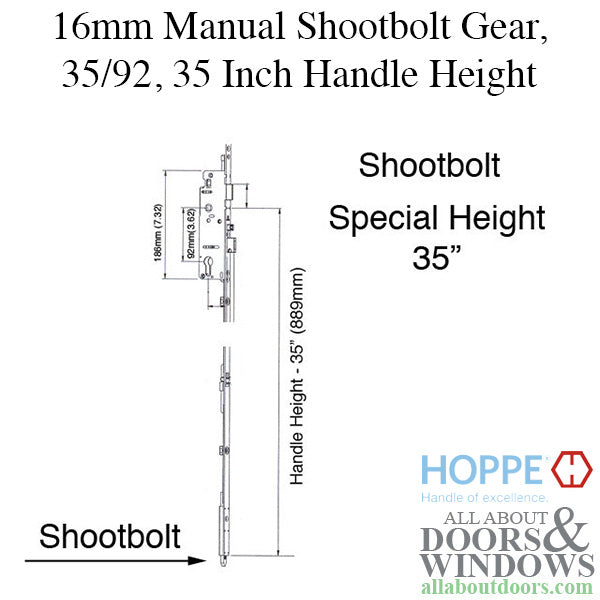

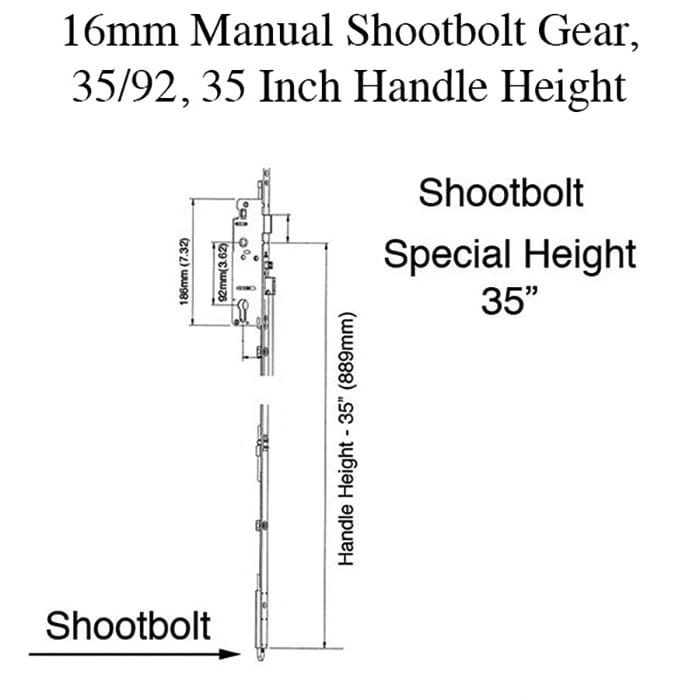

NOTE: This is for the 35 inch length - If 36 inch needed, order bottom gear 8778335
5/8 inch (16mm) Faceplate
1-3/8 inch (35mm) backset.
1 inch (25mm) Deadbolt Throw.
NOTE: This is for the 35 inch length - If 36 inch needed, order bottom gear 8778335
